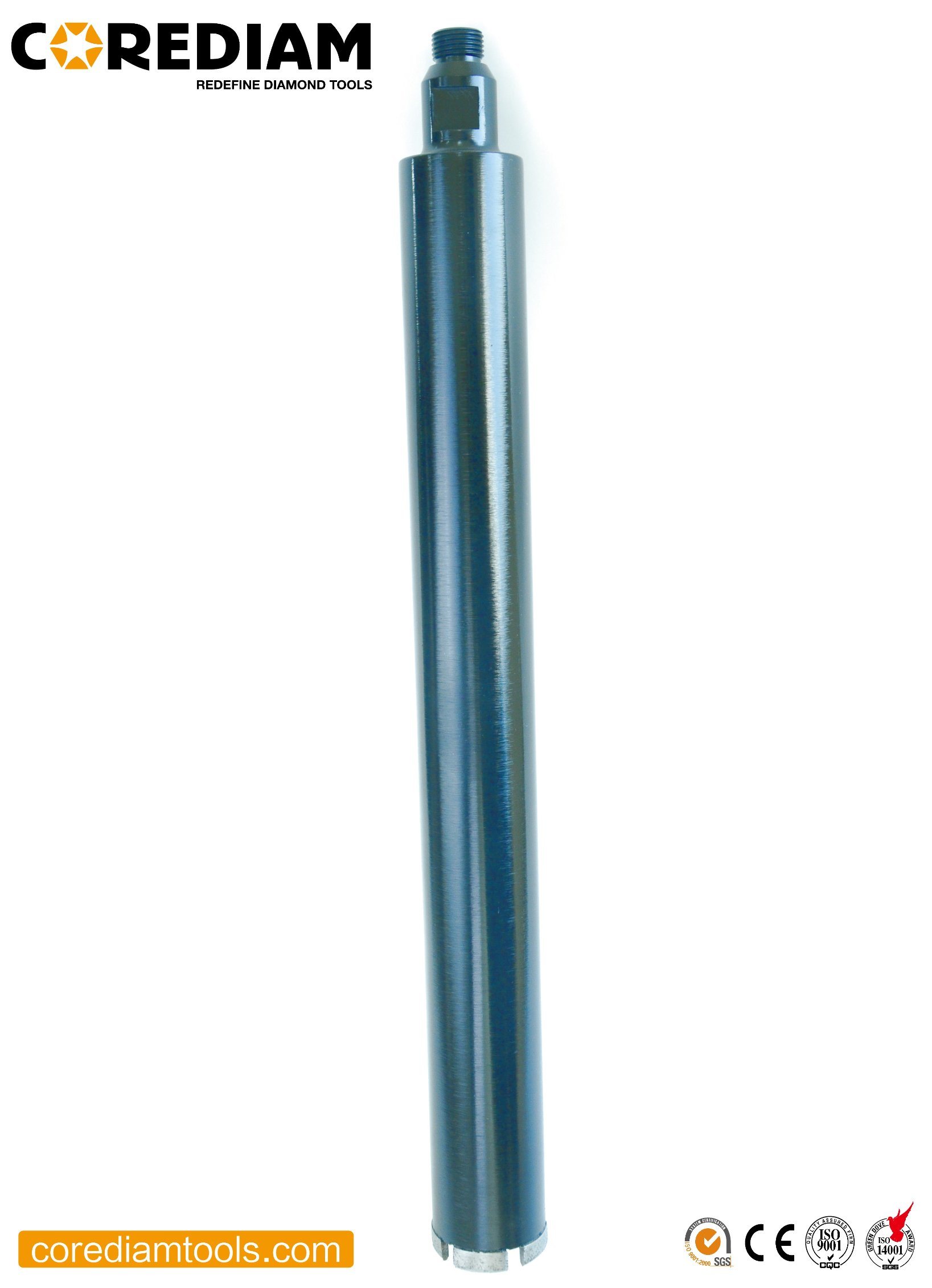

1. Laser welded wet core bit introduction
| Manufacturing | Laser welding |
| Diameter range | 25mm-350mm |
| Working length | 450mm, OEM working length accept |
| Adaptor | 1 1/4''UNC or 1/2''BSP |
| Application | Wet drilling reinforced concrete structures |
2.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA03245010 | 32mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA03645010 | 36mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA04245010 | 42mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA05245010 | 52mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA06245010 | 62mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA06645010 | 66mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA07245010 | 72mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA07645010 | 76mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA08245010 | 82mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA09245010 | 92mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA10245010 | 102mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA11245010 | 112mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA12745010 | 127mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA13245010 | 132mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA15245010 | 152mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA16245010 | 162mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA17245010 | 172mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA18245010 | 182mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA20045010 | 200mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA25045010 | 250mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA30045010 | 300mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDA35045010 | 350mm | 10 | 1 1/4"UNC / 1/2''BSP | 450mm |
3.Features
Manufacturer technology: Laser welding
Suitable: wet or dry drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: good segment sharpness, achieving fast drilling. Meanwhile, it have very reasonable lifespan.

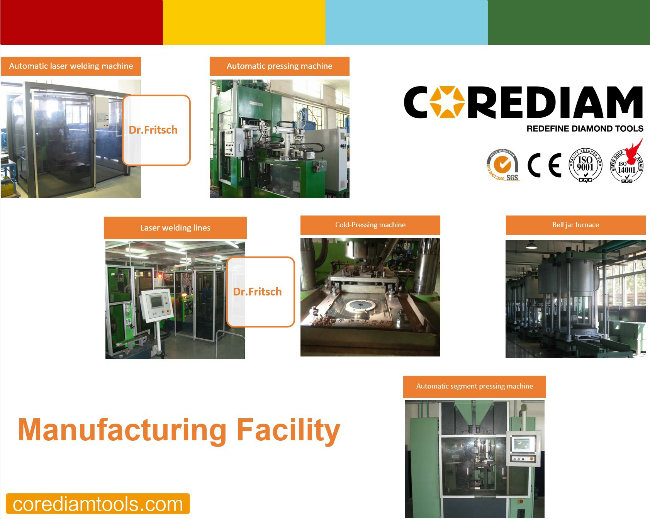

4.Corediam facility
5.Quality Control&Test
6.Delivery time&Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
7.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
