RO PUMPRO Boost PumpRO Diaphragm Boost Pump RO Self-priming PumpWater Treatmentwater purifier
T/T
SPECIFICATION

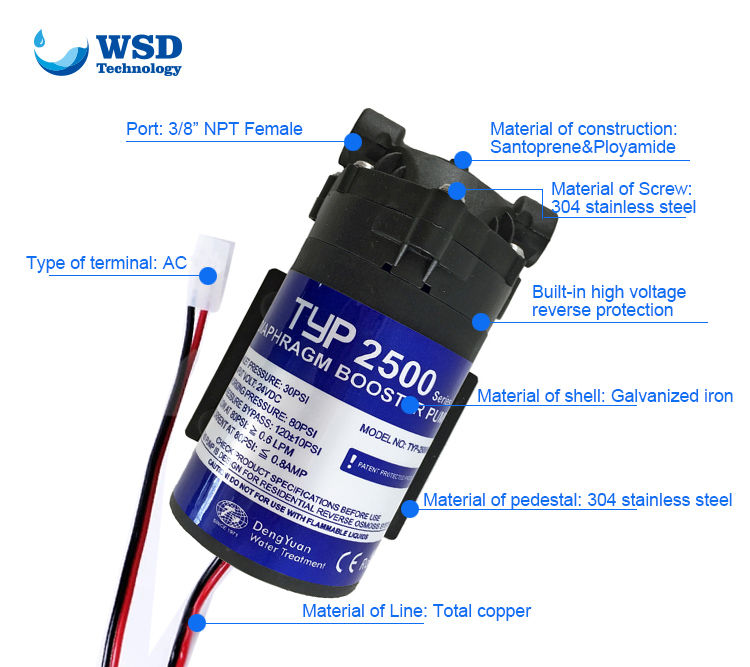

1. Product Name: RO booster pump
2. Capacity: 50~100GPD
TYP-2500NH | TYP-2766NH | TYP-2600NH | |
Input Voltage | 24VDC | 24VDC | 24VDC |
Working Pressure | 80PSI | 80PSI | 80PSI |
ByPass Pressure | 120±10PSI | 120±10PSI | 120±10PSI |
Flow at 80PSI | 0.6LPM | 0.8LPM | 1.0LPM |
Current at 80PSI | 0.75AMP | 0.85AMP | 0.95AMP |
Port:3/8" NPTF
Motor: Permanent Magnet DC motor
Suitable water temperature:5-45℃
Product Name | Diaphragm booster pump for RO purifier |
Input Voltage | 24VDC |
Working pressure | 80PSI |
Flow at 80PSI | 0.6LPM |
Current at 80PSI | 0.75AMP |
Inlet/Outlet connection | 3/8" NPTM |
Surface temperature raise | ≤50K |
Noise | ≤55 dB(A) |
Cyclic On-Off test | 100,000 times cyclic On-Off test |
Life time test | 2000 Hrs continually working test |
Burst pressure | ≥3.2MPa |
TEST CHARATERISTIC
The stated product performance is base on test conditions: Input24VDC, Inlet water pressure 30PSI and Outlet water pressure 80PSI
*Note: Performance will vary with variation in service voltage and transformer output.
