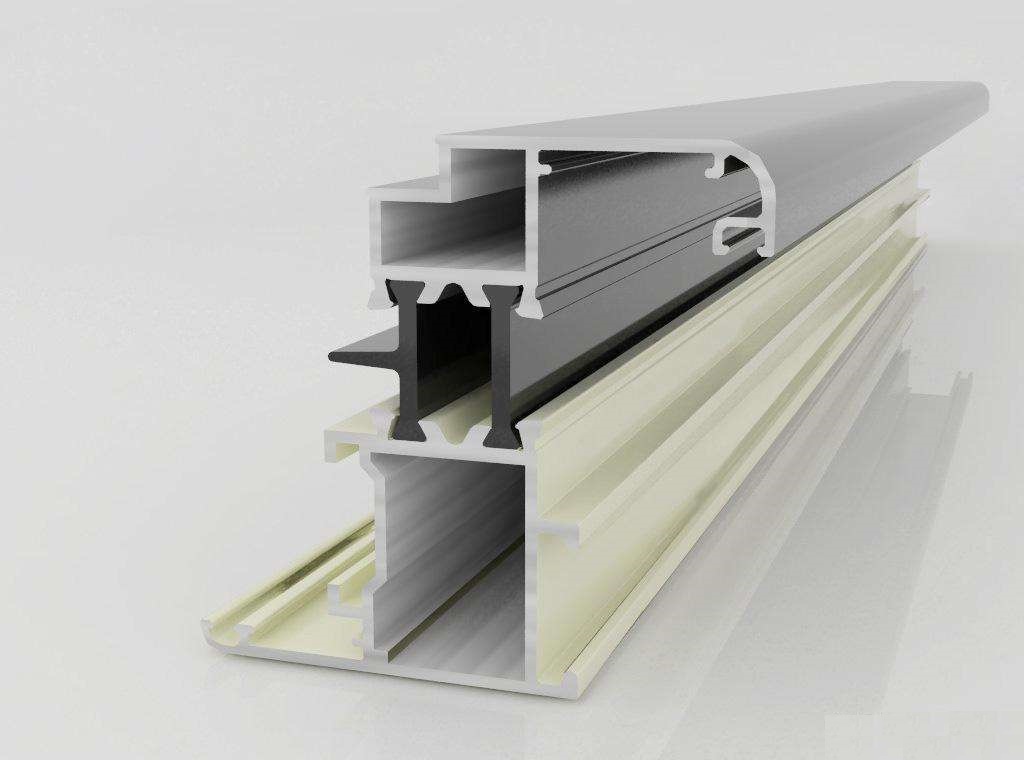

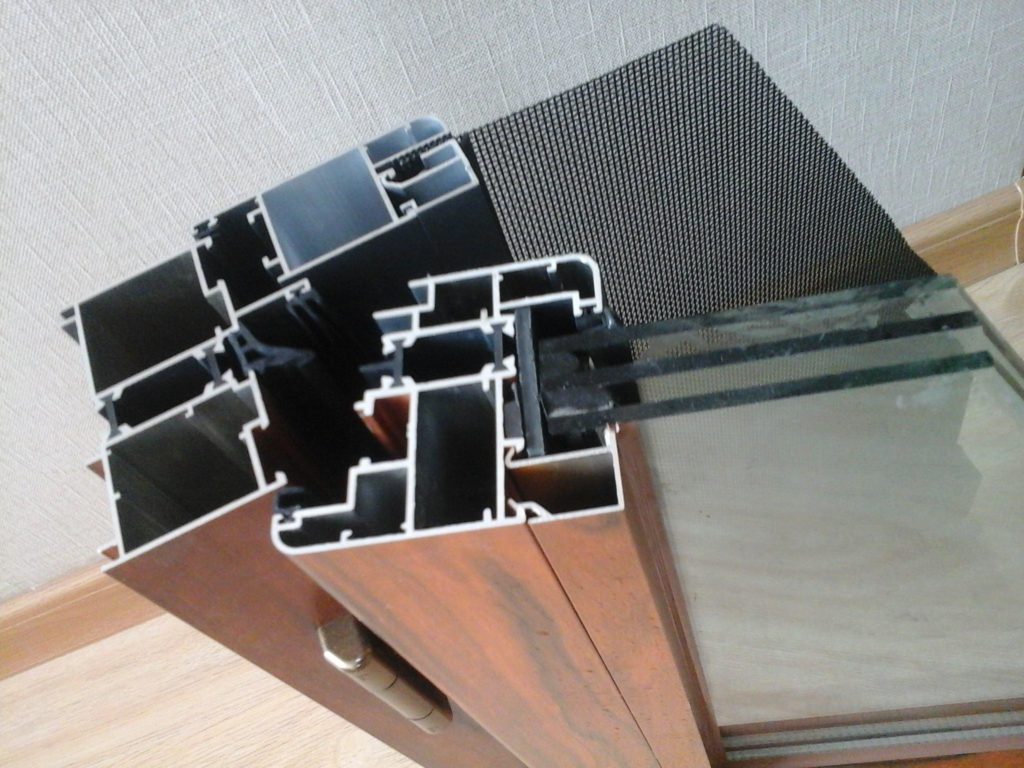

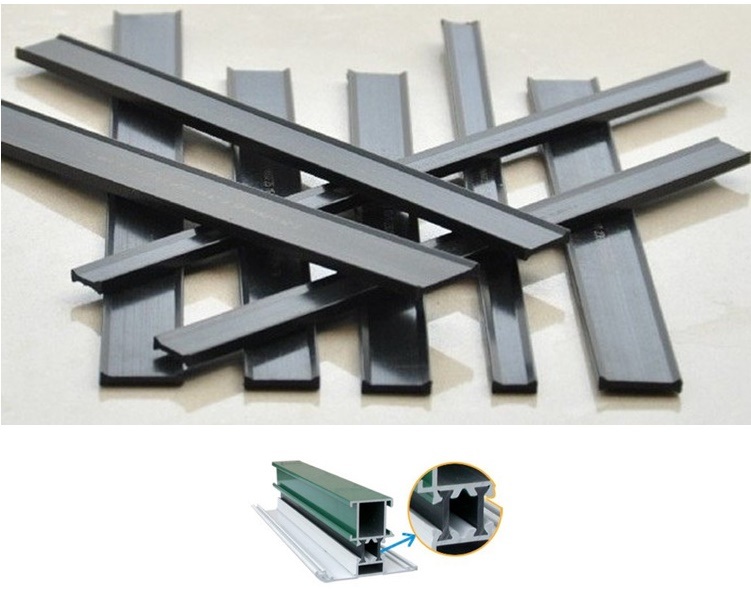

thermal break profilethermal profilewindow profileplastic profilepa66 profilepa66fiber glass profile
L/CT/T
| TEST ITEM | UNIT | standard | Test result | Conclusion |
| Density | g/cm3 | 1.3±0.05 | 1.32 | PASS |
| Axial stress cracking test | No crack | No crack | PASS | |
| Shore hardness | / | 80±5 | 82.7 | PASS |
| No gap impact strength | Kj/m2 | ≥35 | ≥132 | PASS |
| Room temperature longitudinal tensile eigenvalue | Mpa | ≥80 | 96 | PASS |
| modulus of elasticity | Mpa | ≥4500 | 4633 | PASS |
| elongation at break | % | ≥2.5 | 2.5 | PASS |
| Room temperature transverse tensile eigenvalue | Mpa | ≥70 | 106 | PASS |
| High temperature transverse tensile eigenvalue | Mpa | ≥45 | 58 | PASS |
| Low temperature transverse tensile eigenvalue | Mpa | ≥80 | 107 | PASS |
| Vicat Softening Temperature | oC | ≥230 | 246 | PASS |
| coefficient of linear expansion | K-1 | (2.3-3.5)*10-5 | 3.0*10-5 | PASS |
| Load (0.45MPa) deformation temperature | oC | ≥240 | 246 | PASS |
| Water resistance test (boiling water) | Mpa | ≥35 | 101 | PASS |
| Water resistance test (normal temperature sinking test) | Mpa | ≥35 | 93 | PASS |
| Heat aging test | Mpa | ≥50 | 65 | PASS |
