lifting cradleelectric cradleelectric cranesuspended platformlifting platformcradlecranecradles
L/CT/T
| Item | P250 | P500 | P630 | P800 | P800 s drive |
| Rated Loading | 250kgs | 500kgs | 630kgs | 800kgs | 1000kgs |
| Lifting Speed | ~9.5m/min | ~8.5m/min | ~8.3m/min | ||
| Platform size(L*W*H) | 2meters,2.5m, 5m , 6m ,7.5m ,8m or as your requirement | ||||

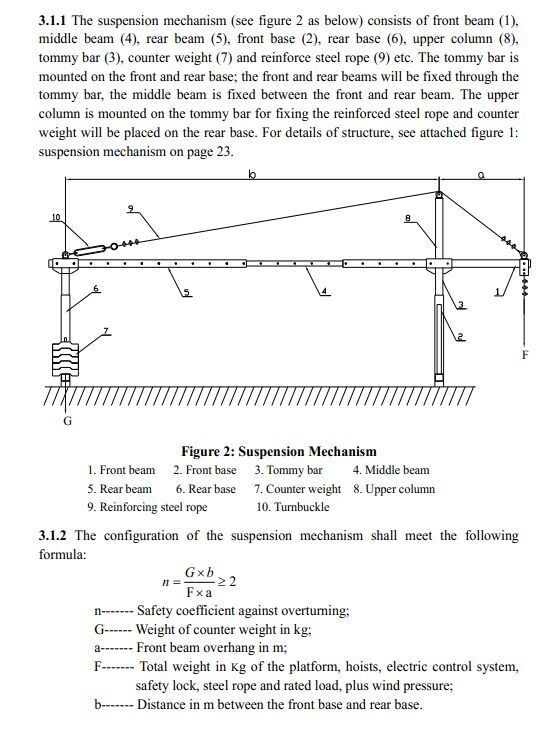

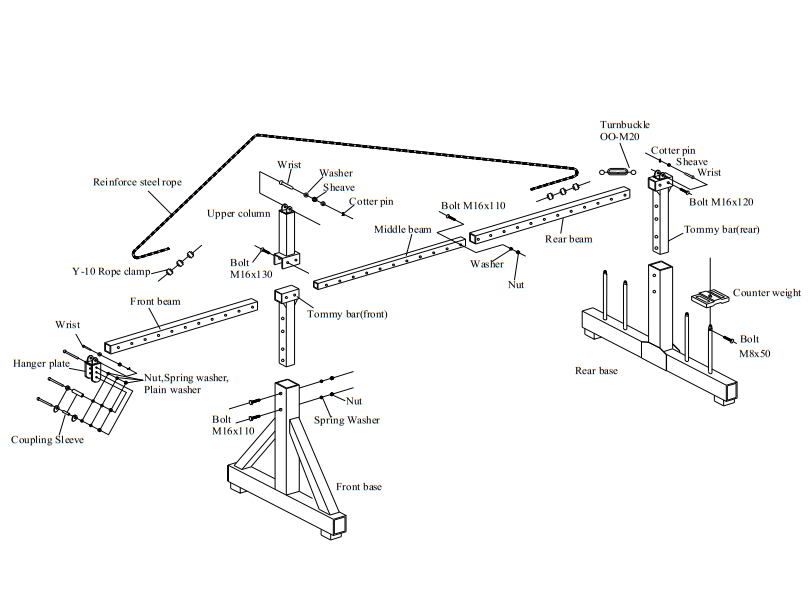

| Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m | |||
| Terrain clearance of front beam | 1.45m~1.75m | ||||
| Hoist | |||||
| Type | LTD63 | LTD80 a drive | LTD80 s drive | ||
| Voltage | 220v, 380v ,415v 50/60 Hz 3 phase | ||||
| Power | 1.5kw | 1.8kw ,2.0kw | 2.2kw | ||
| Speed | 1400 n/min1400n/min | ||||
| Safety lock | |||||
| type | LS30 | ||||
| Angle of tilted locking rope | 3°~8° | ||||
| Allowable impact force | 30KN | ||||
| Wire rope | |||||
| Type | 4*31SW+FC-φ8.3 Broken pulling force≥53500N | 4*31SW+FC-φ8.6 Broken pulling force≥62500N | |||
| Constrol panel | |||||
| Electric parts brand | CHNT | Schneider | |||
| Conter weight | ||
| Iron cast | Cement | Hot galvnized steel sheet with concrete |
