双组份透明绝缘防水硅凝胶Two component transparent insulating waterproof liquid silicone gel for electronics

SI2710 Two component transparent insulating waterproof liquid silicone gel for electronics

?Product Description

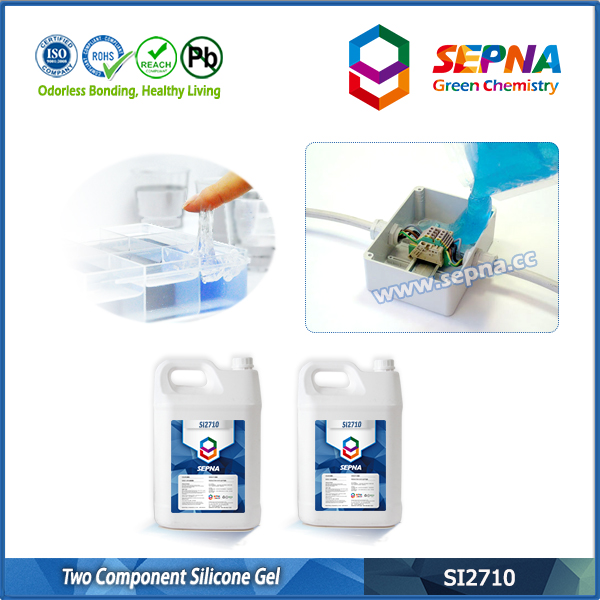

SI2710 is two-component transparent self-healing silicone gel, when cured it will become elastomer with buffer and self-recovery property. Used to isolate moisture and other noxious pollutant from contacting the circuit board, also used as dielectric of high voltage. The other usage is stress relief for protecting circuit and interconnect devices from high temperature and mechanical stress.

?Key Features

• 1. 1:1 addition type, good adhesive strength and self-healing

• 2. High elongation, excellent flexibility for mechanical stress relieving

• 3. Low oil penetration after cured, good anti-poisoning property

• 4. Good dielectric in high temperature for high voltage protection

• 5. Excellent aging resistance and weatherability

• 6. Excellent waterproof, corrosion prevention, moisture proof and chemical media resistance

•


?Typical Applications

Used for encapsulation of various modules, semi-conductor, IGBT, automotive ECU module, IC chip, weighing sensor, waterproof connector.

?Technical Data Table

Note：All above data were tested under standardized condition, or tested by further experiments

?Directions for Use

• 1. Mix Part A and Part B by 1:1 mass ratio, after evenly mixed, pouring directly into the components or modules as per requirements.

• 2. Still the potted component to let out the bubbles. It can be cured by heat, about 15mins in 80°C. It needs about 1 hours to cure under room temperature.

• l Vacuum defoaming can improve the performance of cured product.

• l Seal the remaining products tightly after use.

• l Low temperature will slow the curing speed; heat curing is recommended.

• l It's hard for SI2710 to cure if contact with sulfur, amine or Sn

•


?Packing and Storage

Part A—10 KG/Bucket, Part B—10 KG/ Bucket.

When stored at or below 25°C in the original unopened containers, this product has a usable life of 12 months from the date of production. Sampling test is necessary for products which exceed shelf life before taking use.

It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.

?Safety Operation Data

MSDS isn't included here. Please read TDS, MSDS and label carefully before operation. You can get MSDS from SEPNA or other distributors, or mail to service center sepna@sepna.cc, or call +86-400-882-1323.

?Warranty and Liability

All product properties and application details based on information believe to be reliable and accurate. But you still need to test its property and safety before application. The advices we supply don't apply in any circumstances. SEPNA don't make assurance of any other applications outside the specification until SEPNA supply a special written guarantee. SEPNA is only responsible to replace or refund if this product is defective within the warranty period stated above. SEPNA makes it clear that will not be liable of any accidents.
