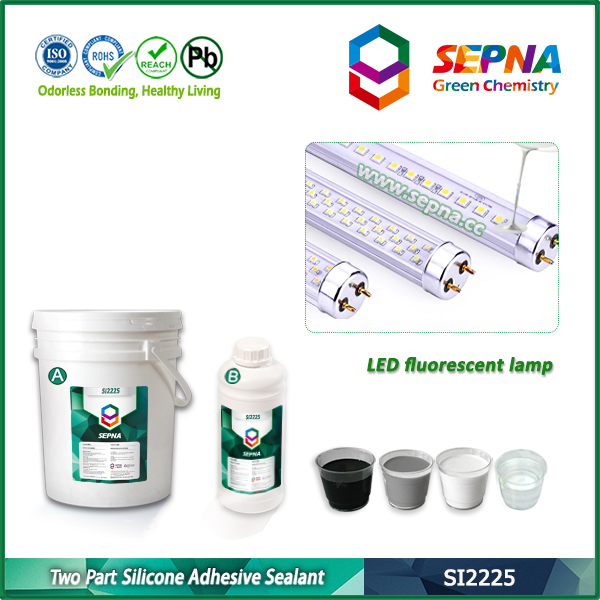

SI22225 Two-component Transparent silicone potting compound
?Product Description
SI2225A/B is used in potting protection of varied components. It can vulcanize to deep layer. The two components have a good fluidity after mixing. The operation time can be adjusted with the proportion of hardener part B. It can bond well with most materials without using any primer. It can be used to fix the accessories to resist water, dust and leakage of electricity.
?Key Features
1. Two-component high transparency liquid silicone rubber, condensation dealcoholization type
2. Low viscosity, easy to process and operate
3. Low hardening condensation, no corrosion and stressless
4. Excellent electric insulativity and stability in high temperature
5. Excellent bonding ability, good water-proof and moisture-proof property
?Typical Applications
Used for Automotive electronics, modules like Power control modules, Solar modules, Junction box, LED spotlight, Wall washer light, Strip lights, LED fluorescent lamp, etc.
?Technical Data Table
PROPERTY | UNITS | PART A | PART B | |||||||||||
---- | ---- | 2225T | 2225M | 2225W | 2225W-1 | 2225B | 2225T | 2225 | ||||||
Color | Visual inspection | Colorless transparent fluid | Matte transparent white fluid | White fluid | White low viscosity fluid | Black fluid | Colorless fluid | Colorless fluid | ||||||
Viscosity | 25°C, cps | 1,300 | 1,800 | 3,500 | 2,100 | 2,100 | 50 | 50 | ||||||
Density | 25°C, g/cm3 | 1.02 | 1.03 | 1.18 | 1.18 | 1.18 | 0.98 | 0.98 | ||||||
Corresponding curing agent (Part B) | 2225T | 2225T | 2225 | 2225 | 2225 | --- | --- | |||||||
Mixture/mass ratio | ---- | A:B=100: (10±3) | ||||||||||||
Viscosity of mixture | 25°C, cps | 1,000 | 1,000 | 2,300 | 1,500 | 1,500 | --- | --- | ||||||
Operation time | 25°C, min | 40 | 40 | 40 | 50 | 40 | --- | --- | ||||||
The operation time can be adjusted with the proportion of hardener part B. | ||||||||||||||
Surface hardening time, min | 70~180 | |||||||||||||
Cured appearance | ---- | Colorless transparent elastomer | Matte white elastomer | White elastomer
| White elastomer | Black elastomer | --- | --- | ||||||
Hardness | Shore A | 21 | 21 | 28 | 15 | 12 | --- | --- | ||||||
Tensile strength | MPa | 1.0 | 1.0 | 1.2 | 1.2 | 1.2 | --- | --- | ||||||
Shear strength | MPa | 0.3 | 0.3 | 0.7 | 0.7 | 0.7 | --- | --- | ||||||
Loss factor | 1 MHz | ＜0.008 | ||||||||||||
Dielectric strength | kV/mm, 25°C | ≥20 | ||||||||||||
Volume resistance | DC500V, Ω·CM | 1.1×1015 | ||||||||||||
Dielectric constant | 1 MHz | ＜3.00 | ||||||||||||
Long-term apply temperature | °C | -50~150 | ||||||||||||
Note：Above operation time was resulted based on 110g mixture, all data of cured state were tested after 7 days curing under 25°C, 55%RH.
?Directions for Use
1. Mix Part A and Part B by 100:10 mass ratio, after evenly mixed, pouring directly into the components or modules as per requirements. It’s recommended to slowly pour along the walls of the implements, so as to reduce the bubbles happens.
2. Still the potted component to let out the bubbles. Vacuum defoaming process of the mixture before potting can improve the performance.
Typical Applications
Applications | LED modules \Lamps | PV modules/Junction box | Automobile / Power modules |
Operation time，min | 50 | 25 | 45 |
Curing time，hour | 5 | L2.5 | 5 |
?Packing and Storage
SI 2225T, SI 2225M, SI 2225B, SI 2225W, SI 2225W-1:
Part A--20 KG/Bucket, Part B--5 KG/ Pot.
When stored at or below 25°C in the original unopened containers, this product has a usable life of 12 months from the date of production. It’s non-dangerous goods, can be transported and stored as normal chemicals.
?Safety Operation Data
MSDS isn't included here. Please read TDS, MSDS and label carefully before operation. You can get MSDS from SEPNA or other distributors, or mail to service center sepna@sepna.cc, or call +86-400-882-1323.
