TS MG1 Machined Mechanical Seal (replace AESSEAL B02,BURGMANN MG1,

ID:20112343391

Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 1.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

mechanical seals pump seals

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category
Manufacturing & Processing Machinery > Valves & Pumps & Compressors
Trademark
Product Package
Specification
Place of Origin
Port
shanghai

Our Mechanical seal model MG1 can Replace AESSEAL B02,BURGMANN MG1,FLOWSERVE 190, and MTU FG1,which is widely used for Hecker HN 410SU and other kinds of pumps. we usually have 4 types of stationary seat for customer's choice,G4,G6,G60 and G9. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Our Mechanical seal model MG12 can Replace Replace AESSEAL B012,BURGMANN MG12,FLOWSERVE 192 and MTU FG2,which is widely used for Hecker HN 410KU and other kinds of pumps. we usually have 4 types of stationary seat for customer's choice,G4,G6,G60 and G9. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

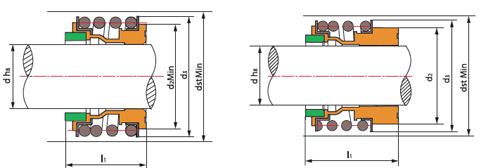

TS MG1(TSG)  TS MG12(TSG2)

Rotary Ring (Carbon/SiC/TC)
Stationary Ring (Ceramic/SiC/TC)
Secondary Seal (NBR/EPDM/VITON)
Spring & Other Parts (SUS304/SUS316)

Operating Limits
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -20℃~+120℃
