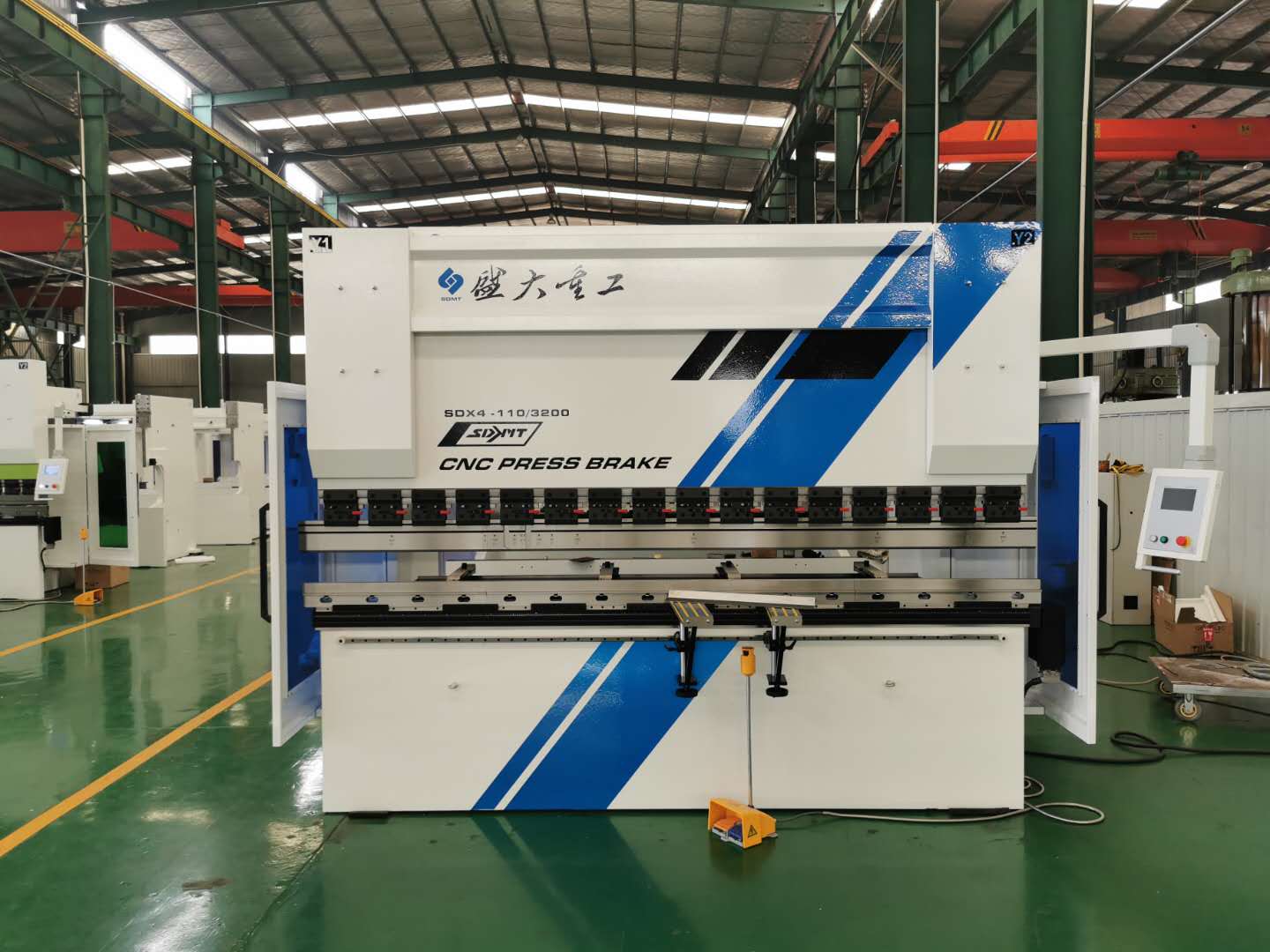

SDMT CNC press brake
"cool on sight, precise inside"
CNC system | Cybelec CT8 | Swiss |
Servo hydraulic system | Argo | Germany |
Pressure hydraulic system | Argo | Germany |
Motor | Siemens | Germany |
Grating scale | GV | Italy |
Ball screw | TBI | Taiwan |
linear guide | TBI | Taiwan |
Electric system | Schneider | France |
Guide tape | B+S | Germany |
Seal ring | SKF | Italy |
Cylinder seal ring | Merkel | Germany |
Servo motor | Shanghai electric | |
Servo drive | Shanghai electric | |
Tube connector | EMB | Germany |
Cylinder | Shanghai Heyan |
█ Technical Specifications:
CNC Press Brake SDS | 110T*3200mm | 130T*3200mm |
Bending Power | 1100KN | 1300KN |
Bending Length | 3200mm | 3200mm |
Distance between 2 frames | 2700mm | 2700mm |
Y1Y2 axis travel | 200mm | 200mm |
Max opening height | 460mm | 460mm |
Throat depth | 400mm | 400mm |
Working table height | 830mm | 830mm |
Approach Speed | 160mm/s | 160mm/s |
Working Speed | 10mm/s | 10mm/s |
Return Speed | 100mm/s | 100mm/s |
Main motor power | 7.5KW | 11KW |
Oil tank capacity | 300L | 300L |
X axis travel | 550mm | 550mm |
Dimension | 3550×1650×2600 | 3550×1650×2600 |
█ Precision
Bending angle | 0.5° |
Y1 Y2 axis | 0.01mm |
Slide re position precision | 0.01mm |
X axis precision | 0.02mm |
X axis re position precision | 0.01mm |
R axis precision | 0.02mm |
R axis re position precision | 0.01mm |
V axis,crowning precision | 0.01mm |
Y1 Y2 axis synchronized precision | 0.02mm |

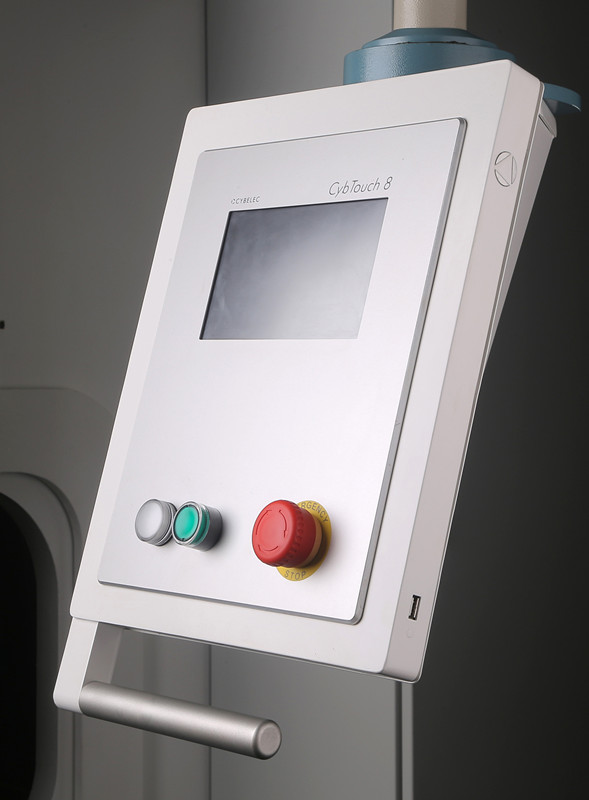

As part of the CybTouch range, it has an intuitive and colorful 7’’ touch screen.
· Controls 3 axes (with 4th axis as option).
· 2D graphic profile creation with manual sequencing (optional).
· 600Mhz CPU, 800*600 pixel,
· Large store capacity, max 100 tools.
· Bend allowance calculation.
· Pressure – crowning calculation.
· Modular tools for each part or bend.
· Angle and back gauge correction.
· Telemaintenance via wireless connection with PC or notebook. USB port for memory stick for data transfer/backup.

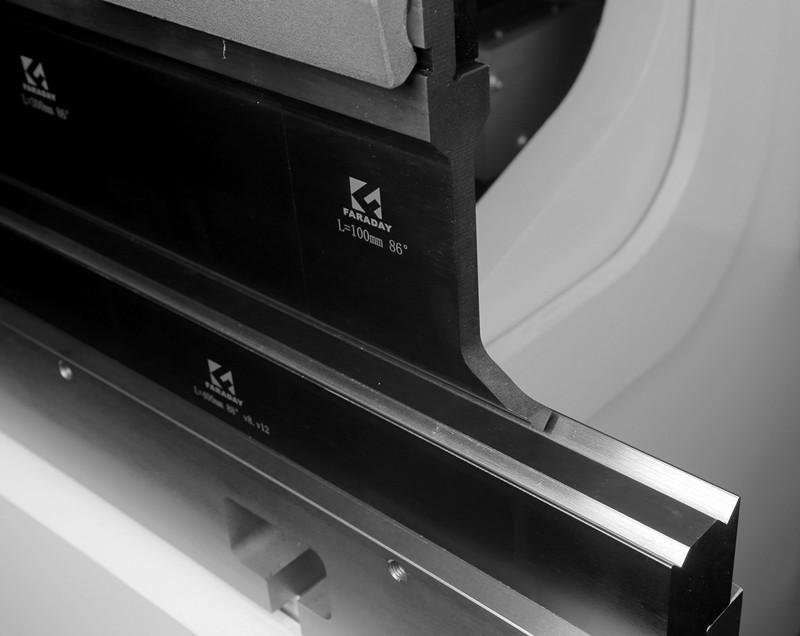

█Tooling
Material: 42CrMo, with heat treatment( Quenching)

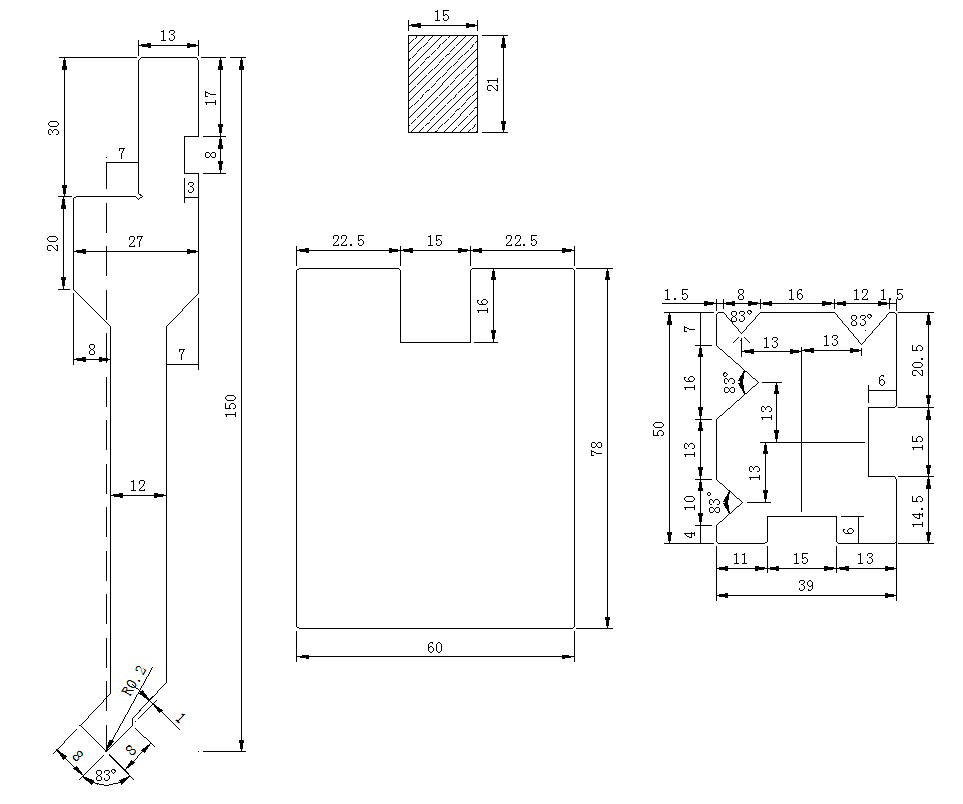

Standard tool drawing as below:

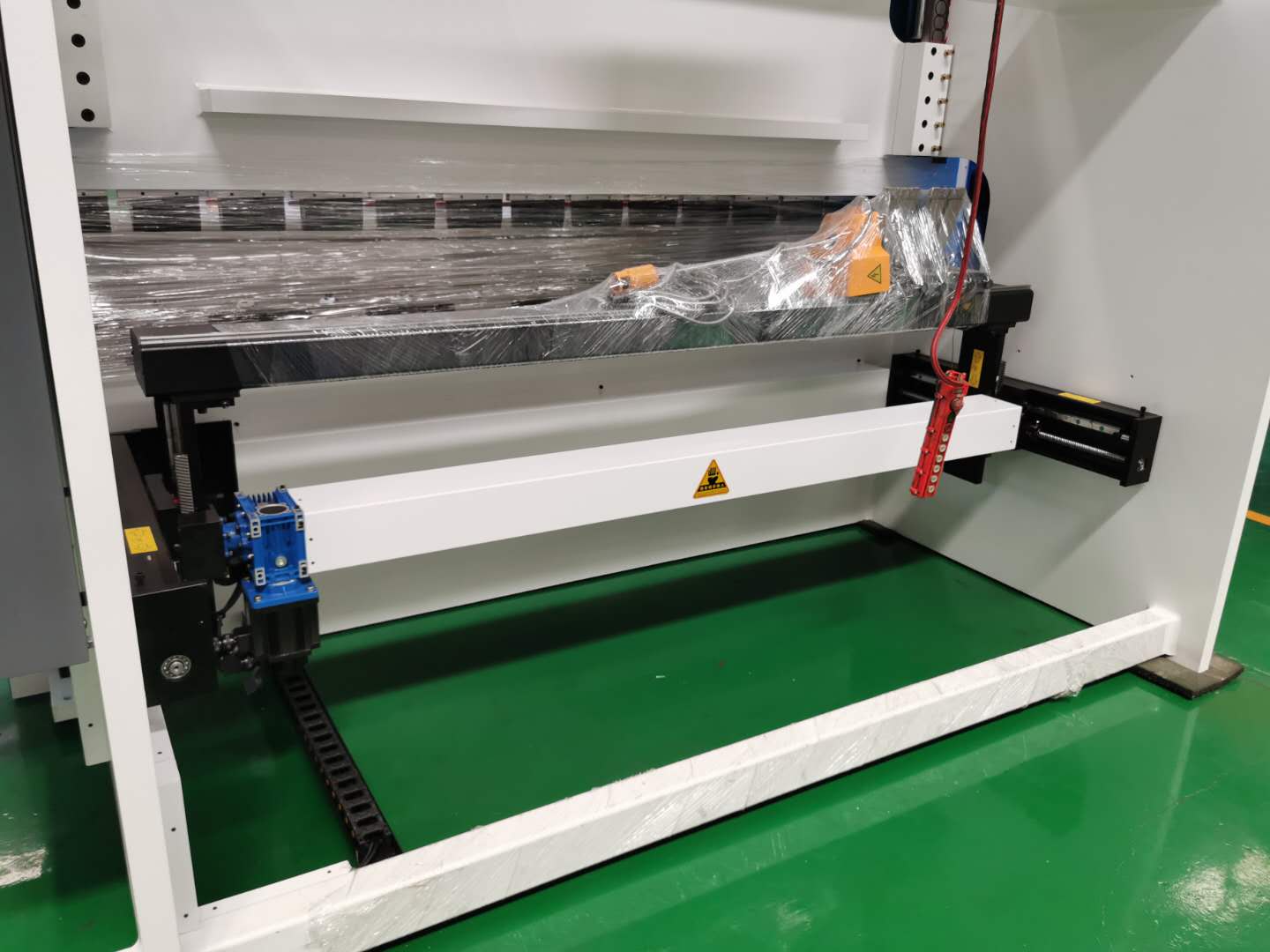

█ Back gauge:
2 linear guideway servo back gauge
