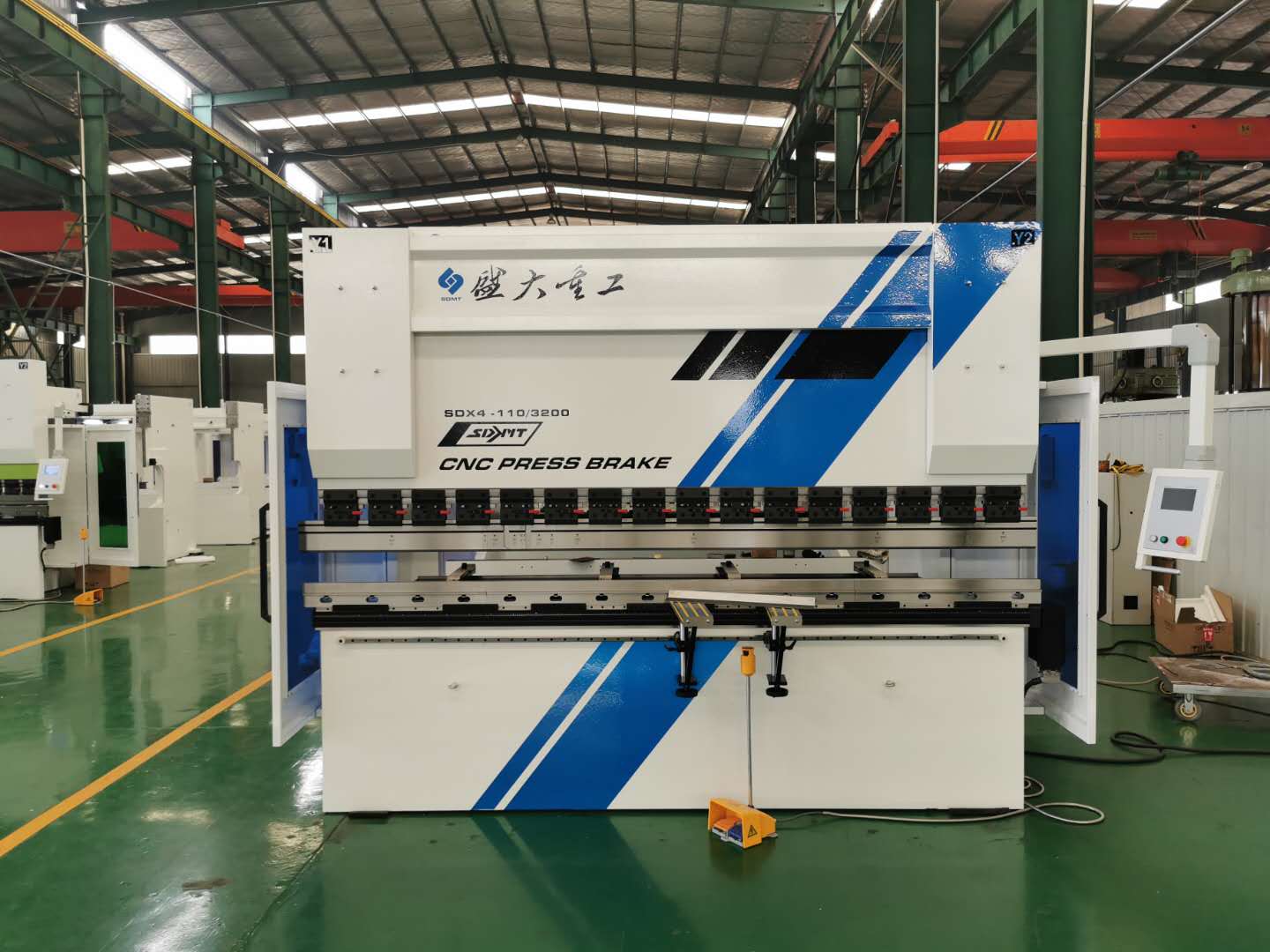

SDMT NC press brake machine
"cool on sight, precise inside"
█ Standard Configurations:
NC system | E21 | Estun |
Hydraulic system | First | USA |
Pump | Sunny | USA |
Motor | Siemens | Germany |
Tools, full quenching | 42CrMo material | 48-52HRC |
Inventor | Silin | |
Ball screw, Linear gude | Hiwan | Taiwan |
Electric parts | Schneider | France |
Seal ring | SKF | Italy |
Cylinder seal ring | Merkel | Germany |
Tube connector | EMB | Germany |
Cylinder | Shanghai Heyan |
█ Optional components:
?Manual Crowning working table: USD1500
? Quick clamp system: USD350
? Light sensor protection: USD300
? Adding more stop finger, 2 sets in quotation, USD100/set for more
?Adding more front arm support , 2 sets in quotation, USD50/set for more
? Different CNC units of ESA/ DELEM/CYBELEC cnc press brakes Controllers
? Larger opening height and throat depth
? Special colors and logo
? Special tools design according to customer’s job
? Other customize.
█ Technical Specifications:
TYPE | PN (kn) | Table Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Slide Stroke (mm) | Max Open (mm) | Power (kw) | Weight (kg) | Dimension L*W*H (mm) |
400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2750 | 2200*1200*1900 | |
40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3000 | 2500*1200*1900 |
50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3400 | 2500*1200*2000 |
63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 2500*1300*2210 |
63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 3200*1300*2210 |
80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 7.5 | 5000 | 2500*1400*2300 |
800 | 3200 | 2560 | 320 | 100 | 350 | 7.5 | 6000 | 3200*1500*2300 | |
80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 7.5 | 7000 | 4000*1500*2400 |
100T/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 7.5 | 6000 | 2500*1600*2400 |
100T/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 7.5 | 6800 | 3200*1600*2600 |
100T/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 7.5 | 8000 | 4000*1600*2600 |
125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 11 | 7000 | 3200*1600*2600 |
125T/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 11 | 8500 | 4000*1600*2600 |
160T/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 11 | 10000 | 3200*1700*2700 |
160T/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 11 | 11000 | 4000*1700*2800 |
160T/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 11 | 13500 | 5000*1900*3100 |
160T/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 11 | 18500 | 6300*1900*3200 |
200T/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 11 | 11000 | 3200*1950*2800 |
200T/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 11 | 12500 | 4000*1950*2800 |
200T/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 11 | 14000 | 5000*1950*3000 |
200T/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 11 | 20000 | 6000*1950*3300 |
250T/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 18.5 | 18500 | 3250*2000*3200 |
250T/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 18.5 | 20000 | 4000*2000*3400 |
250T/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 18.5 | 23000 | 5000*2000*3400 |
250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 18.5 | 27000 | 6000*2000*3400 |
3000 | 3200 | 2450 | 400 | 250 | 590 | 22 | 20500 | 3200*2000*3450 | |
300T/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 22 | 22000 | 4000*2000*3450 |
300T/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 22 | 25000 | 5000*2000*3450 |
300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 22 | 28500 | 6000*2000*3450 |
400T/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 30 | 22500 | 3200*2180*3400 |
400T/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 30 | 25000 | 4000*2180*3400 |
400T/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 30 | 29000 | 5000*2180*3500 |
400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 30 | 34000 | 6000*2180*3800 |
500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 45 | 42000 | 5050*3500*3700 |
500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 45 | 54000 | 6050*3500*3700 |
600T/4000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 55 | 44000 | 4050*4500*3700 |
600T/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 55 | 60000 | 6050*4500*3700 |

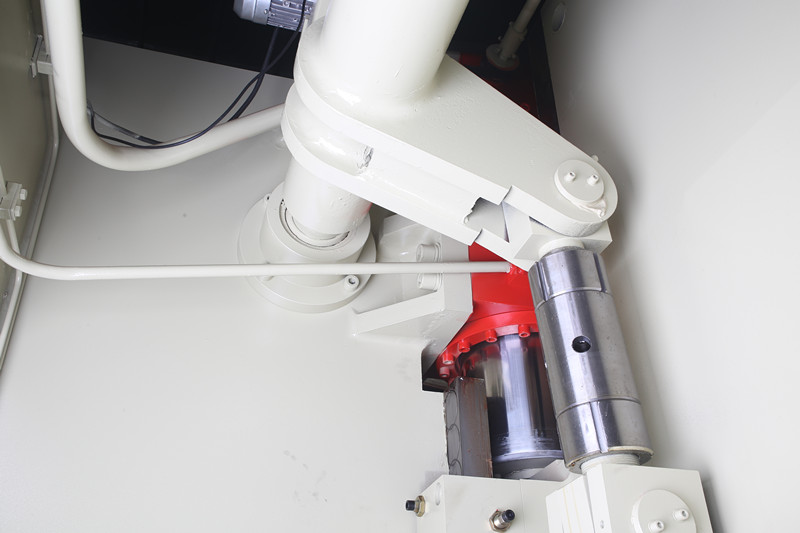

█ Torsion bar which is SDMT patent design
It is adjustable, which enable us to correct torsion bar deform, and correct the angle tolerance which is incurred because of cylinder wearing.

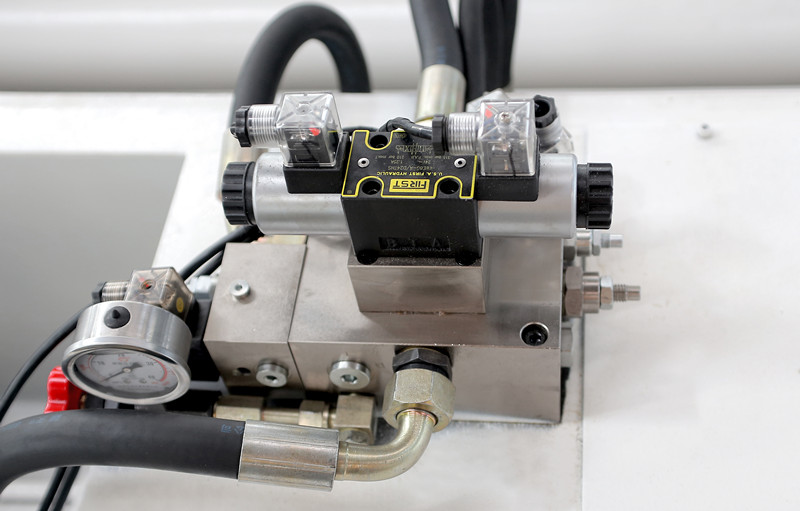

█ Hydraulic system, frist brand, USA
With fast down, slow down fuction, same CNC

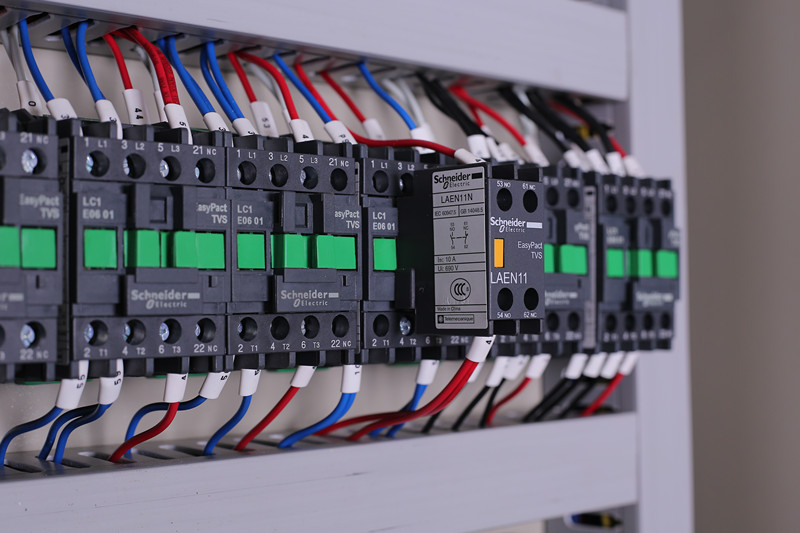

█ Schneider electrical system:

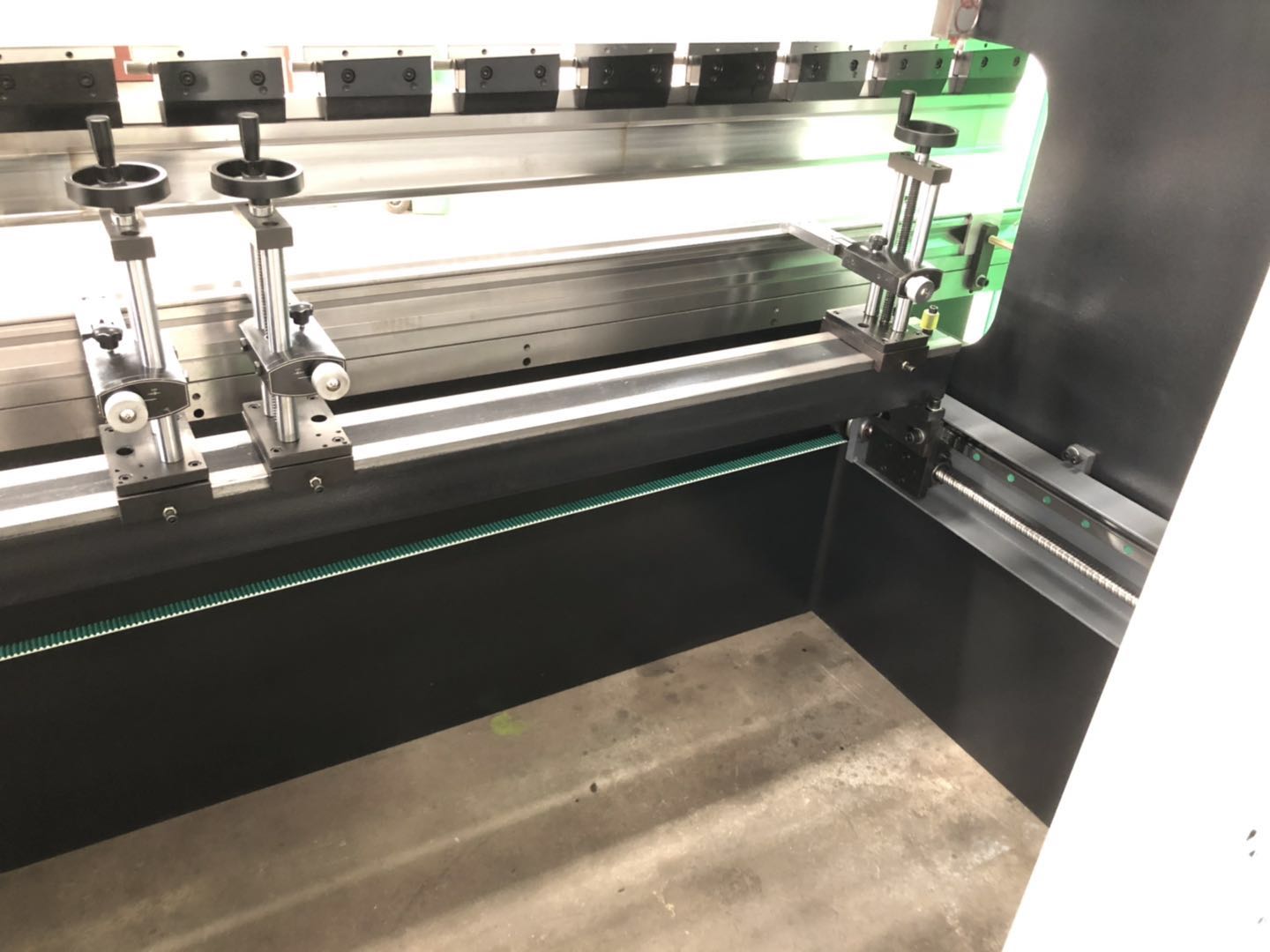

█ Back gauge:
With precise Taiwan ball screw, linear guide, synchronize belt, 4 adjustable finger.

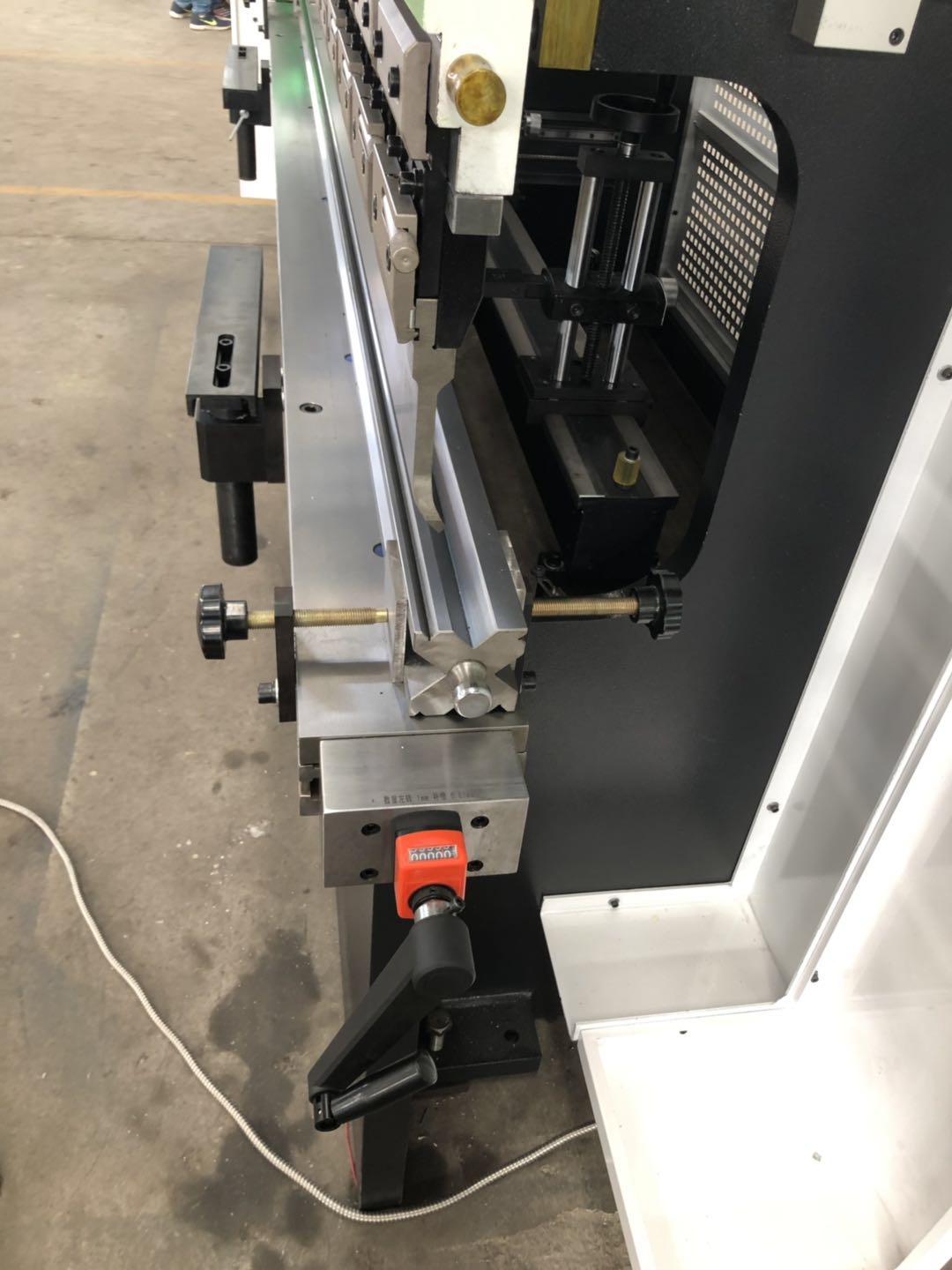

█Tooling
Our offer includes standard V punch die, with various channel at lower die, for bending of different depth, and equipped with quick clamp system.
Material: 42CrMo, with heat treatment( Quenching), HRC48-52
Arc, sinking, angle dies available, and customer design acceptable.
Free section, for the convenience of combine or small piece.
█ Vaxis, Crowning woring table,anti-deflection
Precision: 0.01mm, scope: 0-3mm
Crowning ensures a constant bend angle across the full length of the machine. This is achieved by pre loading the machine, to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are parallel to each other.
With CNC crowning systems the press brake control is preprogrammed with machine characteristics and deflection data.

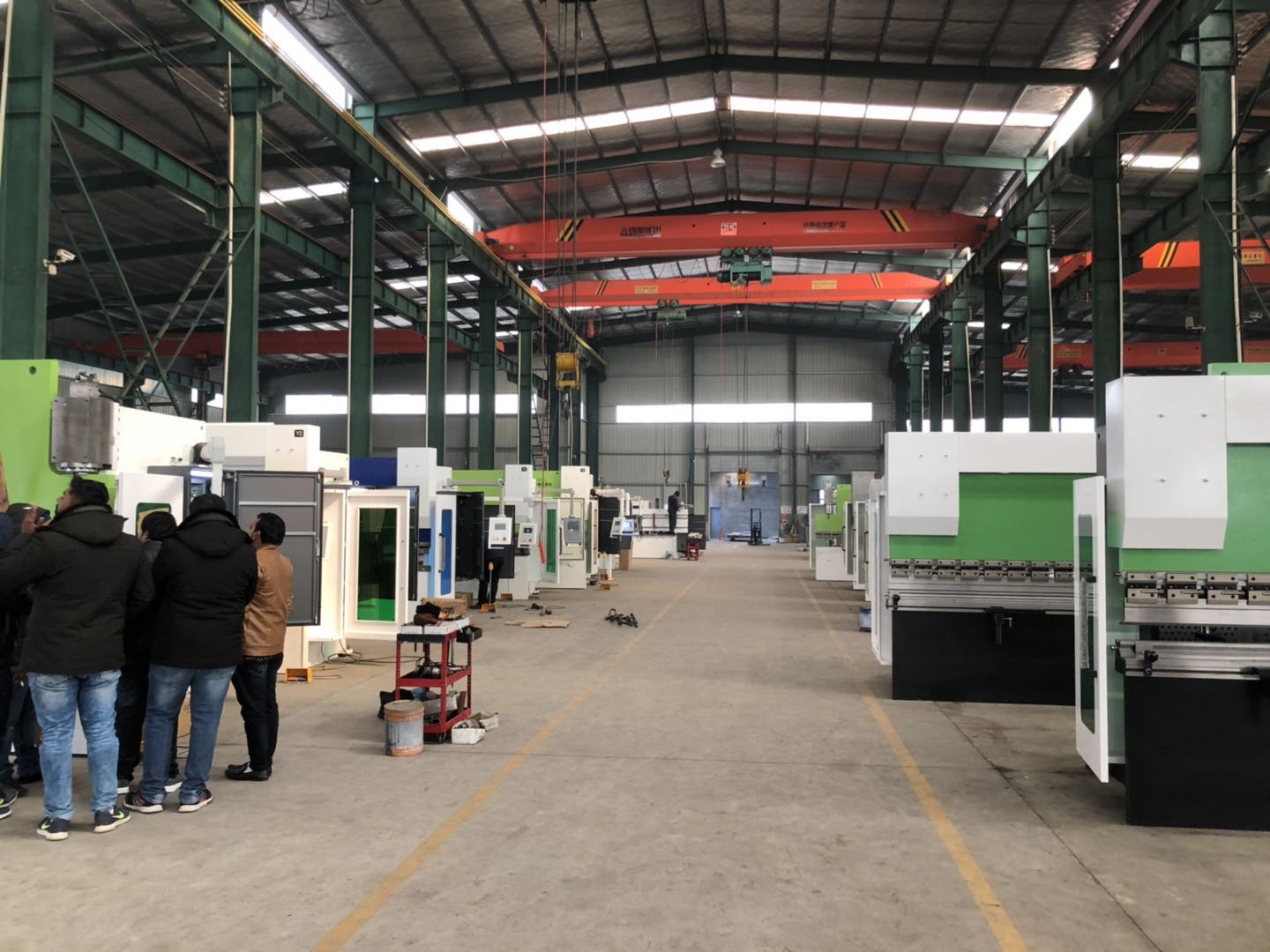

Our plant:
