hydraulic shearing machineshearing machineNC shearing machineCNC shearing machineplate shearing machineSheet Metal Fabricationsheet metal machinesmetal working machineryNC hydraulic shearing machine
L/CT/TD/P

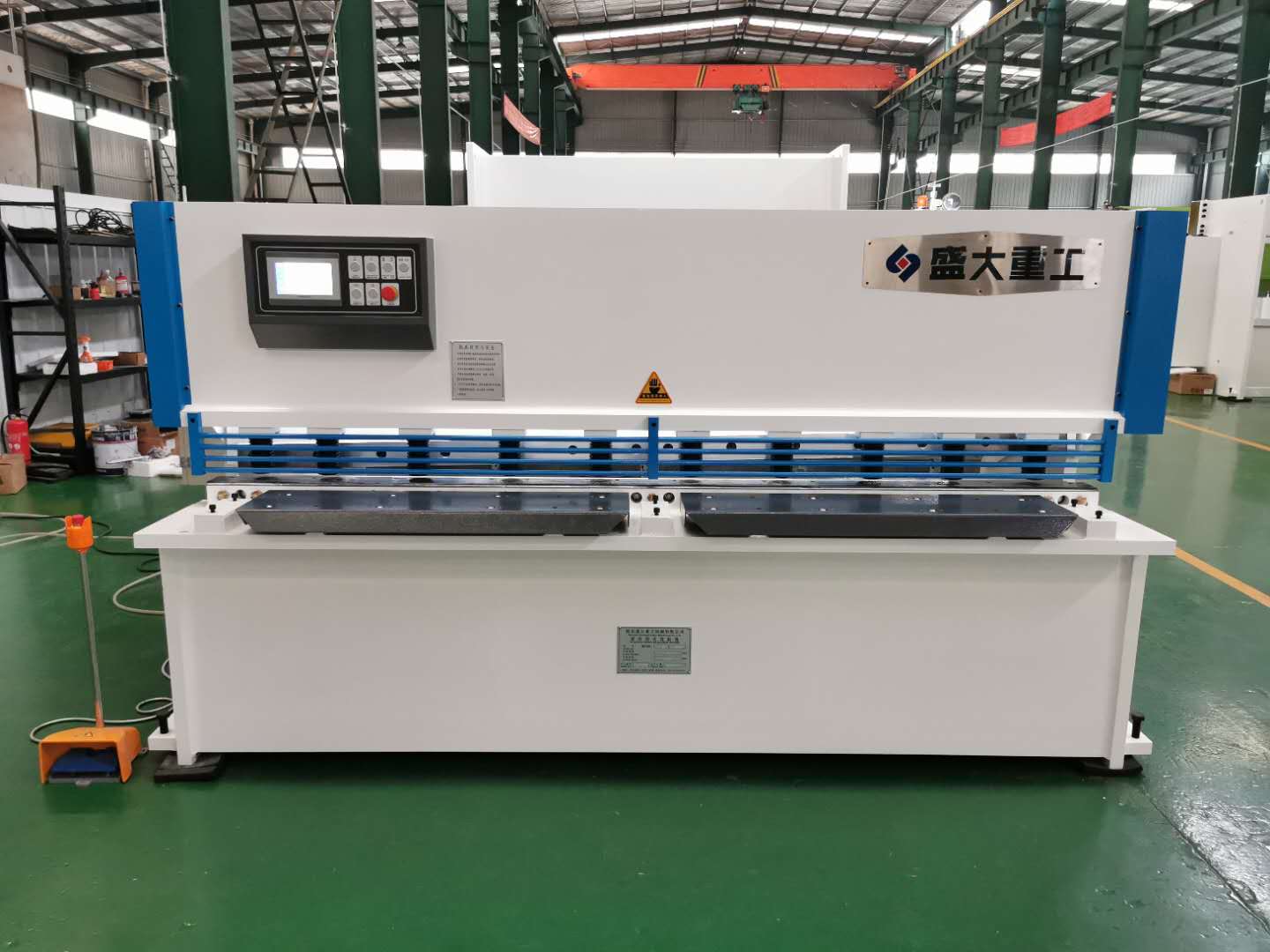

NC hydraulic shearing machine
"cool on sight, precise inside"
█ Standard Equipment:
? Fixed cutting angle design
? Cutting times count with read-out
? Return by nitrogen gas
? Siemens electric components
? USA First hydraulic system
? Schneider electric system
? Three standard front support
? 2 linear guideway back gauge with ball screw
? Easily adjustable with blades gap setting for precise cutting and longer using life
? Roller bearings on working table to feed sheets to the cutting blades easily
? Hydraulic sheet hold down system, holds the sheet in place during cutting process
? Simple and easy blades gap adjusting device
? Top blade 2 cutting edges, bottom blade 4 cutting edges
? China top level hydraulic valves
? USA SUNNY Gear pump
? Rear safety fence and front finger protection guards
? Standard rear plate slipper
? Removable foot pedal with Emergency stop buttons
? Oil tank indicator
█ Technical Specifications
model | Shearing Thickness (mm) | Shearing Width (mm) | Shearing Angle | Material Strength (KN/cm) | Number Of Stroke (time/min) | Motor power of main drive (kw) | Weight (kg) | Dimension L*W*H (mm) |
4×2500 | 4 | 2500 | 1°30' | ≤450 | 10 | 5.5 | 3800 | 3040*1610*1620 |
6×2500 | 6 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 5000 | 3040*1610*1620 |
6×3200 | 6 | 3200 | 1°30' | ≤450 | 9 | 7.5 | 6000 | 3840*1610*1620 |
6×4000 | 6 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8000 | 4620*1750*1700 |
6×6000 | 6 | 6000 | 1°30' | ≤450 | 5 | 11 | 16500 | 6480*2100*2300 |
8×2500 | 8 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 6000 | 3040*1700*1700 |
8×3200 | 8 | 3200 | 1°30' | ≤450 | 8 | 7.5 | 7200 | 3860*1700*1700 |
8×4000 | 8 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8800 | 4640*1700*1700 |
8×6000 | 8 | 6000 | 1°30' | ≤450 | 8 | 11 | 18000 | 6480*2100*2350 |
12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 9000 | 3140*2150*2000 |
12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 10800 | 3880*2150*2000 |
12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 13000 | 4680*2150*2000 |
16×2500 | 16 | 2500 | 2°30' | ≤450 | 9 | 18.5 | 11000 | 3140*2150*2000 |
16×3200 | 16 | 3200 | 2°30' | ≤450 | 8 | 18.5 | 13000 | 3880*2150*2000 |
16×4000 | 16 | 4000 | 2°30' | ≤450 | 8 | 18.5 | 16300 | 4650*2150*2200 |
