mechanical seals pump seals
L/CT/TD/PWestern UnionPaypalMoney GramOthers
Our mechanical seal model 502 can replace AESSEAL B07S and CRANE 502 ,which is widely used for industrial pumps. BO seat and BP seat are usually used for 502 type. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/ss304 ,tc/tc/nbr/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

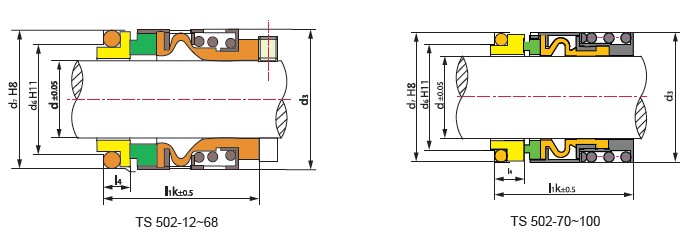

TS 502
Operating Limits:
Pressure: ≤4MPa
Speed: ≤13m/s
Temperature: -30℃~+200℃
Rotary Ring (Carbon/SiC/TC)
Stationary Ring (99%Ceramic/SiC/TC)
Secondary SeaI (VITON/NBR/EPDM)
Spring & Other Parts (SUS304/SUS316)
The standard seat for the TS 502 seal is the BO seat (DIN24960). Alternative seats can also be used, such as the BP and BC seats.
