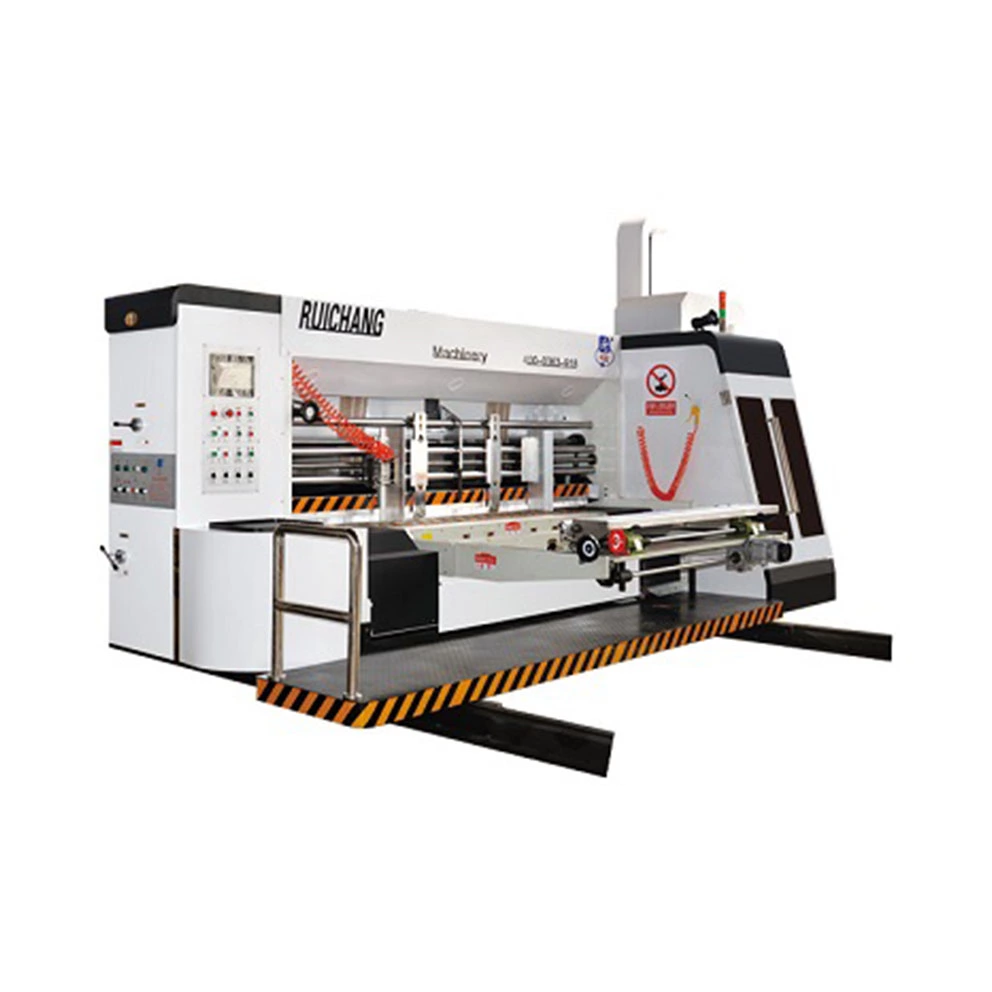

RuiChang high speed corrugated carton box printing slotting and die cutting machine

ID:20112643758

Category: Manufacturing & Processing Machinery Corrugated carton packing machine

FOB Price:US$ 80000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

corrugated cartonCarton Printing Slotting Die-Cutting Machine

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Corrugated carton packing machine

Trademark

Product Package

Specification

Place of Origin

Port

tianjin

Product Description

1.Feeding unit
?Can be continuous or skip paper(with counter)
?It adopt the lead edge roller to feed, can adjust the route to ease the pressure on drawing paper roll.
?Lead edge feeding increase the section flow rate to make feeding smoothly and accuracy.
?Frequency conversion control vacuum air flow and pressure, to match the board size.
?Paper glue roller for double glue, soft inner and outer hard, keep the inner elastic and guarantee the surface wear resistance,
reduce the cardboard was be squashed to be sent in.
?Dust cleaning device. The brush and blower to remove cardboard surface confetti. Multiple fan straight smoke added electrostaic
brush and turning round brush, the greatest degree remove dust board surface.
?About paper roller clearance, the position fo the left right bar is adjusted by computer.
?Equipped with brush device to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface and to
improve printing quality.

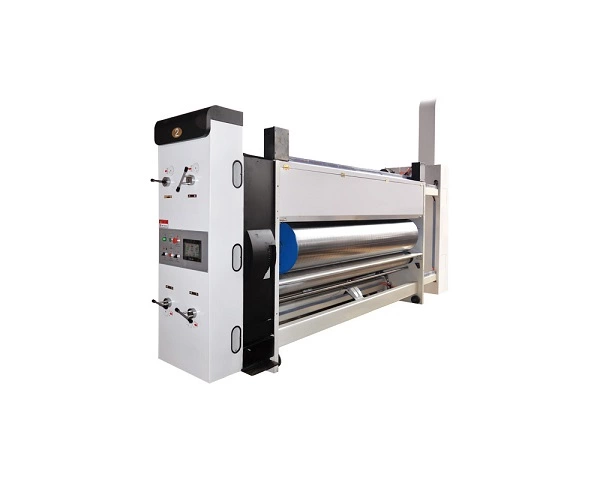

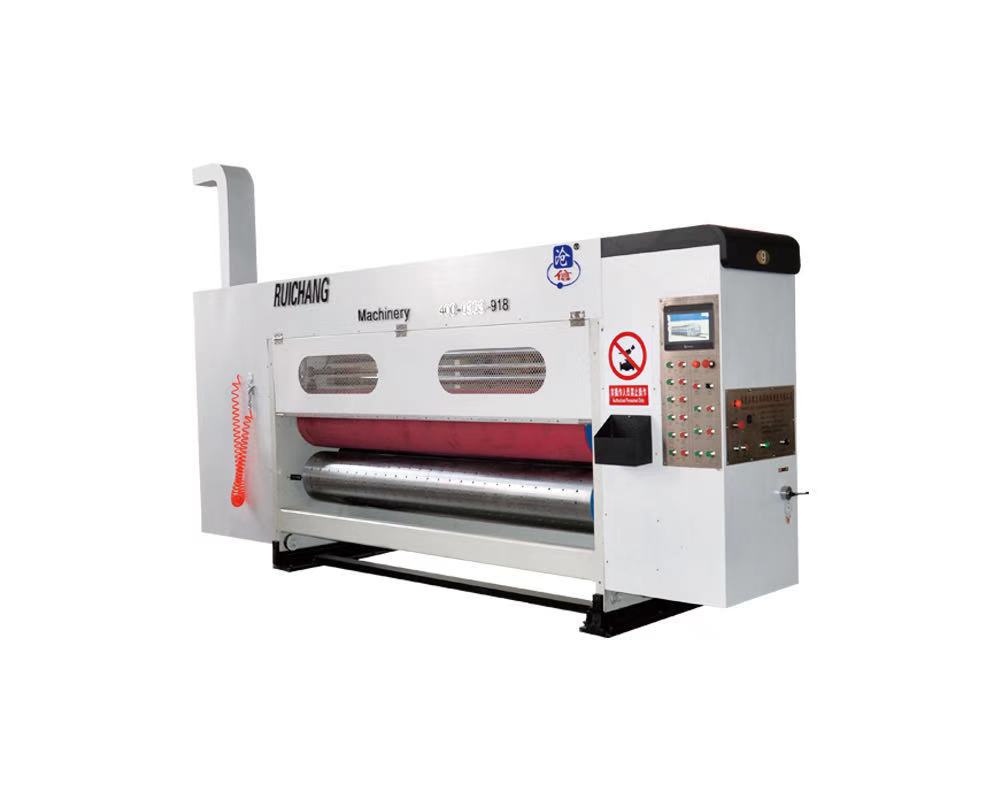

2.Printing unit

2.Printing unit
?Scroll hanging version, locking 360 degrees, let operation of hanging plate is simple, more accurate registration.
?Changing plate quickly, it can fix the incline error when paste the plate, so that reach to the range of amendment.
?Adopting vacunm absord and high precision to convery, high topping precision.
?The fixed group be widen in printing unit. It can help dry the ink to guarantee the topping precision.

?Printing roll phase adopt servo motor to drive that can connect to the Endat high precise encoder, guarantee the control

precision of the servo drive system. Topping-control contact to the servo directly , quickly reponse and high precision.
?The transverse phase computer and electric- digital control.
?Imported brand scraper ink system: ink cavity body for non-metal material, special never rust, easy to clean. Rapid change around
the blade.
?Adopt automatic cleaning-switching device. Let the ink recycling more thoroughly and save the ink, when clean or change the color
of the ink can save ink 0.4-0.5kg per unit once..

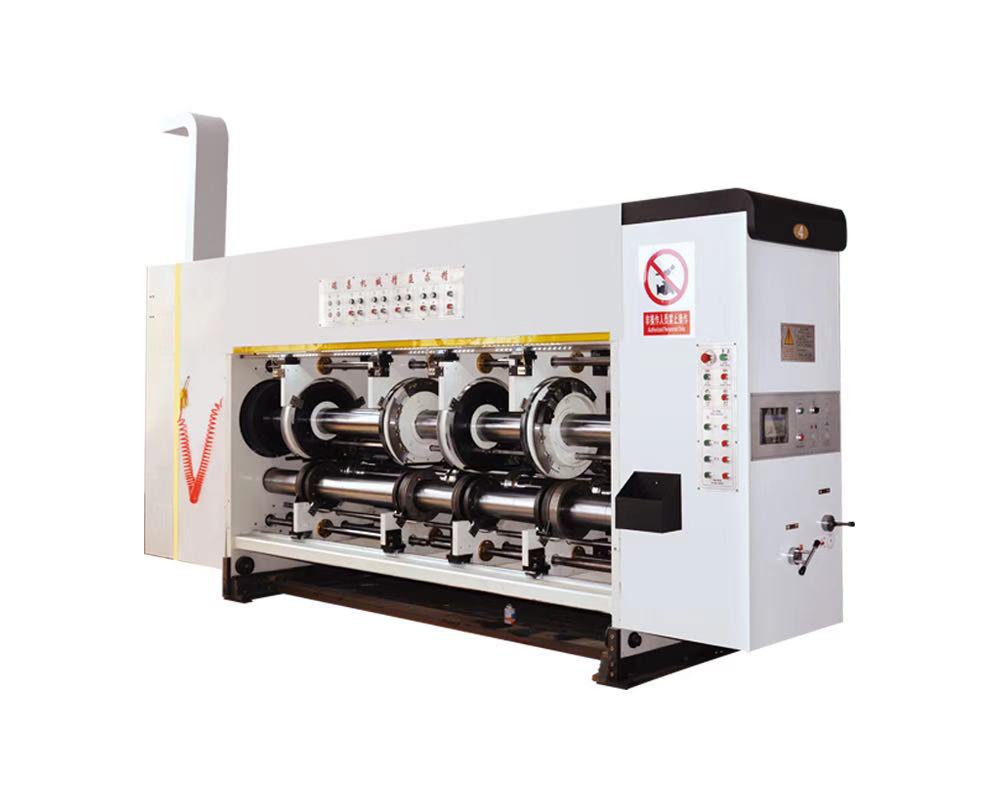

3.Slotting unit
?Prepressing wheel: Electically couped slotting and cutting and prepressing.
?Automatically adjusted group data setting with frequency converter revision to ensure high preision.
?Manually adjusted scoring wheel clearance with adjustment data displayed on the dial.
?7mm alloy steel scoring knives with indent heat treatment to enable grinding teeth shaip edge and high precision.
?PLC, touch screen and motorized digital 360 degree adjustment adopted form slotting phase with order being able to stored.
?Additional portable office die backer.
?Equipped with the inerlock control switch at slotting unit to achieve stop orresumepaper feed.

4.Die cutting unit

?With the servo motor drive guarantee the shake of printing unti is few to make print accurate.
?Rubber gasket roll compensation is controlled by independent motor drive, rubber mat roller speed. Compensation scope ±3.5mm,
make the rubber gasket roll and die cutter roller speed is consistent.
?Rubber gasket roll machine screw feverising 50mm winding device, improve the service life of the rubber gasket.
?Transverse phase, computer and electric control, digtial control in the plus or minus 10mm.
?Die-cutting phase adjustment by PLC, servo drrve.

?The structure of the rubber gasket roller, keep the rubber gasket surface is falt and level.

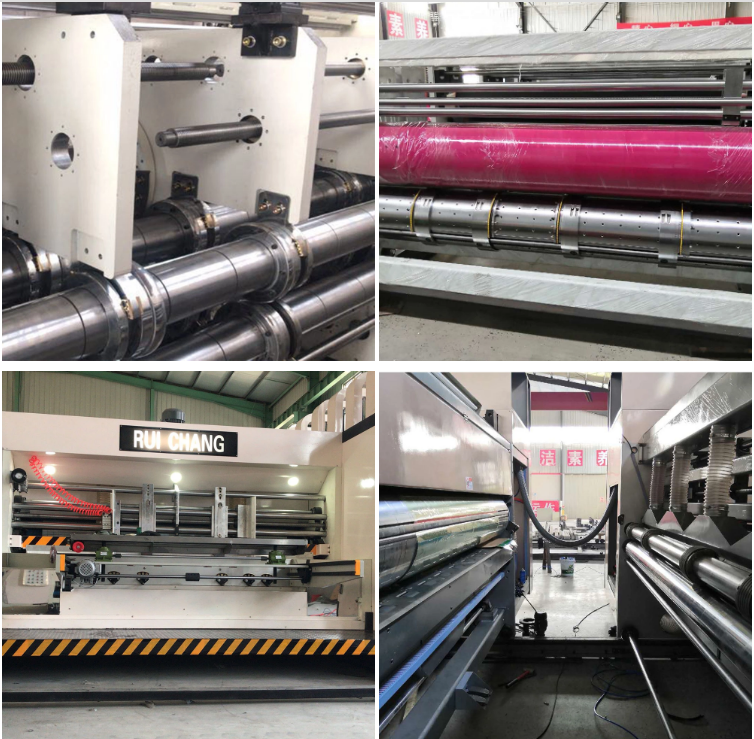

Details

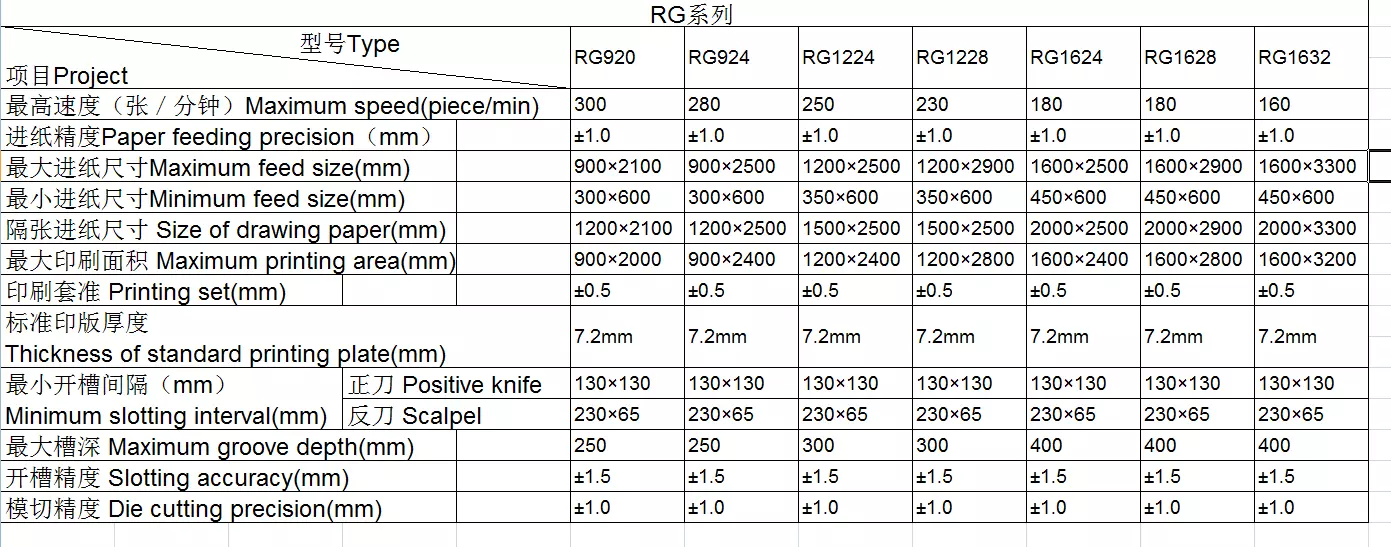

Product Paramenters

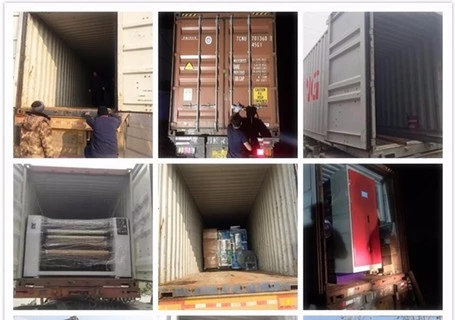

Packing&Shipping

Wrapping with the plastic film ,then put the machine into the container

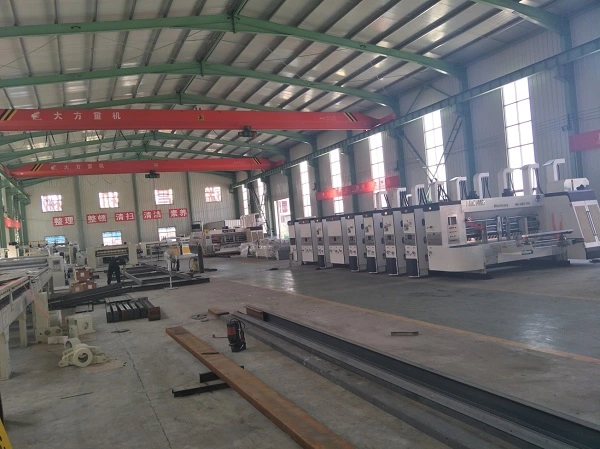

Company Introduction

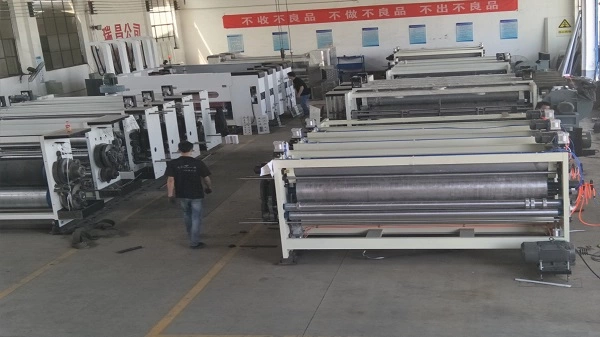

Dongguang Ruichang Carton machinery manufacture Co.,ltd established in 1996. We are located in DongGuang County which is famous
for packing hometown with convenient transportation to TianJin sea port. We produce many kinds of carton box printing and slotting
die cutting machines. Our machine comply with international quality standards and are greatly accepted by customer from domestic
and aboard market.
We have over 50 employees, 2 engineers for technical upgrade,1 engineer for machine design ,70% of them worked for RuiChang
Machine over 10 years.
Sincerely welcome domestic and foreign counterparts and we work together to establish and develop business, sincere cooperation,
hand in hand to move forward, opening up the future.

FAQ

1.Are you manufacturer ?
Yes, we are a manufacturer with 20 year manufacturing experience and we have our own export company.

2.Do you have experience in packing for shipment?
Yes, we will wrap the machine with plastic flims, packed it with steel shelf and wooden plate then put it into the containers.
3.Who will install the machine when machines arrived in our factory?
We will let the professional installer to your factory and teaching the operater how to use and maintain it. It's free within 7
days. Only to pay for the return tickets and visa expense.
4. Could you provide local service?
Of course, we can provide local service to ensure the medicine could be repaired as soon as possible.
