Plain annealed stranded copper conductor to BS6360/XLPE insulation to BS6889 / aluminium screen tube, applies longitudinally. CPC tinned annealed stranded copper to BS6360. LSZH sheath to BS EN 50267-2-1:1999 and
BS EN 61034:2005.

Applications: Power circuits, lighting, air-conditioning, call systems, data networks, signage supplies, computerised checkouts.

Voltage Rating: 300/500v

Operating temperature: -20 to +90°C

Temperature rating: Maximum conductor temperature 90°C

Min. bending radius: 9 x overall diameter

Flame retardant: BSEN 60332-1, IEC 60332-1

Smoke emission: BSEN 61034, IEC 61034-2

Acid gas emission BSEN 50267-1-2, IEC60754-1

Walls and partitions BS8436

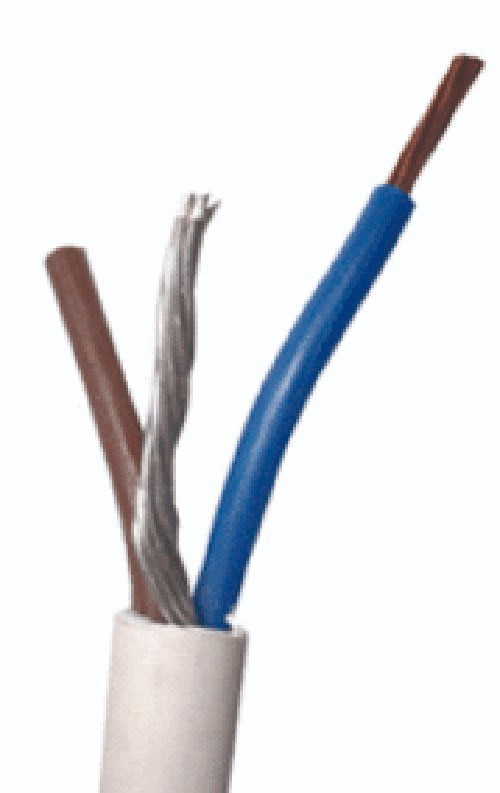

Core colours: 2 core: brown and blue
3 core: brown, black and grey
4 core: brown, grey, blue and black
