MOQ:1000.00 Yard(s)

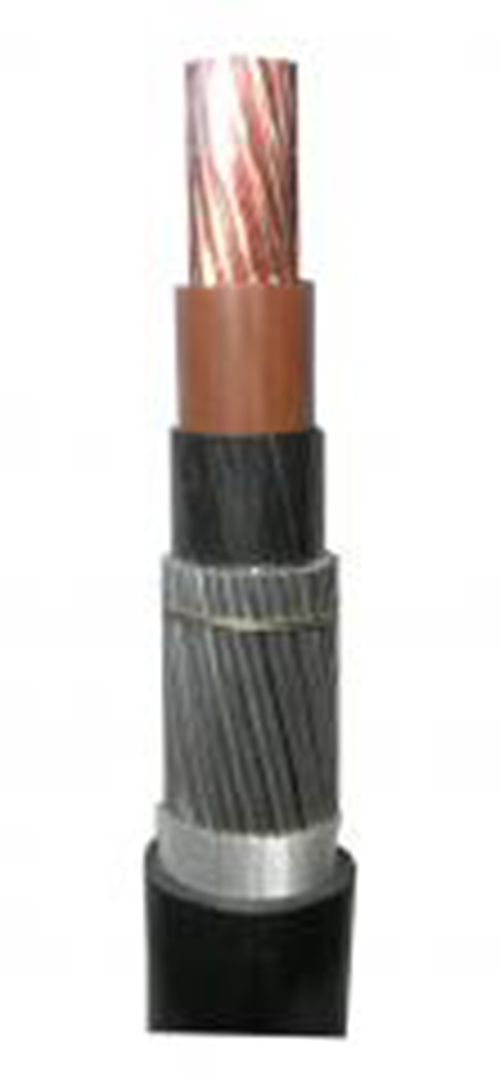

Un-armoured CableTwin & Earth cableNYY CableN2XH-J power cable RZ1-K cableDouble Insulated CableH05V-U CableH07V-R CableTHHN THWN CableSWA/LSZH Cable
Applications: Power cable suitable for power networks, direct burial, outdoors, indoors and in cable ducts
Conductors: Plain annealed stranded copper
Conductor stranding: Class 2 – Stranded circular or circular compacted
Conductor identification: Brown
Insulation: XLPE (Cross linked polyethylene)
Core identification: Brown
Bedding: PVC (Polyvinyl-Chloride)
Armour/Protection: AWA (Aluminium wire armour) non-magnetic
Sheath/Jacket: PVC (Polyvinyl-Chloride)
Colour: Black
Voltage: 600/1000v
Operating temperature: Maximum 90°C, Minimum bending 0°C
Minimum bending radius: 6 x overall diameter (Wherever possible, larger installation radius should be used)
Standards: BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V. IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV. Flame Propagation Test to BS EN 60332-1-2 for single cable.
