18650 21700 Lithium Battery making machine or production line

ID:20120144175

Manufacturing & Processing Machinery Energy & Mineral Equipment

FOB Price:US$ 1000000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Lithium Battery making machine18650 battery making line21700 battery making line

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Energy & Mineral Equipment

Trademark

OEM

Product Package

Internal anti collision packaging, external export wooden case packing(Non solid wood packaging).

Specification

18650 21700 Lithium Battery making machine or production line

Place of Origin

China

Port

TIANJIN

18650 21700 Lithium Battery making machine or production line

Product Description

1: Product information

1.1 Chemical system of battery: positive pole:NCM,negative pole:graphite

Different system battery
Negative pole		Positive pole
mAh/g	Materials	Materials	Wh/kg
165	Lithium titanate	Lithium manganate	409
250	Soft carbon	Lithium iron phosphate	561
260	Hard carbon	Lithium iron manganese phosphate	630
360	Artificial graphite	Lithium nickel manganate	648
365	Natural graphite	NCM	684
450	Carbon coated silicon oxide	Lithium cobaltite	722
600	Carbon coated nano silicon carbon	NCA	777
1000	Composite lithium electrode	Lithium rich manganese base	1380

Common electric core in the market at present: NCM,LIP, Lithium cobaltite,Lithium titanate, NCM and LIP are used to power battery,applied to passenger cars, buses, etcLithium cobaltic acid batteries are mostly used in 3C digital products.

1.2 Battery structure system: Cylindrical cell

1.3 Battery parameters: Voltage:3.7V, capacity: 3.3Ah,energy density: 270 wh/kg;

1.4 Applicable scope of battery: Drones, walkie talkies, micro electric vehicles, aerospace, and so on.

2: Main technical and economic parameters of the project

2-1 Total land area:13000 square meters;

2-2 Total floor area of plant: 10000square meters;

2-3 Total building area: 30000square meters;

2-4 Total installed capacity of electric power:5000 KVA;

2-5 Daily water consumption:800L/d;

2-6 Nitrogen consumption:100M3/h;

2-7 Use power supply voltage:220V/380V;

3: Brief introduction of battery process

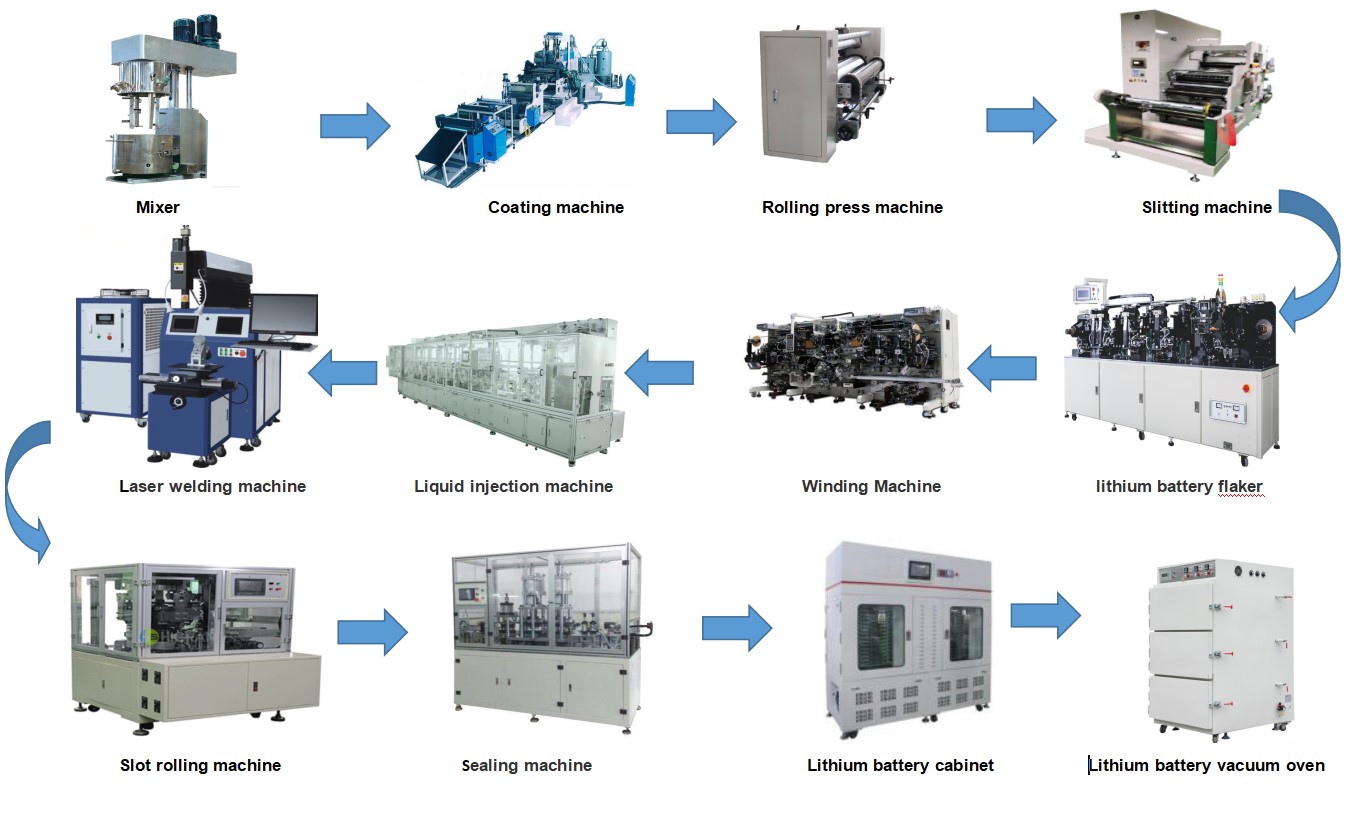

Mixture→Mixing→Coating→Rolling→Slitting→Dry→Winding→Filling shell→Filler piece→Bottom welding→slot rolling→Liquid injection→Seal→Activation→Formation→Burn-in→Grading→OCV→Laydown→Separating→Packing
