Slitting machinery Lithium battery slitterlithium battery cutting
L/CT/T

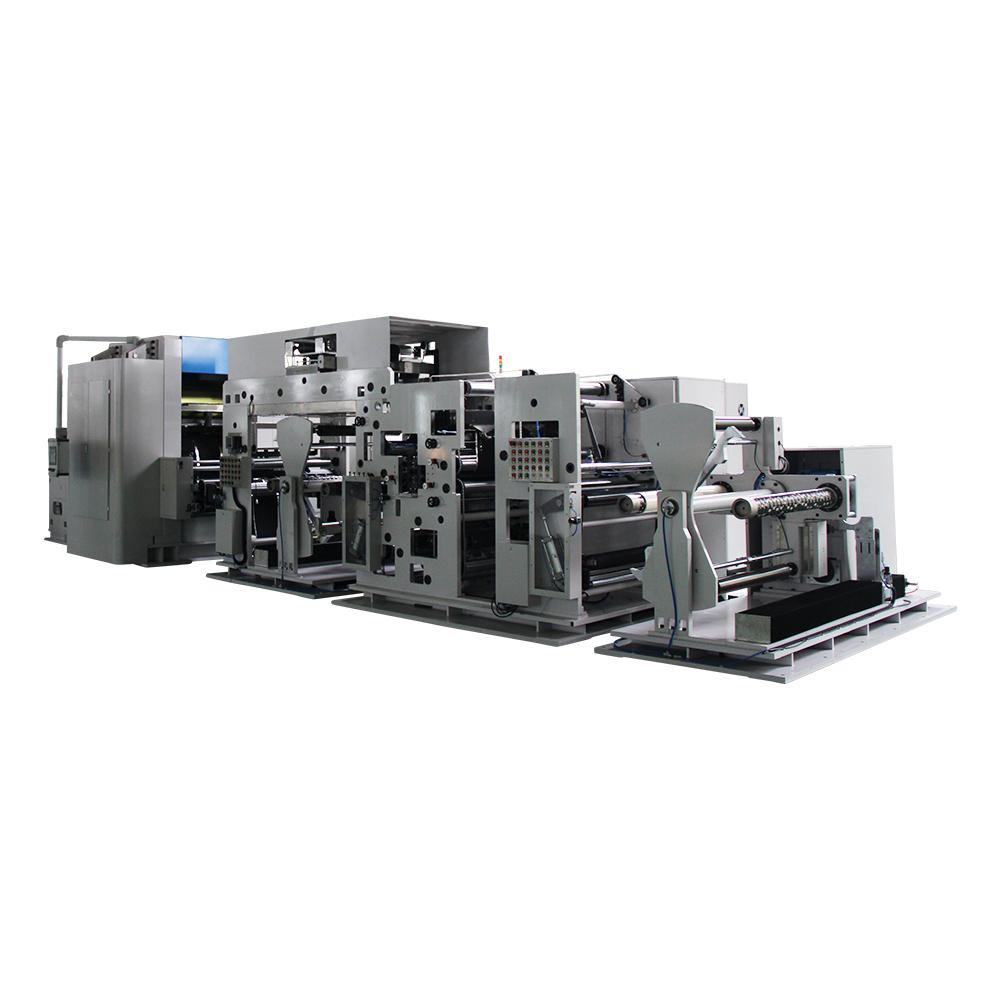

Slitting machinery manufacturer for lithium ion battery production line
| Roll size | 750 * 1100mm |
| Effective width of roller surface | ≥1000mm |
| Roller linear speed | 5-100m / min (stepless speed regulation) |
| Unwinding form | Two-axis turntable double-station automatic roll changing method |
| Chuck specification | 6 inch shaftless expansion chuck |
| Maximum load | 1500kg |
| Unwinding roll specifications | 400-1000mm |
| Maximum width | 950mm |
| Loading and unloading method | Meet the docking with AGV, automatically complete the roll change |
| Structural form | Rectangular integral casting frame, integral base |
| Roll circle run-out of assembly | ≤ ± 0.002mm |
| Maximum pressure between two rollers | 4000kN |
| Pressure method | Four-way constant pressure hydraulic station with roller surface deflection correction system |
Stretching device function: used to eliminate the wavy edges generated during the continuous or continuous strip coating of the pole piece
Tension control: PLC low friction cylinder + servo motor closed-loop adjustment of tension, digital display, four-stage tension control
Laser thickness measurement: communicates with the hydraulic system, can automatically adjust the pressure of the roller press in real time to achieve closed-loop control
Slitting knife unit: longitudinally divide multiple pressed continuous coated pole pieces into 2-4 pieces, burr ≤15μm, rewinding form: two sets of two-axis rotary disc four-station automatic roll changing method 6-inch cantilever air-sliding differential shaft, maximum load: 900kg, maximum winding diameter: φ700mm, overall size of automatic production line: 18500 × 5500 × 3500mm
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
