Waterproof insulation composite tape- Product Details

Waterproof insulation composite tape

ID:20120144453

Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 2.820 / Roll(s)

MOQ:100.00 Roll(s)

Product Keywords:

insulation tapewaterproof tapesealing mastic tapewaterproof insulationElectrical Insulating Tape Vinyl Mastic TapeElectrical mastic taperubber taperubber mastic tapewaterproof electrical tape

Payment Method:

T/TWestern Union

Product Category

Print,Pack,Plastic > Rubber & Plastics Products

Trademark

Chaoda

Product Package

50 rolls per carton with neutral packing

Specification

50.8mm x 1.65mm x 3m

Place of Origin

Hebei

Port

Tianjin, Guangzhou, Shanghai, Shenzhen

Waterproof insulation composite tape

Product description

Rubber mastic tape is a kind of self-melting and good from melting electrical insulation and waterproof sealing tape. It’s the adhesive agent of base for ethylene propylene rubber, surface coated with strong adhesion, good thermal stability. It can be used in electrical insulation and waterproof sealing, etc. Rated operating temperature 90℃, emergency overload temperature 130 ℃. Waterproof insulating tape and PVC waterproof insulation tape used together, can provide a reliable waterproof sealing and excellent anti-UV protection for electrical lines.

Feature

Irregular surface with good from the shape
Excellent weather resistance and waterproof sealing performance
Excellent bonding properties for copper, aluminum, and cable sheath material
Wide using temperature range
Self-melting adhesive tape
Good compatibility with all kinds of cable

Application

Used in communications equipment base station, antenna, feeder joints waterproof;
Cable sheath repair;
Applicable to 1000 volts and below the main insulation recovery;
Applicable to 1000 volts and below the insulation of the motor terminal;
35kv and below the main insulation busbar connection;
Waterproof sealing of ground wire;
Overhead insulated wire connectors waterproof seal protection.

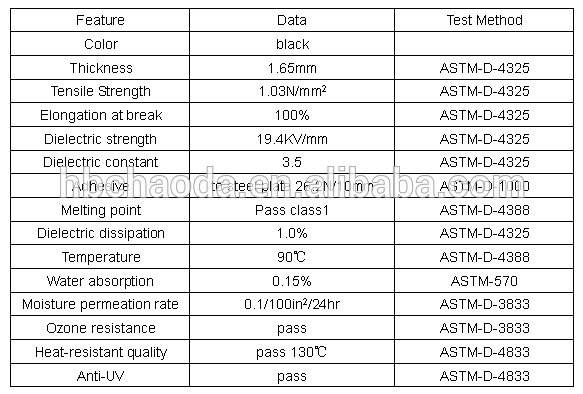

Technical Data
Waterproof rubber mastic adhesive tape

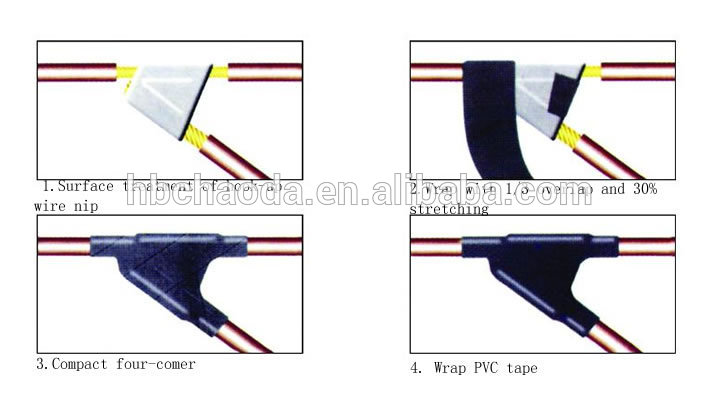

Usage

Before use should clean protected areas and frosted surface treatment
Remove the isolation paper out, fully stretch composite tape with half wrapped in corrugated type
In general can storage 5 years

Waterproof rubber mastic adhesive tape
