Business Type: Manufacturer
Main Products:Adjustable gas springGas springLinear actuatorDamper gas spring
ID:20120144614
Auto,Parts & Accessories
MOQ:50.00 Piece(s)

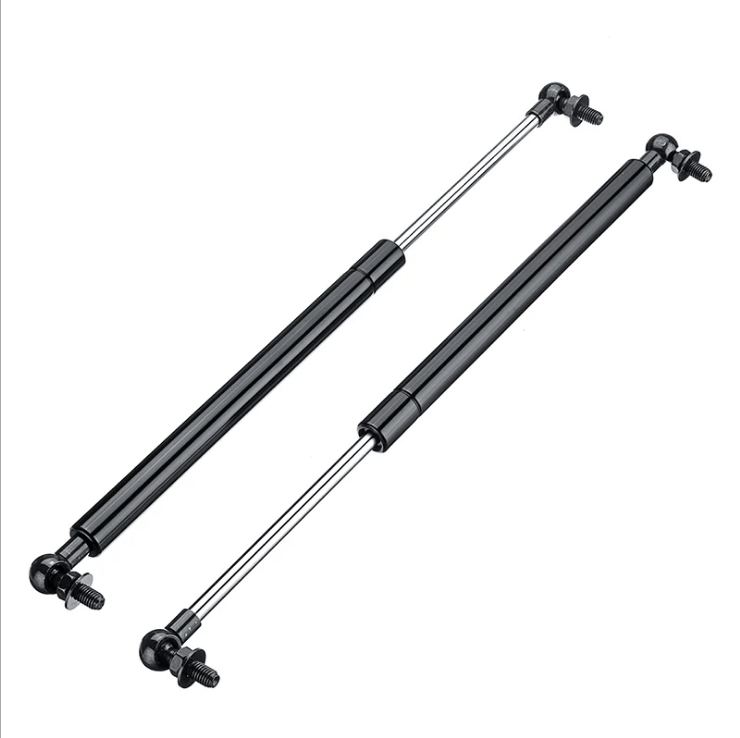

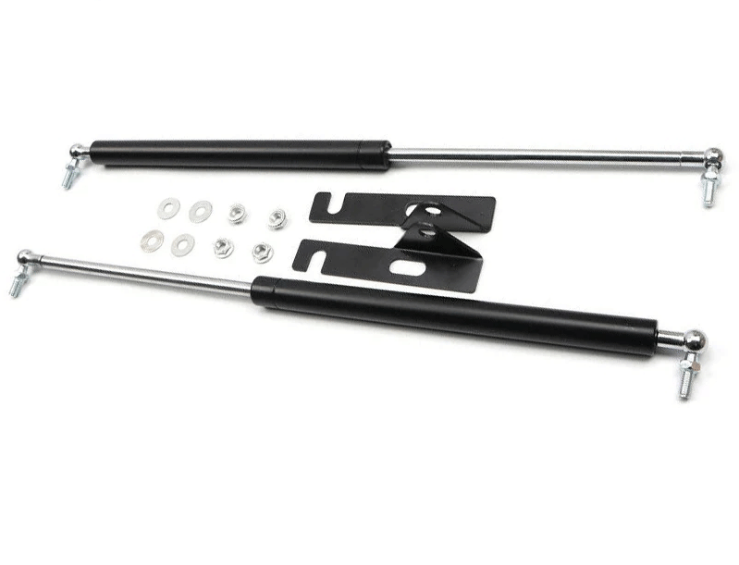

Mitsubishi Lancer Mitsubishi Lancer Engine coverMitsubishi Lancer gas springOEM CODE:MR199250
L/CT/TD/PWestern UnionPaypalMoney GramOthers
1. ISO/TS16949, SGS Approval Gas Strut
2. Samples will be freely sent to test first
3. Widely exported to US, Canada, Europe, Australia, more than 40 countries
4. Packaging Details: Poly bag or bubble bag, then carton, then pallet
5. Delivery Detail: Within 7 days for 10000pcs
10 years professional experience in producing high-qulaity gas springs in China.
| Gas spring/ gas strut/ gas lift/ gas stay / gas support |
Quality | 1.180,000 times -passed TUV fatigue test |
2.ROHS certificated by SGS | |
3.Passed ISO9001 and ISO/TS 16949 International Quality System Certification | |
Use | Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc. |
Material | steel/ss304/ss316/low carbon steel |
Color | silver/black/others |
Connector | ball connector/metal eye/clevis and so on |
Advantage | 1.pass 180,000 times fatigue times |
2.we can supply samples for free | |
3.Competivite price | |
4.Fast delivery time:1000 pcs 3 days
|

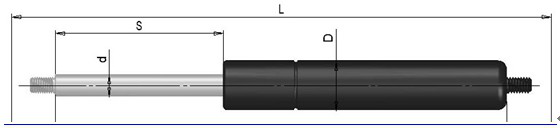

D=tube diameter d=piston rod diameter
S=stroke L=total length(connector center to connector center)
Product No. | Extended length | Stroke | D/d | Force |
DH | 100-300 | 30-100 | 12/4 | 5-100N |
DH | 300-600 | 100-200 | 15/6 | 10-300N |
DH | 600-900 | 200-300 | 18/8 | 50-600N |
DH | 900-1200 | 300-400 | 22/10 | 100-1200N |
DH | 1200-1600 | 400-500 | 25/12 | 100-1800N |
DH | 1600-2000 | 500-600 | 28/14 | 100-3000N |
DH | 2000-2500 | 600-700 | 28/16 | 100-3000N |
DH | 2500-3000 | 700-900 | 40/20 | 300-4000N |
The size can be made according the customer requirment. | ||||
Application:

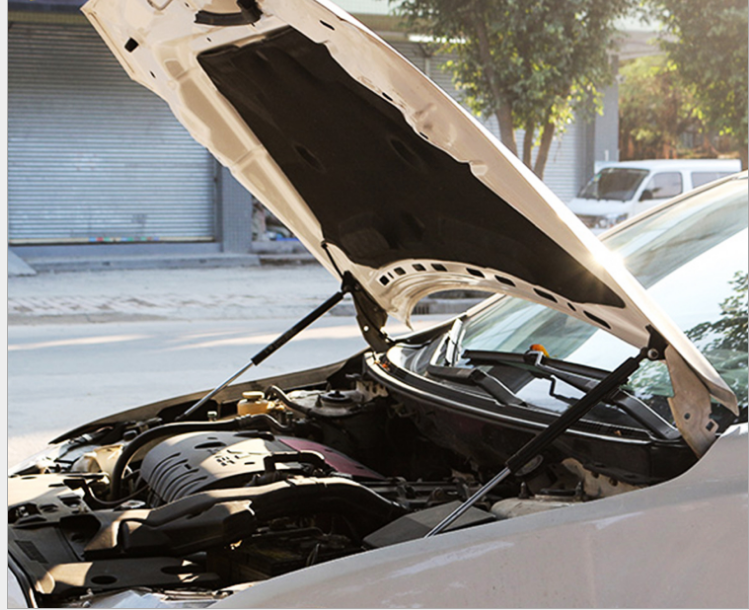

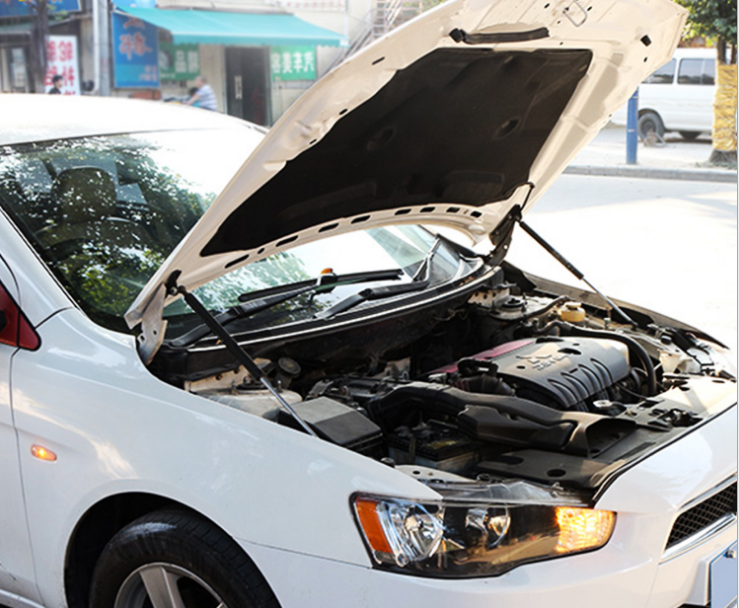

1), car trunk, bus luggage, automotive accessories, yacht, Toyota parts,Mitsubishi Lancer Engine cover gas spring
2), furniture, wall-bed, sofa, chair armrest, cabinet, fitness equipment
3), industrial equipment, heavy machinery, agriculture machinery
Production Process:
Cutting Steel Pipe→ Chamfering→Cleanout→Drying→Welding Tail Plug→Flaring→Blowing-off→pour into special lube oil →Rivet piston rod→Assemble parts→Sealing→Close up and slot rolling→Gas filling→ Testing→Printing→Ageing→Sticker→QC→Packing→Storage
Certification:
Q: What’s your MOQ of this gas spring?
A: 1000pcs. But we can supply for the sample.
Q: What’s the lead time?
A: 7days After receiving the deposit.
Q: Is it all right to make customer’s own brand name?
A: that’s all right. if customer required, we’ll make customer’s brand name.
otherwise we make our own brand name
Q: Where is your loading port?
A: Lianyungang port or as customer’s request
Q: What are your payment terms?
A: 30% T/T deposit & balance be paid before shipment
Q: What’s your company’s available production capacity?
A: We manufacture over 300,000pcs gas spring per month.
Welcome to you visit our factory!
