Eyebolt

Eyebolt

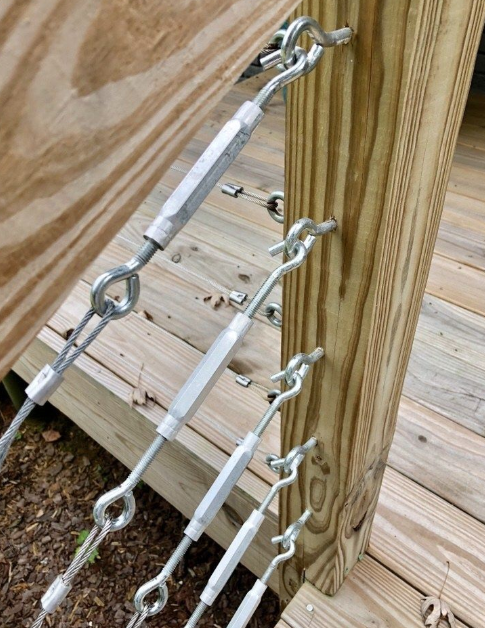

Available with internal diameter 13 and 23 mm, is an anchoring system particularly suitable for fixing scaffolding requiring an additional connecting element between eyebolt and scaffolding, and hang the rope and chain on the wall. Load values are subjected to the type of contact carried out.

• The eyebolt can be used again with a new expansion body.

• It must be used KSD or KSD-R steel expansion sleeve with metric internal thread to fix the scaffold to the external wall of the building, and hang the rope and chain on the wall.

• Material Available – Carbon Steel with zinc plated, Stainless Steel.

• Custom Finish – We can offer zinc plated, yellow zinc plated, black zinc plated, nickel plating, chrome plating, hot deep galvanized, Darcromet coating.

• Custom Sizes – Our unique mass customization manufacturing operation allows us to customize sizes far more easily than any other provider.

Application

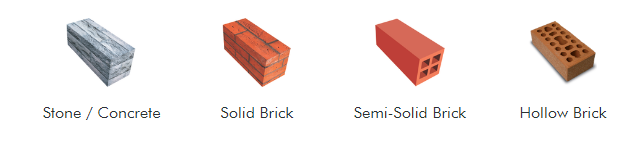

Suited for applications on solid and semisolid supports: stone, concrete, solid brick, semisolid brick. Designed for joint scaffolding by means of extensions.

Installation instructions：

1. Make a hole of the right diameter and depth and clean it.

2. Place the expansion sleeve in the borehole.

3. Place the tool in the sleeve and hit it with a hammer until it stops at the edge of the sleeve.

4. Screw the hook into the sleeve until you get clear resistance.

5. The attachment is ready to accept the load.
