Applications:
photovoltaic cable on solar modules and inverters in a photovoltaic system.
U0 = 1.5 kV DC
Advantages:
EN50618 Approval
Electron -beam cross-linked compounds
UV,ozone and hydrolysis resistant
High temperature resistance, the material do not melt or folow
Good cold flexibility
Very long service life>25 years at 90℃
Compatible to all popular connectors

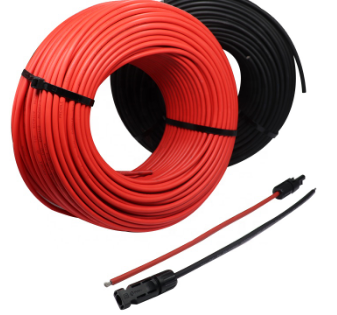

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
Rating Voltage | DC: 1 500V / AC: 1.0 kV | ||||
Temperature | -40°C-- +90°C | ||||
Max. Temperature at Conductor | 120℃ | ||||
Protection Class | II | ||||
Conductor | Tinned annealed copper | ||||
Insulation | 120°C XLPO, white | ||||
Jacket | 120°C LSZH, black or red | ||||
Certification | TUV (Tested according to: EN 50618:2014 and IEC 62930(ed.1) ） | ||||

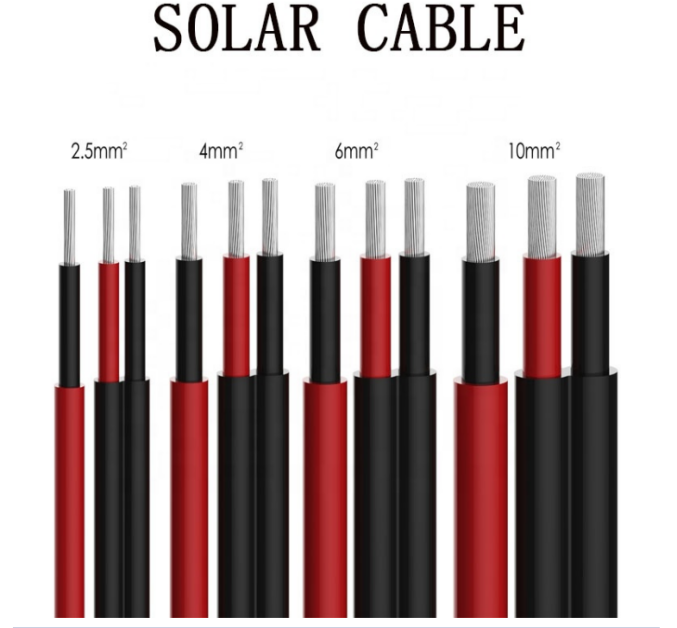

No. Of cores x Construction （mm2） | Conductor Construction （n / mm） | Conductor No./mm | Insul. Thick. (mm) | Current Aarring Capacity (A) | |
1x1.5 | 30/0.25 | 1.58 | 4.9 | 30 | |
1x2.5 | 50/0.256 | 2.06 | 5.45 | 41 | |
1x4.0 | 56/0.3 | 2.58 | 6.15 | 55 | |
1x6 | 84/0.3 | 3.15 | 7.15 | 70 | |
1x10 | 142/0.3 | 4.0 | 9.05 | 98 | |
1x16 | 228/0.3 | 5.7 | 10.2 | 132 | |
1x25 | 361/0.3 | 6.8 | 12.0 | 176 | |
1x35 | 494/0.3 | 8.8 | 13.8 | 218 | |
1x50 | 418/0.39 | 10.0 | 16.0 | 280 | |
1x70 | 589/0.39 | 11.8 | 18.4 | 350 | |
1x95 | 798/0.39 | 13.8 | 21.3 | 410 | |
