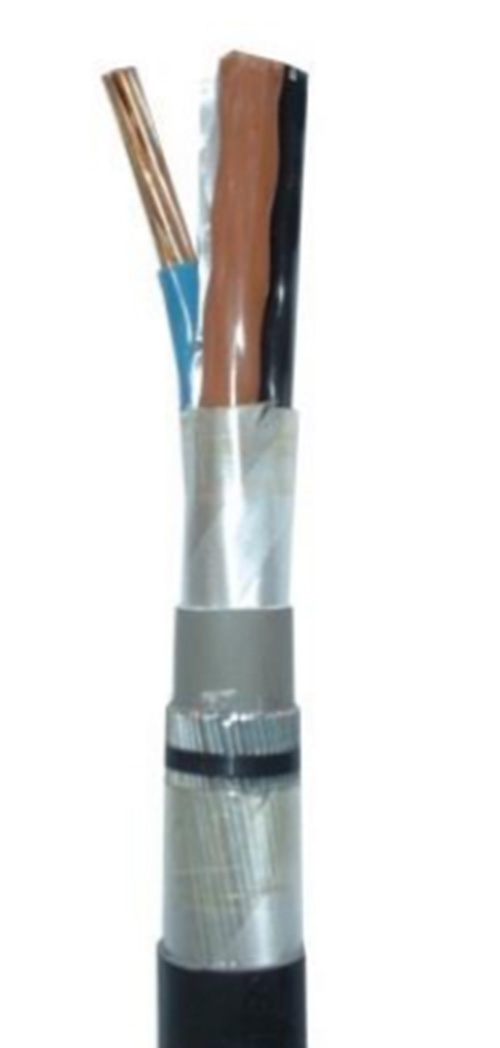

0.6/1kv SWA/LSZH Cable

Applications: Power cable suitable for power networks, where fire emission of smoke and toxic fumes creates a serious potential threat. Suitable for direct burial. Armoured LSZH mains cable to British Standard BS6724 & IEC60502 suitable for power networks.

Conductor identification:
Two Core - Brown, Blue
Three Core - Brown, Black & Grey (Optional: Brown, Blue & Green/Yellow)
Four Core - Brown, Black, Grey & Blue (Optional: Brown, Black, Grey & Green/Yellow)
Five Core - Numbered Cores (Optional: Brown, Black, Grey, Blue + Green/Yellow)
Six Core and Above - Numbered Cores (optional numbered + Green and Yellow)

Conductor stranding:
Class 2 stranded copper:
2 circular or circular compacted conductors
2* shaped or circular conductors or circular compacted conductors.
2S shaped conductors
(Dimensions and weights based on circular)

Conductors: Plain annealed stranded copper

Insulation: XLPE (Cross linked polyethylene)

Bedding: LSZH (Low smoke zero halogen)

Armour/Protection: SWA (Galvanised single wire armour)

Sheath/Jacket: LSZH (Low smoke zero halogen)

Colour: Black

Voltage:600/1000v

Operating temperature: Maximum 90°C. Minimum bending 0°C

Minimum bending radius:

1.5 sq.mm – 16 sq.mm –6 x overall diameter (circular cond.)

25 sq.mm and above – 8 x overall diameter (shaped cond.)
