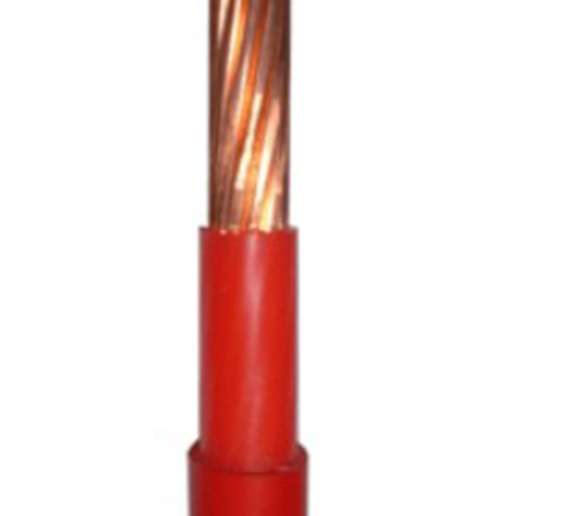

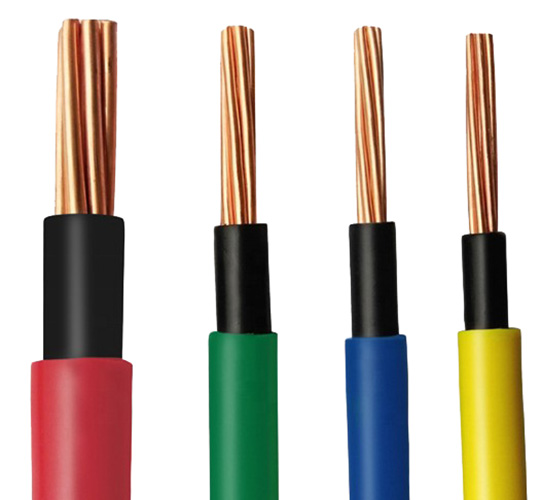

Double insulated 6181XY PVC cable used in building wiring

Conductors: Plain annealed copper

Insulation: XLPE

Sheath/Jacket: PVC (Polyvinyl-Chloride)

Colours: Black, Blue, Brown, Green, Green/Yellow, Grey, Red & Yellow

Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum bending 0°C

Standard: BS7889 : Electric cables. Thermosetting insulated, unarmoured cables for a voltage of 600/1000V & IEC60502 Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV

Applications: suitable for use in fixed installations in industrial areas and buildings, but not for direct burial in the ground
