1500W RAYCUS LASER CUTTING METAL PLATE
L/CT/T
The machine basement is optimized by European technology, and is annealed and stress-relieved to ensure machine structure reliable and precision stabLe.
High-strength cast aluminum beam designed by finite element analysis, heat treatment has realized lightweight and high-rigidity beam structure
Adopting the imported world famous brand Reducer, Gear Rack, Guide Rail to ensure high speed and high precision of mechanical transmission operation
Adopting the imported laser,it has high luminous efficiency, low running cost and long service life.
Equipped with famous brand cutting head to support stable and long time cutting.
Equipped with professional laser cutting CNC system
Provide cutting process parameter database to facilitate users to exchange different plates
Partitioned follow-up dust removal system to effectively remove the smoke generated by cutting
Extremely Cost-Effective
主要技术参数 Main Technical Parameters | |||
名称 | Item | 单位 Unit | HYA3015 |
加工范围 | Cutting range | mm | 3000*1500 |
X轴行程 | X axis stroke | mm | 3040 |
Y轴行程 | Y axis stroke | mm | 1520 |
Z轴行程 | Z axis stroke | mm | 80 |
X-Y轴最大联动速度 | X/Y maximum trajectory speed | m/min | 120 |
X/Y轴最大加速度 | X/Y maximum acceleration | m/s2 | 1.2G |
定位精度 | Postioning accuracy | mm | ±0.05 |
重复定位精度 | Repositioning accuracy | mm | ±0.03 |
工作台最大载重 | Maximum load of woraktable | Kg | 750 |
机床外形尺寸（L*W*H） | Machine layout dimension | mm | 4800*2600*2200 |
整机重量 | Machine weight | Kg | 4500 |
激光发生器功率 | Laser generator power | W | 1500 |
Machine construction
Laser source
Brand: Raycus
Original: China Low Energy Consumption:
Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.Lifetime is more than 100,000 hours, almost free maintenance.
Electrics
Brand: Schneider
Original: France
Low electric power consumption
Servo motor and driver
Brand: yaskawa
Original: Janpan
Low electric power consumption
Structure details
FAQ
Fiber Laser cutting machine Function:
Fiber laser cutting is only used to process on metal like Stainless Steel,Carbon Steel,Mild Steel,Alloy,Aluminum,Copper,Brass,Iron etc.
Cypcut CNC control software
Besides English, we have professional Russian, Spanish,German language.
Laser source option
Raycus: 1000W, 1500W, 2200W,3300W
IPG: 1000W, 1500W, 2000W, 3000W, 4000W,
Diffrent laser power due to the different laser cutting thickness,materials and the production quantity.
Machine size:
3000*1500mm ,4000*1500mm, 4000*2000mm
Single cutting table & exchange cutting table, auto feeding shuttle table,Enclosed table, open table all available, plate and tube cutting table, tube cutting machine available.

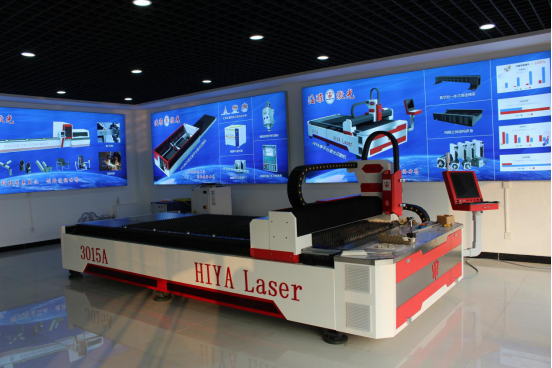

product picture
