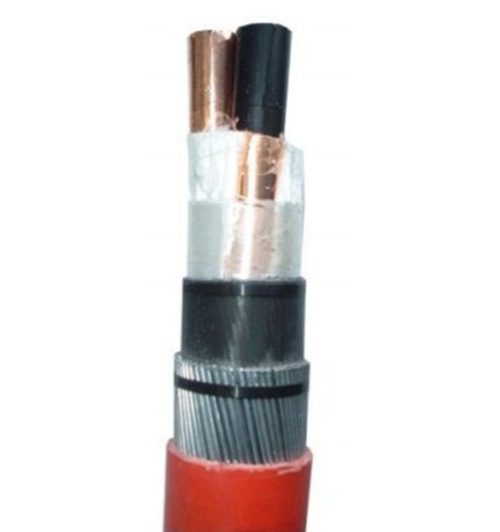

15kv SWA mains armoured power cable to BS6622 and IEC60502-2
Conductor: Plain annealed stranded compacted copper
Core identification: Coloured tape under the screen
Insulation: XLPE (Cross linked polyethylene)
Screen: Semi-conducting layer with a copper tape screen covering each core
Bedding: PVC (Polyvinyl chloride)
Armour/Protection: SWA (Single wire armour)
Sheath/Jacket: PVC (Polyvinyl chloride)
Colour: Red
Operating temperature: Maximum 90°C, minimum bending 0°C.
Standards: BS6622 (PVC) BS6622: Power cables, thermosetting polymer insulated high voltage
IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)
Applications: mains power transmission cables
