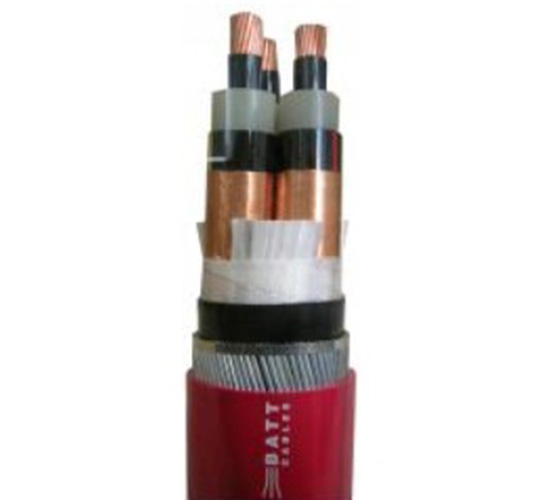

33kv SWA armoured mains power cable to BS6622 & IEC60502-2
Conductor: Plain annealed stranded compacted copper
Core identification: coloured tape under the screen
Insulation: XLPE (Cross linked polyethylene)
Screen: Semi-conducting layer with a copper tape screen covering each core
Bedding: PVC (Polyvinyl chloride)
Armour/Protection: SWA (Steel wire armour)
Sheath/Jacket: PVC (Polyvinyl chloride)
Colour: Red
Voltage: 19000/33000v
Operating temperature: Maximum 90°C, minimum bending 0°C
Standards: BS6622: Power cables, thermosetting polymer insulated high voltage
IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)
Applications: mains power transmission cable
