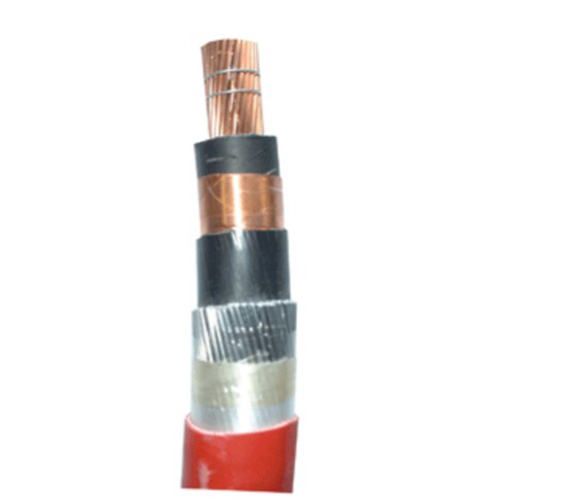

15kv AWA mains armoured power cable to BS6622 and IEC60502-2

Conductor: Plain annealed stranded compacted copper

Core identification: Coloured tape under the screen

Insulation: XLPE (Cross linked polyethylene)

Screen: Semi-conducting layer with a copper tape screen covering each core

Bedding: PVC (Polyvinyl chloride)

Armour/Protection: AWA (Aluminium wire Armour)

Sheath/Jacket: PVC (Polyvinyl chloride)

Colour: Red

Operating temperature:  Maximum 90°C, minimum bending 0°C

Standards: BS6622 (PVC) BS6622: Power cables, thermosetting polymer insulated high voltage
or BS7835 (LSZH) : Specification for armoured cables with extruded cross-linked polyethylene or ethylene propylene rubber insulation for rated voltages from 3.8/6.6kV up to 19/33kV having low emission of smoke and corrosive gases when affected by fire

IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)


Applications: mains power transmission cables
