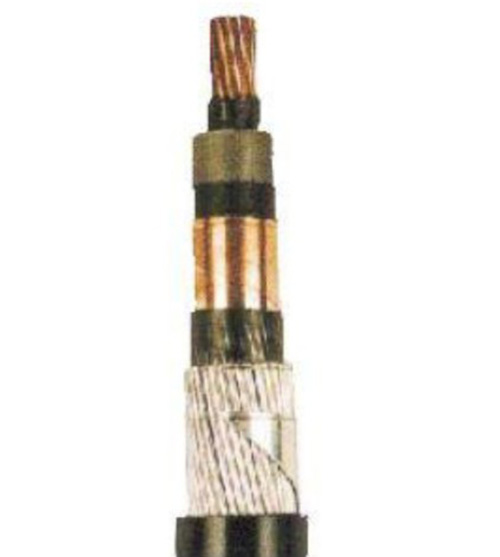

22KV Single core AWA LSZH Cable

22kv AWA LSZH armoured mains power cable to BS7835 & IEC60502-2

Conductor: Plain annealed stranded compacted copper

Insulation: XLPE (Cross linked polyethylene)

Core identification: Coloured tape under the screen

Screen: Semi-conducting layer with a copper tape screen covering each core

Bedding: LSZH

Armour/Protection: AWA (Aluminium wire armour)

Sheath/Jacket: LSZH (Low smoke zero halogen)

Colour: Black/red

Operating temperature: maximum 90°C, minimum bending 0°C

Voltage: 12000/22000v

Standards: BS7835: Specification for armoured cables with extruded cross-linked polyethylene or ethylene propylene rubber insulation for rated voltages from 3.8/6.6kV up to 19/33kV having low emission of smoke and corrosive gases when affected by fire

IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)

Flame Propagation Test to BS EN 60332-1-2:2004 for single cable and BS EN 60332-3-24:2009 (Cat C) for multiple cables

Applications: mains power transmission cable
