Cost-Effective Slab Table Formwork for Building Construction

TCost-effective slab Table Formwork for building Construction

HORIZON table form is designed to be used typically in large area slab concreting. The tables can be shifted horizontally and vertically without being dismantled, which provides a cost-effective and efficient solution for the slab work on site.

Normally, there are 4 standard table sizes for most projects.

- 2.50 x 4.00 m

- 2.50 x 5.00 m

- 2.00 x 4.00 m

- 2.00 x 5.00 m

Advantages:
1. The table formwork is assembled on site and shifted from one area to another without dismantling, thus minimising added risks in erection and dismantling.
2. Very easy assembly, erection and striping, which reduce labor cost.
3. Safety. Handrails are available and assembled in all the perimeter tables, and all these work are done at ground before the tables are put in place.
4. The table height and leveling is quite easy to adjust by means of adjusting props height.
5. The tables are easy to move horizontally and vertically with help of trolley and crane.
6. Can match well with most Euro systems.

Table formwork components:

Components	Diagram / photo	Specification / description
Timber beam H20		Water proof treated Height: 200mm Width: 80mm Length: as per table size 4.8kg/m
Table head		Painted Length: 280mm Width: 235mm Height: 300mm 17kg
Floor Props		Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg
4-way head H20		Galvanized Length: 220mm Width: 145mm Height: 320mm 2.5kg

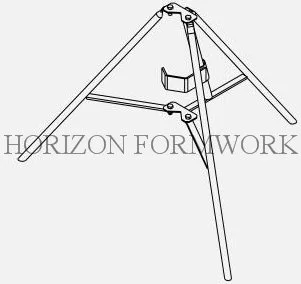

Folding tripod		Galvanized For holding floor props 8.5kg

Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
