EARTHING & LIGHTNINGPure Copper Earth RodCopper Bonded Steel Earth RodClamps And FittingsClamps And BondsAir Termination RodsBus BarConductorsTape ClipSquare Tape Clamp

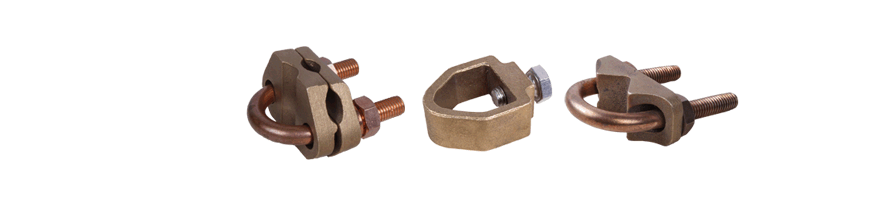

Earthing clamps are used to connect earth electrode (earth rods) with conductors or tapes. The clamps are made of gunmetal.
Earthing clamps are used to connect earth electrode (earth rods) with conductors or tapes. A Type Clamps are one type of earthing clamp, used to join earth rods and copper tapes. The earth rod and tape passes through the clamp body and a screw fastener secures both together. A clamps are made of gunmetal or brass.
| SIZE | MATERIAL | PART NO |
|---|---|---|
| 26 x 12mm | Gunmetal | EXA-2612 |
| 31 x 12mm | Gunmetal | EXA-3112 |
| 40 x 10mm | Gunmetal | EXA-4010 |
| 51 x 8mm | Gunmetal | EXA-5108 |
| * A clamps are available in Brass also. | ||
| ** Choice of fastners include MS / Brass / SS | ||
Earthing clamps are used to connect earth electrode (earth rods) with conductors or tapes. G Type Clamps are one type of earthing clamp, used to join earth rods and copper circular conductors. The earth rod and conductor passes through the clamp body and a screw fastener secures both together. G clamps are made of gunmetal or brass.
| SIZE | MATERIAL | PART NO |
|---|---|---|
| 1/2" | Gunmetal | EXG-12 |
| 5/8" | Gunmetal | EXG-58 |
| 3/4" | Gunmetal | EXG-34 |
| 1" | Gunmetal | EXG-1.0 |
| * G clamps are available in Brass also. | ||
| ** Choice of fastners include MS / Brass / SS | ||
Earthing clamps are used to connect earth electrode (earth rods) with conductors or tapes. E Type Clamps are one type of earthing clamp, used to join earth rods and copper tapes. The earth rod passes through the clamp body while the copper tape is fitted through the U Bolt. E clamps are made of gunmetal or brass.
| SIZE | MATERIAL | PART NO | MATERIAL |
|---|---|---|---|
| 16mm | Gunmetal | EXE-16 | Gunmetal |
| 20mm | Gunmetal | EXE-20 | Gunmetal |
| 25mm | Gunmetal | EXE-25 | Gunmetal |
| 31mm | Gunmetal | EXE-31 | Gunmetal |
| 38mm | Gunmetal | EXE-38 | Gunmetal |
| 50mm | Gunmetal | EXE-50 | Gunmetal |
| * E clamps are available in Brass also. | |||
| ** Choice of fastners & U bolt include MS / Brass / SS | |||
