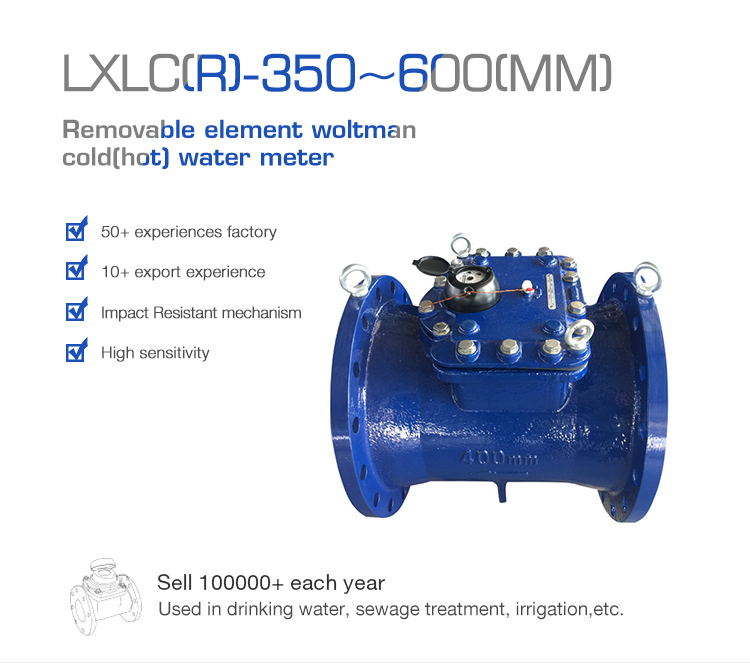

LXLC-350-600MM industrial woltman water meter

Application

Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for home or apartment.

Features

Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline.

Dry-dial, Magnetic drive sensitive action, small pressure loss.

Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service.

Selected high quality materials for steady & reliable charac teristic.

Technical data conform to international standard ISO 4064.

With high accuracy

Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter

Optional Features

Plastic register, copper register and full glass register.

Accuracy: R=50.

Size: DN350-600mm(14inch-24inch).

Cold / Hot water.

Reed switch option.

Flange standard can be choose.

360 degree rotate can be choose.

Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose.

Working pressure: PN16/25(16bar/25bar).

Color can be change on body and cover.

Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display

Working Condition

Water temperature: 0.1℃～50℃ ( 0.1℃～90℃ for hot water meter).

Water pressure: ≤1Mpa (1.6MPa for special requirement).

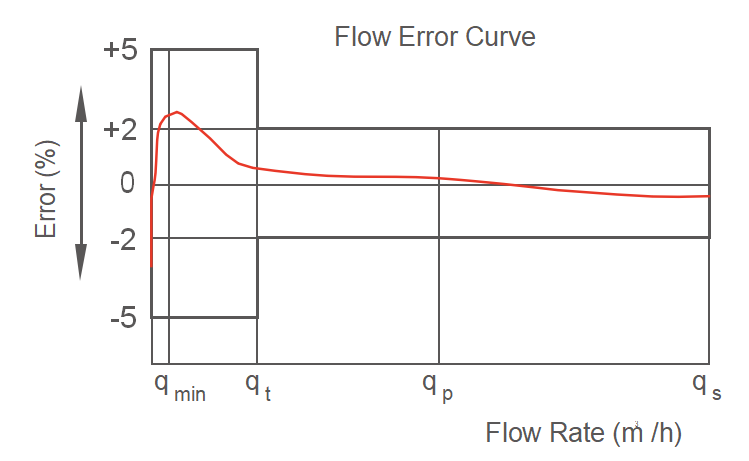

Maximum Permissible Errors

In the lower zone from qmin inclusive up to but excluding qt is ±5%.

In the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter).

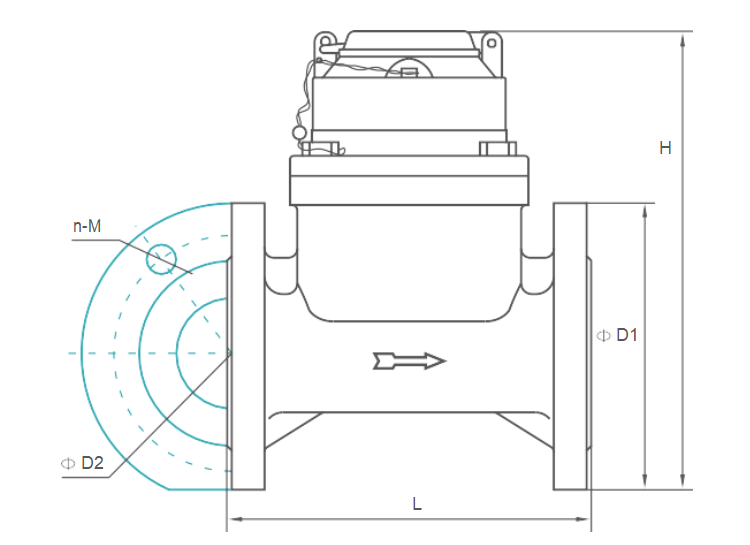

Dimensions

NOTE: The flange dimension conforms to ISO7005-1:1988 standard. Flange standard can be customized. Order for products of special requirements

Main Technical Specifications

Warranty

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS.

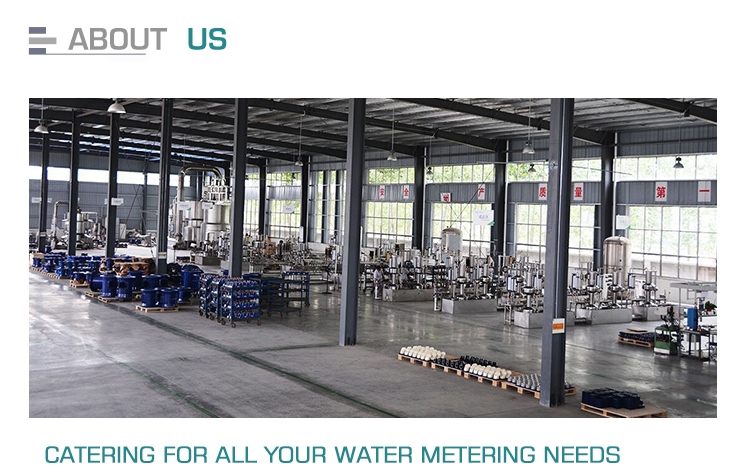

You need a good solution for water metering---Catering all your needs.
