LXLC-50-300MM industrial woltman water meter

Application

Measuring the volume of cold(hot) water passing through the pipeline.Water meter is used for home or apartment

Features

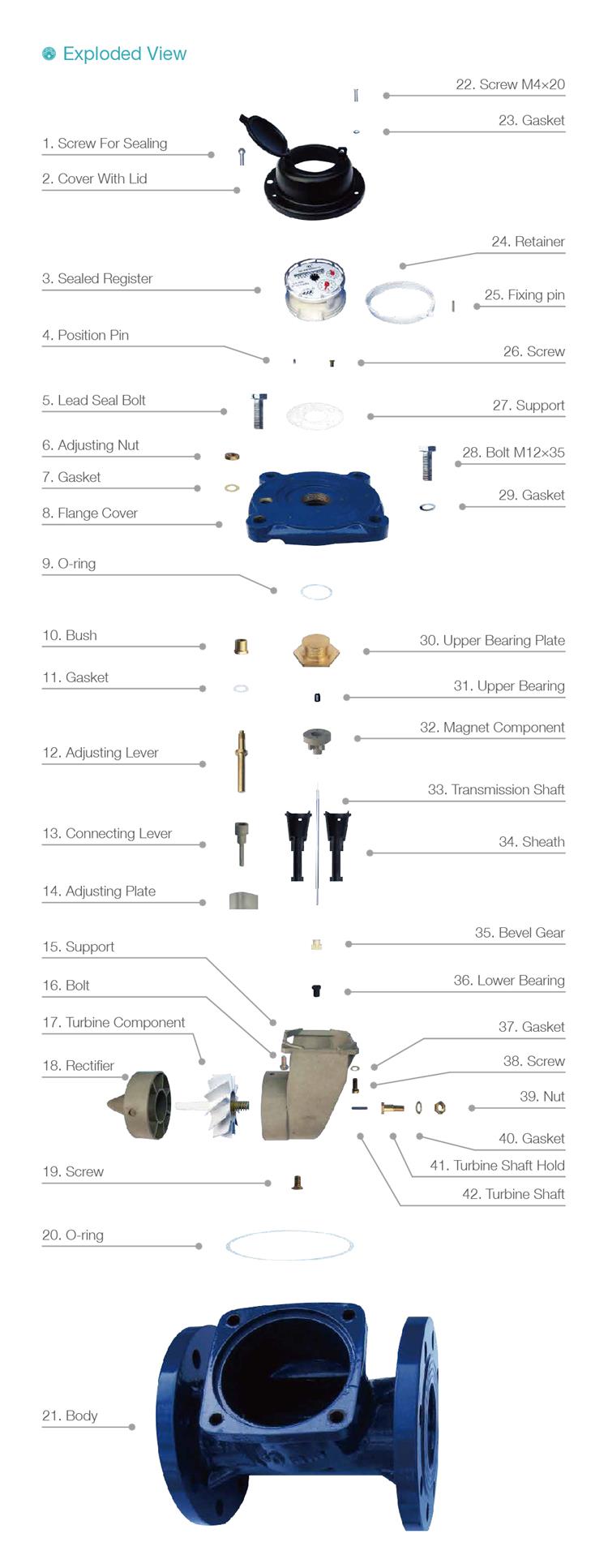

Removable element structure,easy installation and mainteance,register for universal use within this range detachable without Removing the meter from the pipeline

Dry-dial,Magnetic drive sensitice action,small pressure loss

Vacuum sealed register ensures the dial keep free from fog and keep.the reading clear in a long term service

Selected high quality materials for steady and reliable characteristic

Technical data conform to international standard ISO 4064

With high accuracy

Product accessories include connectors,filters,connection accessories,pipe accessries,Flange,filter

Optional Features

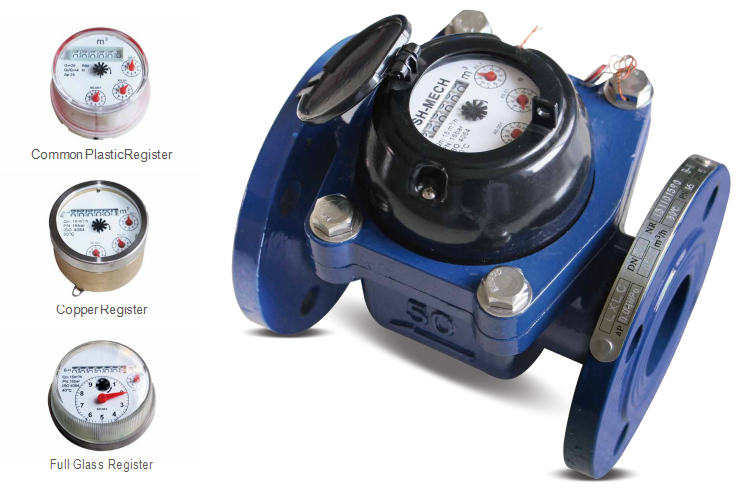

Plastic register,copper register and full glass register

Accuracy:R=class b

Size:DN50-DN300

Clod/Hot water

Reed switch option

Flange standard can be choose

360 degree rotade can be choose

Cast iron,Ductile iron,stainless steel,GG25,GG50,SS304,SS316 body can be choose

Color can be change on body and cover

Provide pulse output

Working Condition

Water temperature:0.1℃-50℃(0.1℃-90℃ for hot water meter)

Water pressure:PN10/16/25

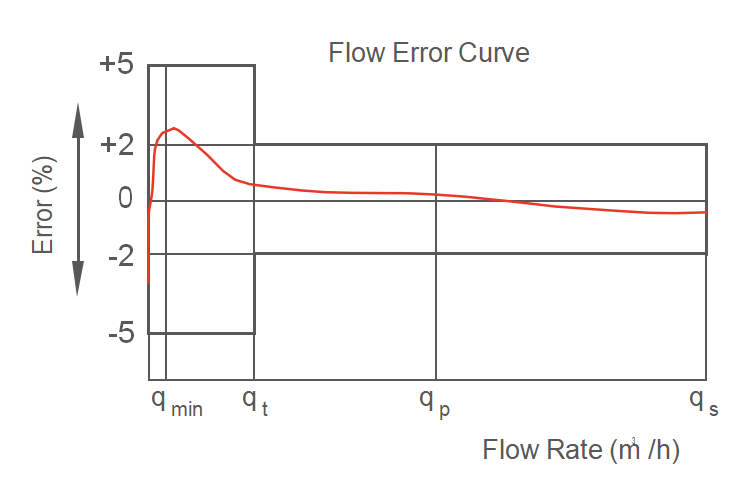

Maximum Permissible Errors

in the lower zone from qmin inclusive up to but excluding qt is ±5%

in the upper zone from qt inclusive up to and including qs is ±2%(±3% for hot water meter)

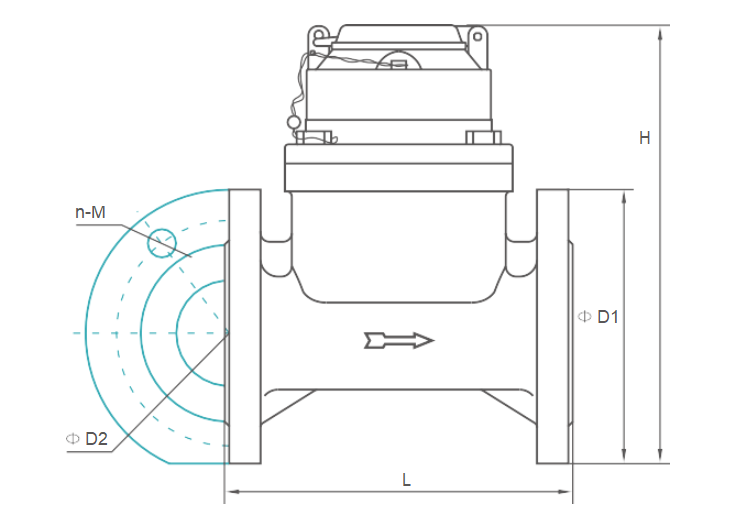

Dimensions

NOTE:The flange dimension conforms to ISO7005-1:1988 standard.Flange standard can be customized

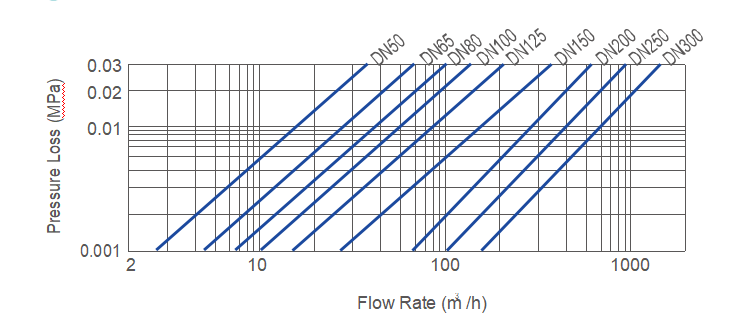

Pressure Loss Curve

Flow Technique Specification

The Opetation Description Of The Two Reed Switches System

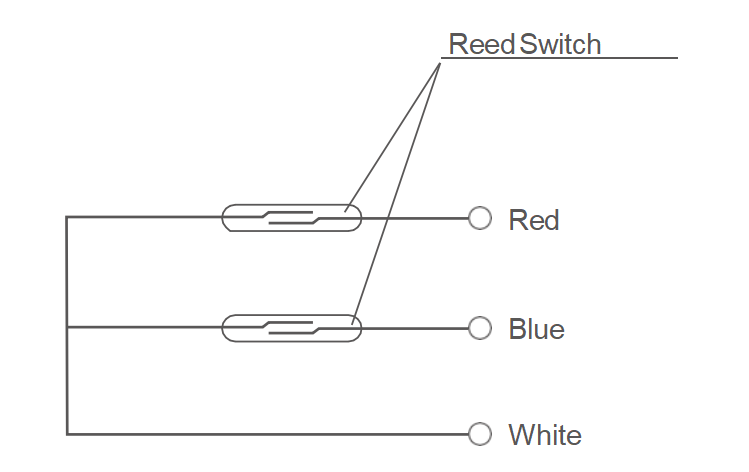

Please see the diagram of the two reed switches system below,the two reed switches woud be operated "ON" or "OFF" respectively by the magnet fitted to the pointer or gear during its running on the register,but never "ON" at the same time,unless the out-magnet attackes

The two reed switches operate two "ON" and two "OFF" in one round of the pointer or the gear means one signal output,this principle prevent the loss or overcounting of the signal output due to the switches joggling or the pipe vibrating,so assures reliability of the signal output

Warranty

All meters will be guaranteed against defects in workmanship and material for a period of one(1) year from the date of acceotance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS
