Business Type: Manufacturer
Main Products:film blowing machineplastic film blown machineABA plastic film blown machinefilm extruder machineplastic film extrusionABC film blowing machinebiodegradable plastic film blowing machineTable cover film blowing machine
ID:20120446524
Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds
MOQ:1.00 Piece(s)
film blowing machineblown film extruderextrusion filmblown extrusionblown film plantblown film extrusion machinefilm extruder machineplastic film extrusionblown film machineblown machine
L/CT/T
1 Ceramic heater: Fast heating and save power cost long life
2 Simens Beide motor
3 SCREW: SAMC645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY with water cooling
4 Single winder with stainless roller and auto loader 1set
5 Auto Ioader with Mick computer controler 1set
6:Mick PLC Controller

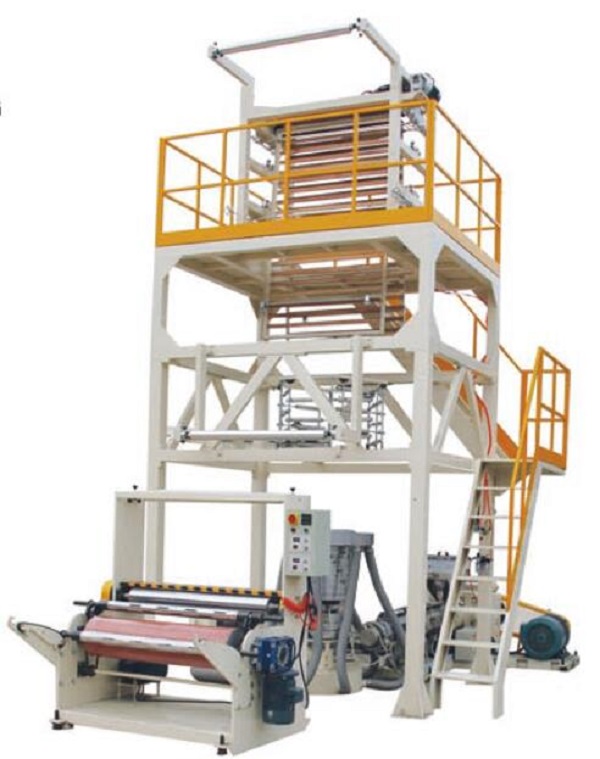

Technical parameters
| Model | CHSJ-MH | |
| MH-45/700 MH-50/900 MH-65/1200 MH-75/1400 | ||
| Suitable raw materials | HDPE,LDPE,LLDPE | |
| Width of the film | T-shirt bag | 200-420mm 250-600mm 300-1000mm 500-1200mm |
| Flat bag | 200-600mm 250-800mm 500-1100mm 500-1300mm | |
| Film thickness | 0.006-0.1 mm | |
| Max. output capacity | 80kg/h 100kg/h 135kg/h 145kg/h | |
| Average power consumption | 10kw/h 15kw/h 20kw/h 30kw/h | |
| Overall dimension | 5.0×2.1×4.3m 5.0×2.2×4.5m 6.5×3.2×5.2m 6.8×3.5×5.6m | |
| Diameter of screw | φ45 φ50 φ65 φ75 | |
| L/D ratio of screw | 30:1 | |
| Rotation speed of screw | 10-120r/min | |
| Screw/Barrel material | SACM645/38CRMOLA | |
| Gear box | 146# 173# 200# 225# | |
| Main motor | 15KW 18.5KW 30KW 37KW | |
Packaging & Shipping
Package: the machine could be packed by film or wooden boxes.
Shipment: from tianjin,China port to destination port
About us:
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years
Q2:Where is your factory located? How can I visit there?

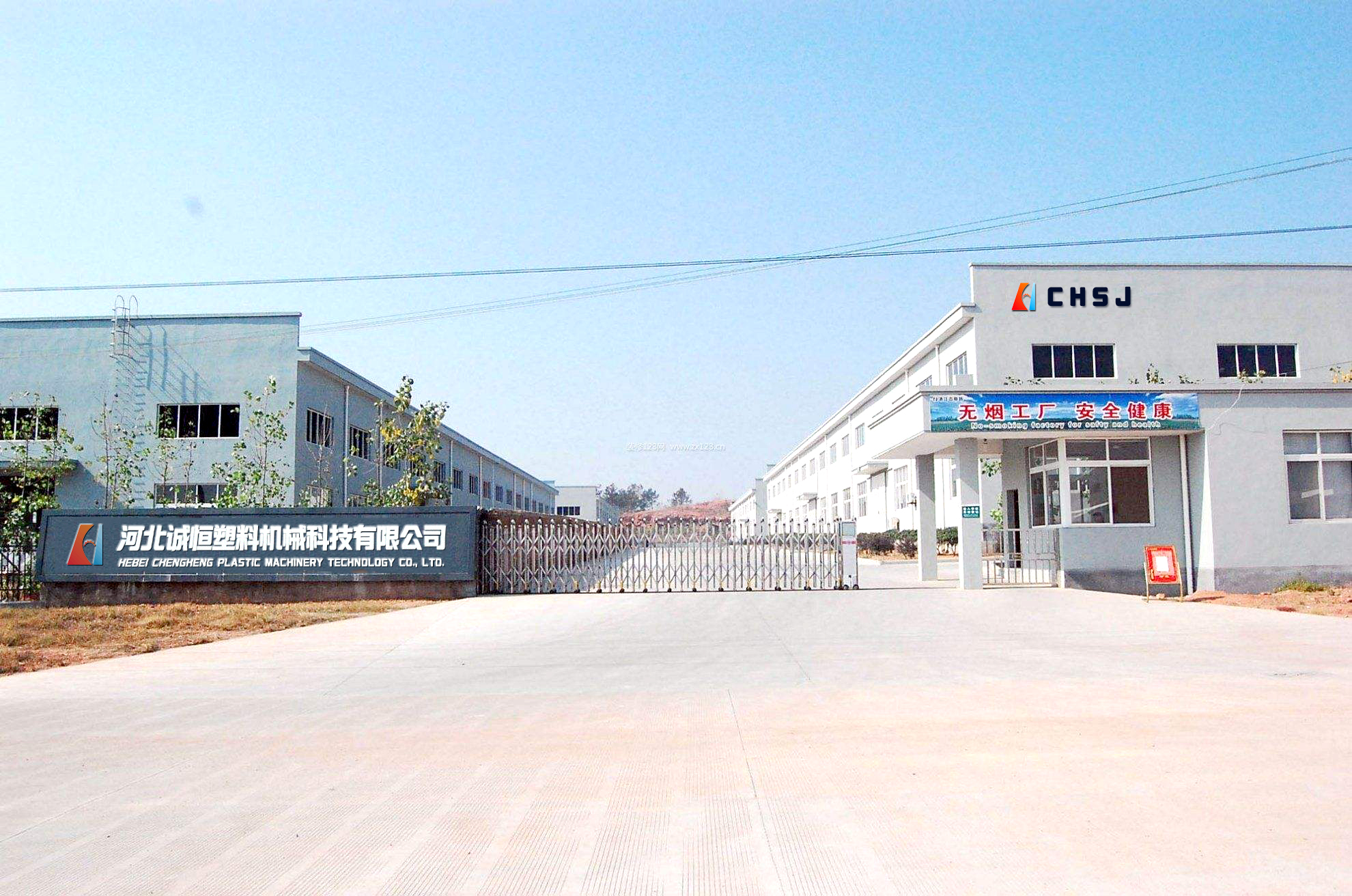

A2: Our factory is located in Xingtai city, Hebei Province, China, about one hour by high train from Beijing. All our clients,from home or abroad, are warmly welcome to visit us!
Q3: How about the payment term?
A3: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q4: What about your main market?
A4: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q5:What about warranty and do the engineers available to overseas?
A5:5 year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
