Product Category
Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds
Trademark
chengheng
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:film blowing machineplastic film blown machineABA plastic film blown machinefilm extruder machineplastic film extrusionABC film blowing machinebiodegradable plastic film blowing machineTable cover film blowing machine
ID:20120446544
Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds
MOQ:1.00 Piece(s)
blown film machineplastic film blowing machineplastic extrusionfilm extruder machineblown machinefilm extruder
L/CT/T

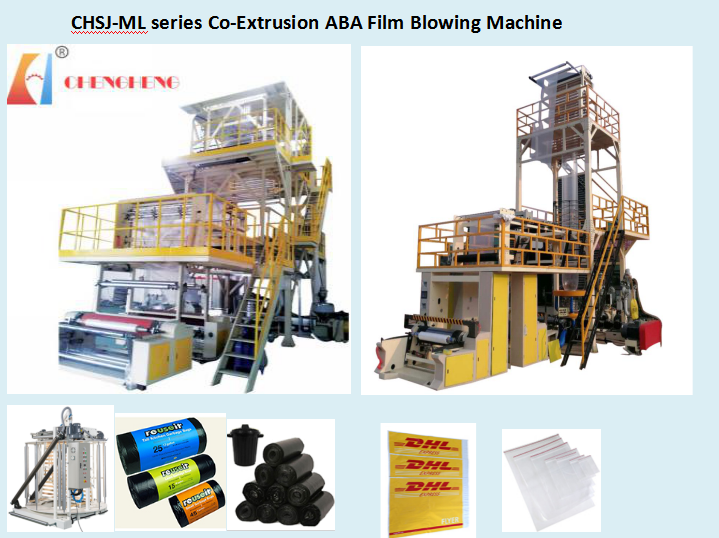

ML-ABA/45-45/900 | ML-ABA/50-50/1200 | ML-ABA/55-55/1400 | ML-ABA/65-65/1600 | ML-ABA/75-75/2000 | ||
Film width | T-shirt bag | 200-620mm | 250-600mm | 300-1000mm | 500-1200mm | 1200-1600mm |
Flat bag | 200-800mm | 250-800mm | 500-1100mm | 500-1300mm | 1200-1800mm | |
Film thickness | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | |
max output | 80-90kg/h | 90- 125kg/h | 100- 150kg/h | 120- 175kg/h | 120-200kg/h | |
According to different width,thickness of film, die size and raw material characteristics to change | ||||||
Raw material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | |
Diameter of screw | Φ45/45,30/1 | Φ50/50,30/1 | Φ55/55,30/1 | Φ65/65,30/1 | Φ75/75,30/1 | |
SACM 645 ,bimetallic ，five years guarantee | ||||||
Main motor | 15kw ,15kw | 18.5kw ,18.5kw | 30kw ,30kw | 37kw,37kw | 37kw,37kw | |
100% Original three-phase variable frequency motor Equipped with inverter control | ||||||
Take up roller(mm) | 700/900mm | 1200mm | 1400mm | 1600mm | 1800mm | |
2800kg | 3200kg | 3800kg | 4200kg | 4800kg | ||
Machine size | 6.5*2.7*5 | 6.5*3*5.8 | 6.5*3.8*6.2 | 6.8*4*6.8 | 6.8*4*7.2 | |
Optional device:
Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC(Internal Bubble Cooling Computer Control System)
EPC(Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Xingtai city, Hebei Province, China, about one hour by high train from Beijing. All our clients,
from home or abroad, are warmly welcome to visit us!
Q3: How about the payment term?
A3: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q4: What about your main market?
A4: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q5:What about warranty and do the engineers available to overseas?
A5:5 year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q6:What about the service after sale?
A6: when you have bought our machine, you can call us or email us telling us the machine problems and any questions about the
machines. We will reply to you with 12hours and help you to slove the problem.

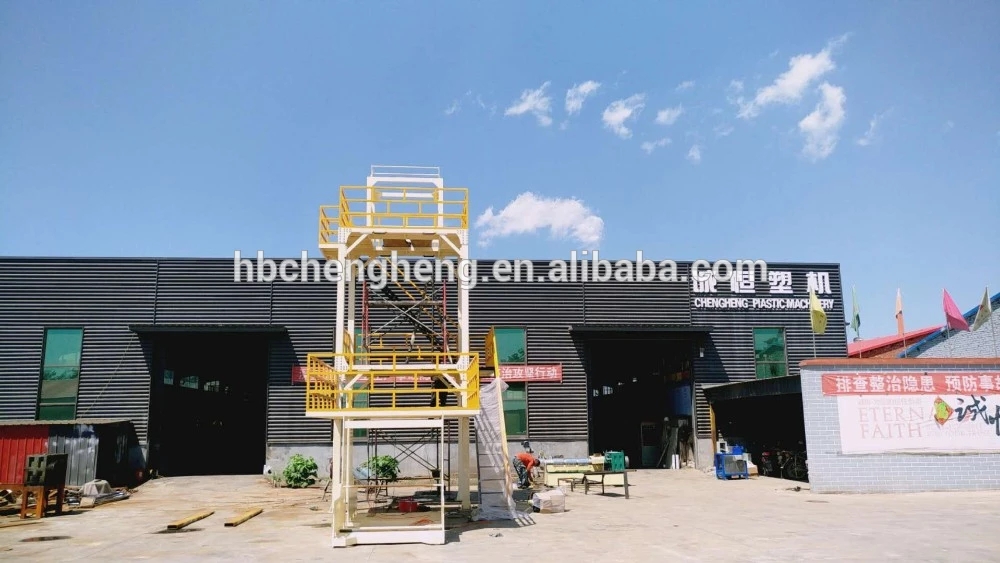

Our Company
