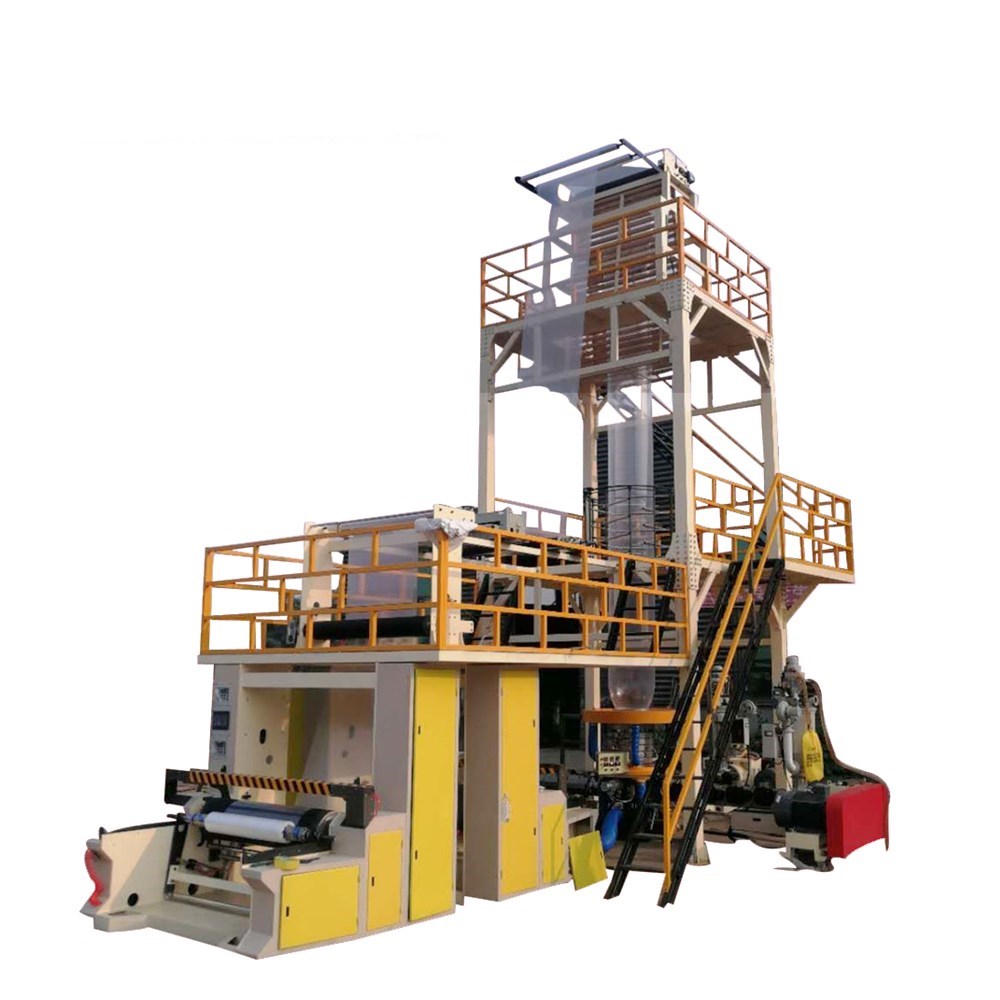

ABA film blowing machine

ID:20120446628

Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds

FOB Price:US$ 16600.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

ABA blown film extruderextrusion filmABA blown extrusionblown film plantblown film extrusion machine3 layer blown film machine

Payment Method:

L/CT/TWestern UnionPaypalMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds

Trademark

Product Package

Specification

Place of Origin

Port

tianjin

Product Description

Main Features

1 Ceramic heater: Fast heating and save power cost
2 Simens motor and Inverter control
3 SCREW: SACM645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY
4 Special ambdoidal board
5 Auto Ioader with dryer good for using recyle material
6 Corona treatment

Product paramenters

MODEL	ABA-50-50/1200	ABA-55-55/1400
WIDTH OF THE FILM	200-1100mm	350-1300mm
THICKNESS OF THE FILM	0.006-0.15mm	0.006-0.15mm
OUTPUT	125kg/h	155kg/h
POWER CONSUMPTION	25KW/H	28KW/H
RAW MATERIAL	ldpe/hdpe/lldpe/recycle/coca3
DIAMETER OF SCREW	Φ50 Φ50，30/1	Φ55，Φ55，30/1
DIAMETER OF SCREW	SACM645 steel with hard with nitrogen with bimetallic treatment,5years warranty

* The specification are subject to be changed for improvement without notice.

Detailed Images

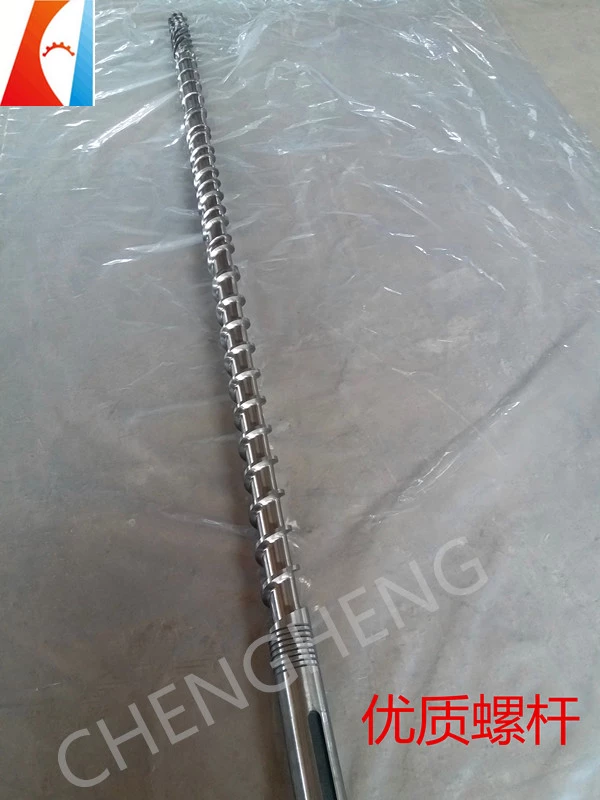

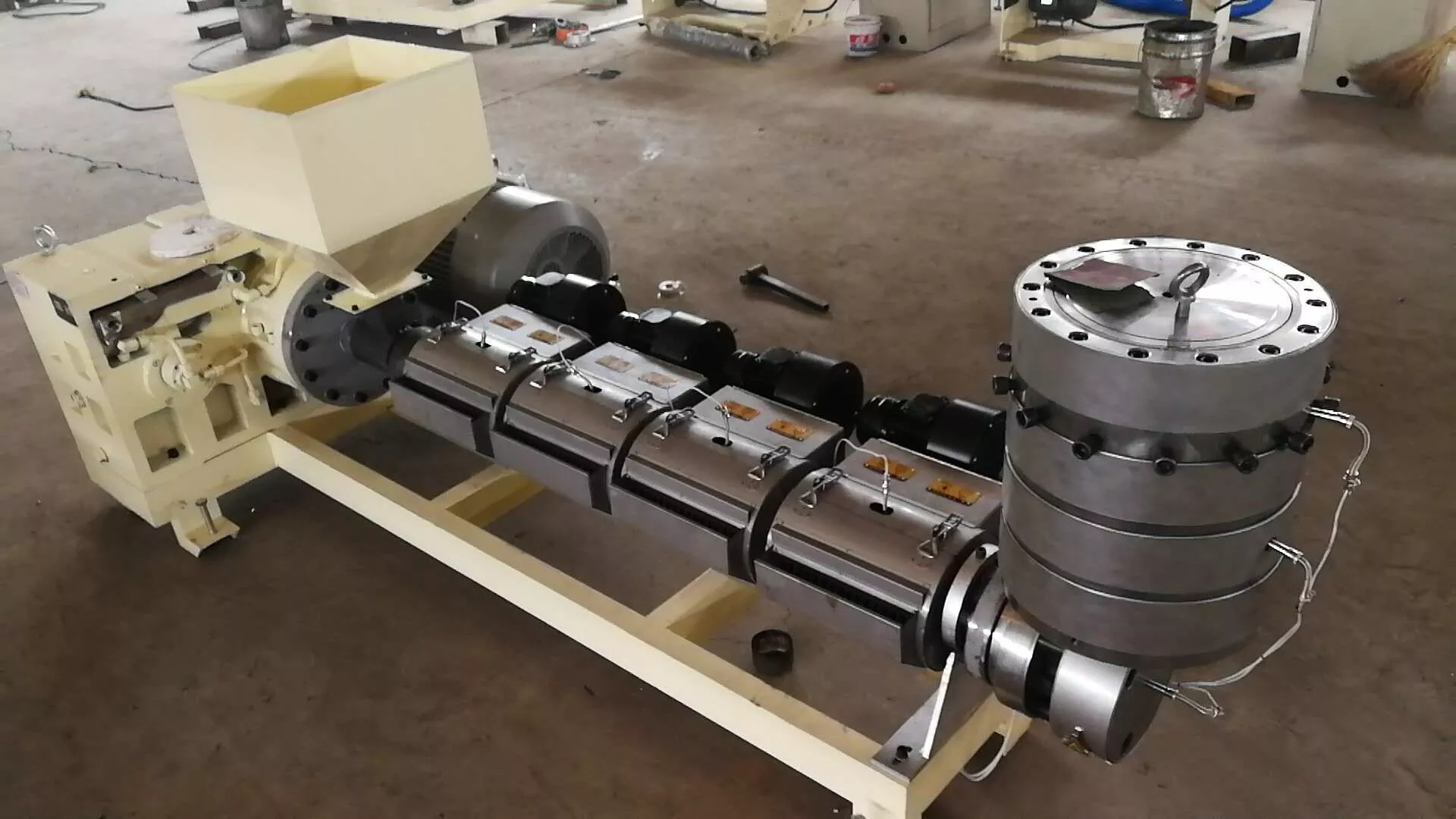

Screw

1.Material: SAMC645 or 38CrMoAlA with Nitriding treatment, alloy layers 3mm

2. L/D ratio of screw: 30:1 or 32:1
3. Rotation speed of screw: 10-120r/m

Ceramic heater

Fast heating and save power cost long life, It is divided 4 zone. If one part bad, the other can still work. This is more better than the integrated.

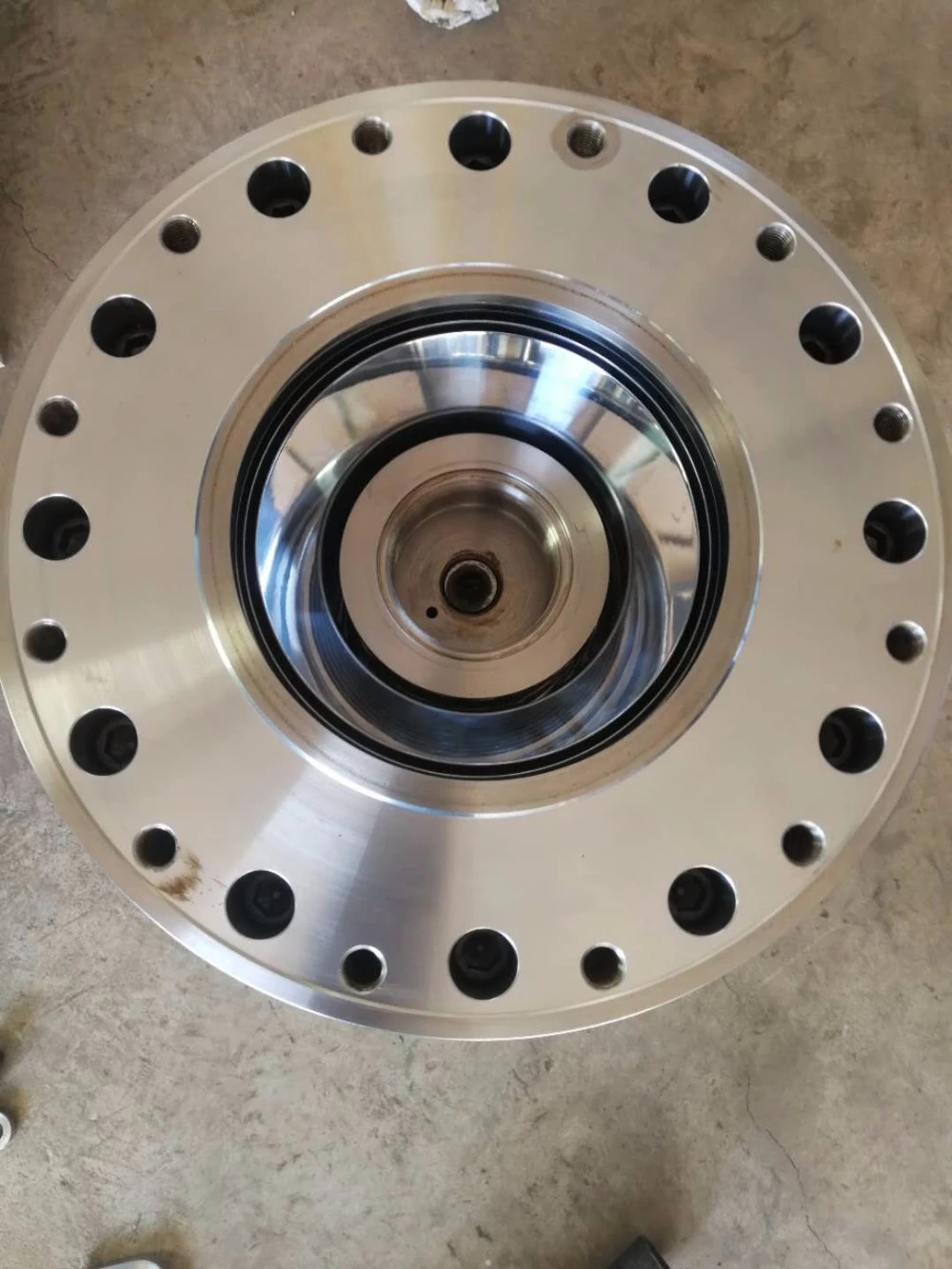

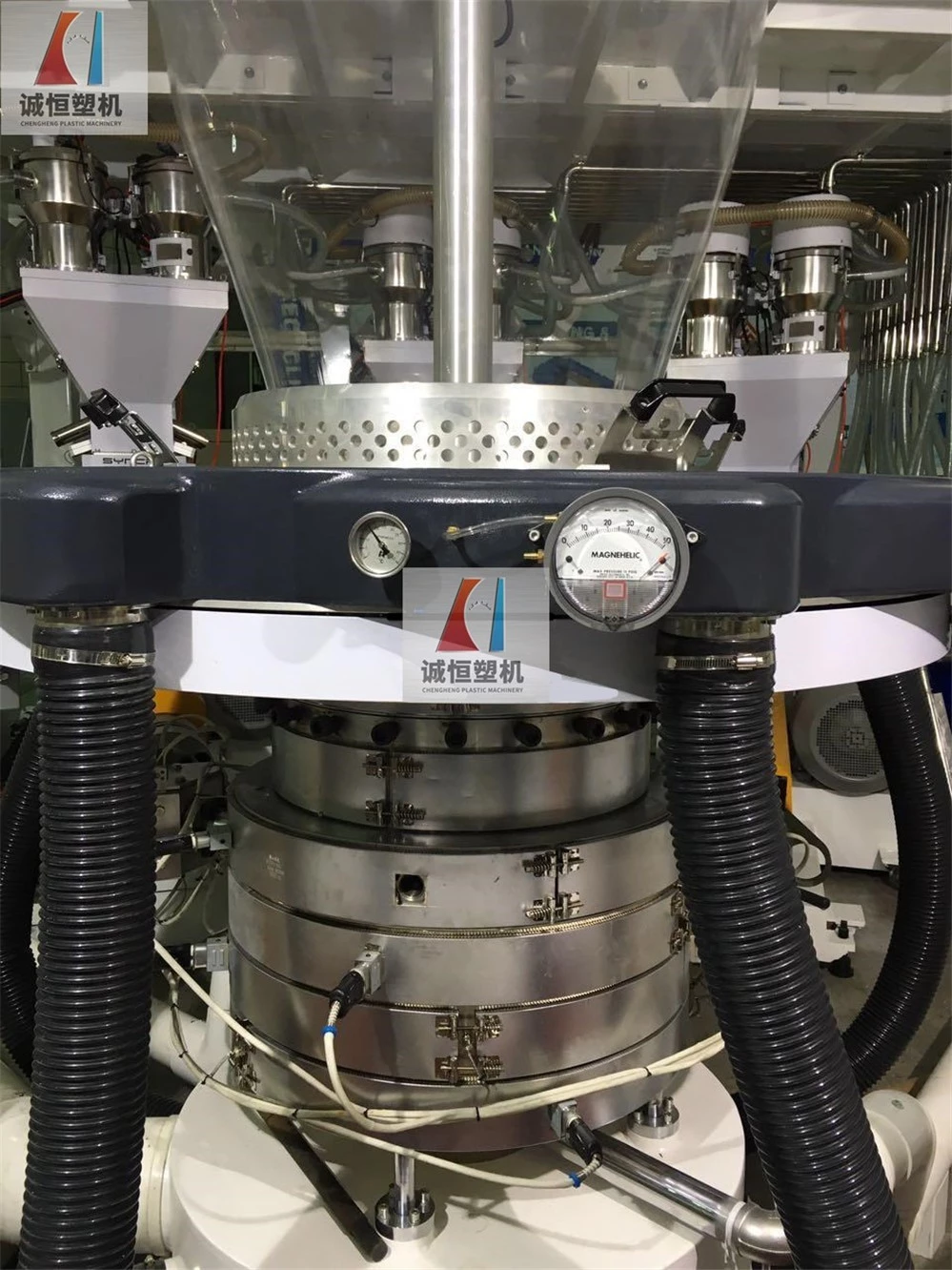

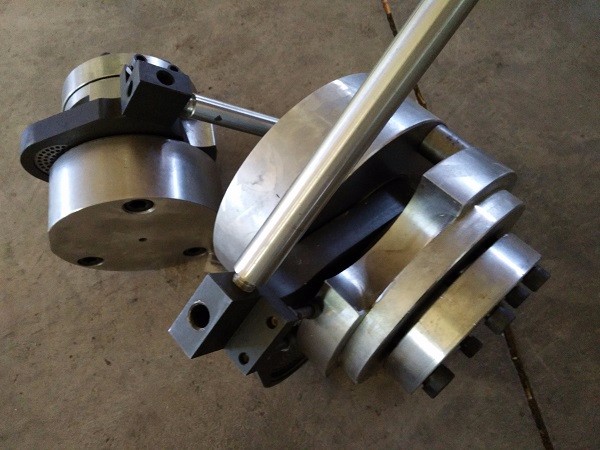

Die head

1. With 40Cr steel, quenched and tempered, hard chrome plated and polished treatment, chrome plating layer uniform,high finish,
wear resistance and corrosion resistance. It is very smoothly inside.

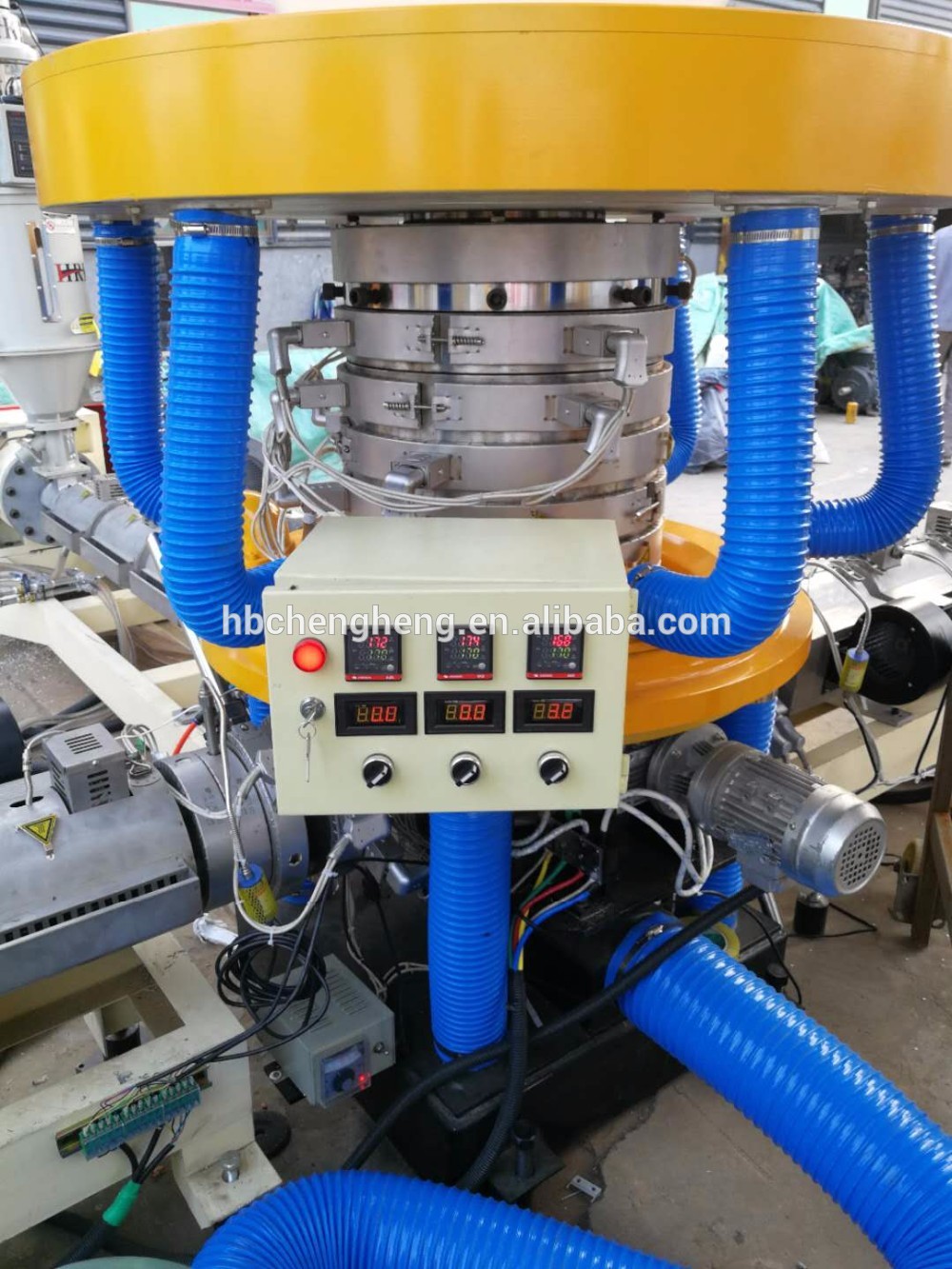

Air ring

1. Double Lip air ring2. High speed blower to cool the film, cooling fast.
3. New type of air ring is optimized and the air volume is adjusted evenly and stably.

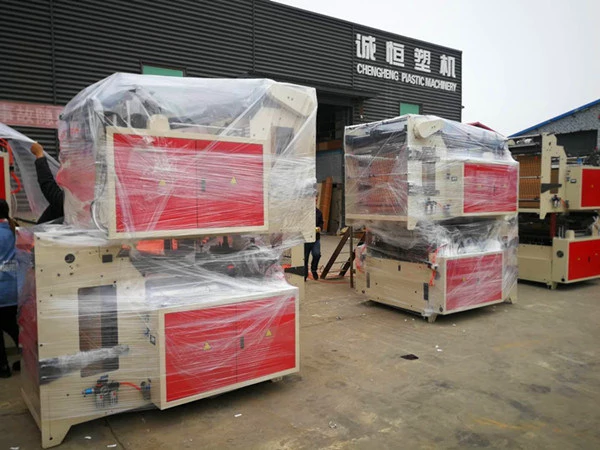

Packing & Delivery

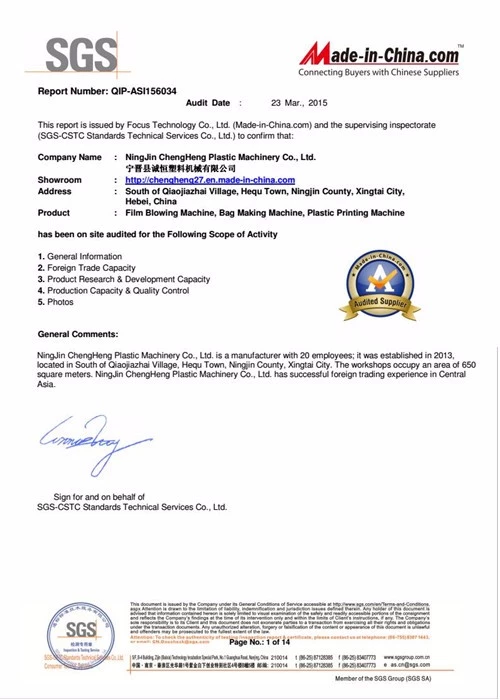

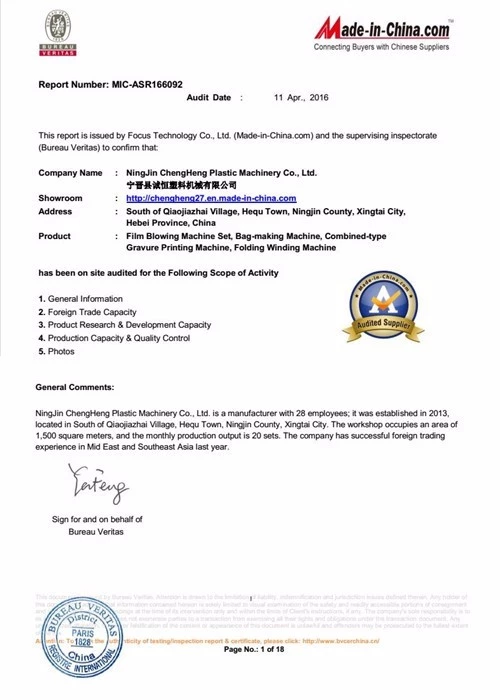

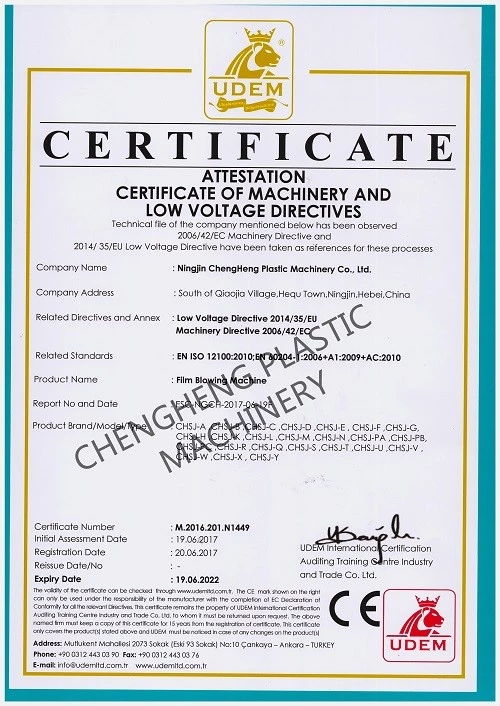

Certifications

FAQ

Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.

Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Xingtai city, Hebei Province, China, about one hour by high train from Beijing. All our clients,
from home or abroad, are warmly welcome to visit us!

Q3: How about the payment term?
A3: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.

Q4: What about your main market?
A4: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.

Q5:What about warranty and do the engineers available to overseas?
A5:5 year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.

Q6:What about the service after sale?
A6: when you have bought our machine, you can call us or email us telling us the machine problems and any questions about the
machines. We will reply to you with 12hours and help you to slove the problem.

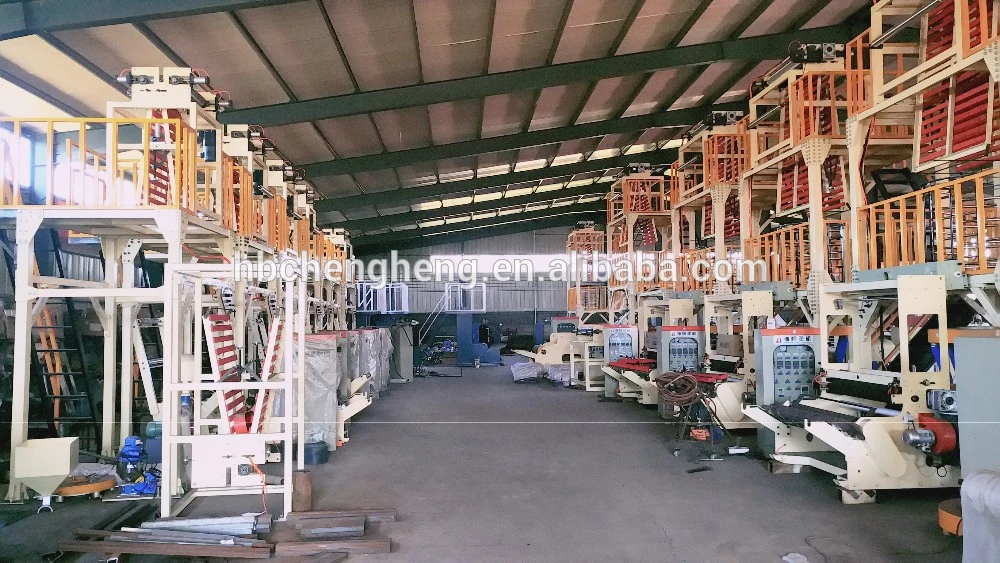

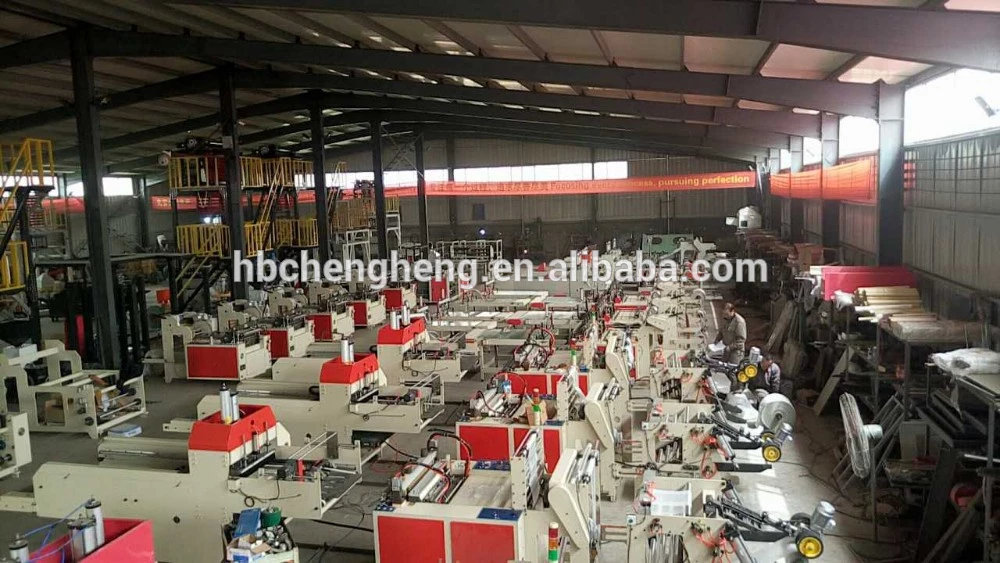

Our Company
