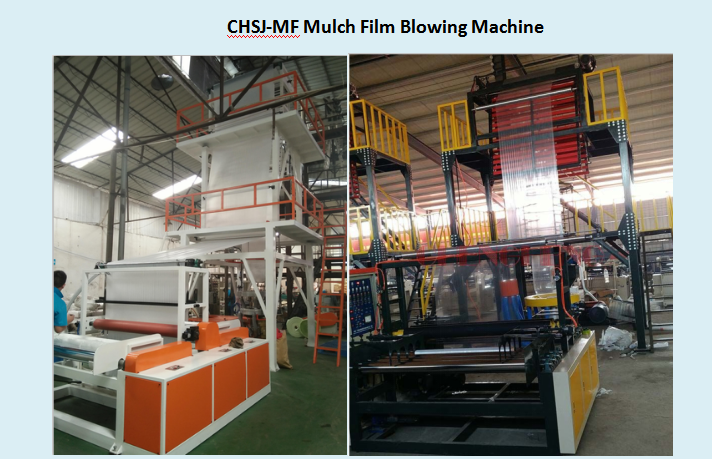

Mulch Film Blowing Machine

Model

   □Q-50/1300    □Q-60/1600  □Q-75/1800

Film width (mm)

 □300-1200mm  □500-1500mm □500-1700mm

Film thickness

0.006-0.08mm

max output

  □55kg/h   □75kg/h  □85kg/h
According to different width,thickness of film, die size and raw material characteristics to change

 suitable material

HDPE/LDPE/LLDPE

Diameter of screw

□Φ50，30/1   □Φ60,30/1  □Φ75,30/1

SACM 645 ,bimetallic ，five years guarantee

Main motor

□18.5kw  □22kw  □30kw
100% Original three-phase variable frequency motor

 Equipped with inverter control

Take up roller(mm)

□1300mm  □1600mm   □1800mm

Weight

   □2800kg  □3500kg  □4200kg

Overall dimension（L*W*H）m

□6*3.6*5.2  □6.5*4*5.8   □6.5*4.2*6.2
