Overview

· Ultrasonic water meter's intelligent measuring instrument is consist by the temperature sensor , ?ow sensors and calculators.

· Could provide important application and data for many applications

in the pipeline.

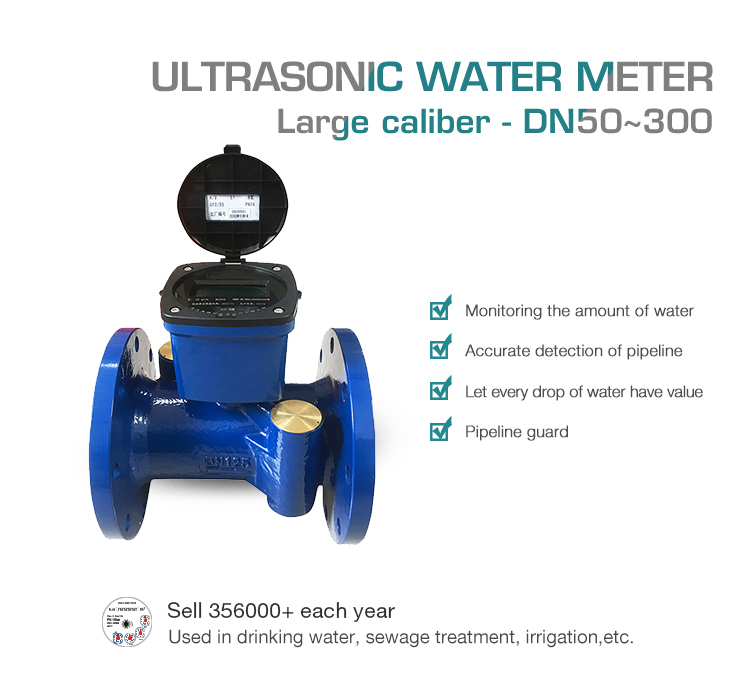

· Ultrasonic water meter is suitable for application environments requiring high range ratio（Q3/Q1）and forward and reverse metering.

· Calculator used sensor and through the time difference to collect temperature differences and sound waves to complete accurate measurement of water ?ow. And can provide important application and data for many applications.

Working principle

The meter comprises the quality temperature sensor ,the ?ow sensor and the calculator. The temperature sensor to measure the temperature of water and the ?ow sensor to measure the volume of water that ?ow through the pipelines by the transit time difference.

The two data is sent to the calculator after being collected, the consumption water quantity is worked out, stored and indicated on the LCD ?nally.

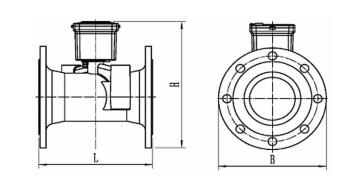

Outline dimensional drawing

Outline dimension

Technical parameter

NOTE: The ?ange dimension conforms to ISO7005-1:1988 standard. Flange standard can be customized. Order for products of special requirements is also accepted.

You need a good solution for water metering---Catering all your needs.

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SHMETERS have already become one the main important exporter for water flow meters in China.
We will provide your product to your hand in timely manner and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection, strictly cost control and five star quality services, we believe that you will own a more solution on water metering.
