Split STS Prepaid Water Meter

Split STS Prepaid Water Meter

llngress protection IP68 waterproof

lUP to 8 years battery life

lAutomatic valve controling

lSTS Standard

lReal-time clock

lUtilities can set step price into meter on request

lAnti-Tamper Magnetic field protection

lLORA-RF communication ( CIU)

lPay by mobile payment:M-PESA,Alipay,MTN,Airtel,etc.

BRIEF PRODUCT INTRODUCTION

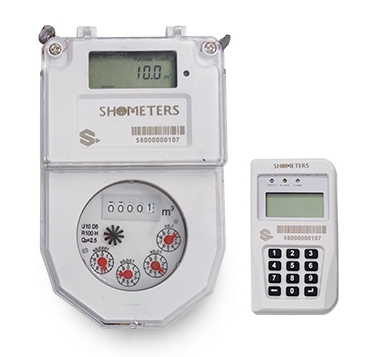

The product is an STS Standard compliant, split keypad type, automatically valve controlled prepaid water meter.

The integrated keypad is offered to enter recharge TOKEN and check information by short codes.

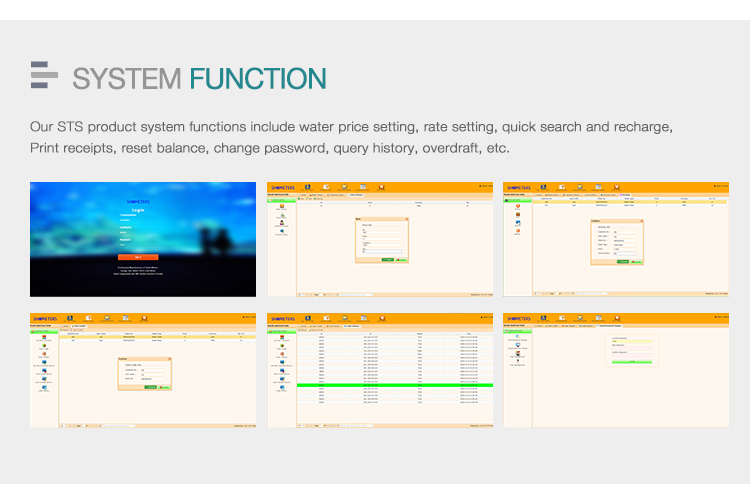

Stronpay water vending software could be integrated to local Mobile Money Payment Platform like M-PESA,Alipay,MTN,Airtel, etc.

So users can top up PAYG water by mobile money without leaving the house.

Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue water protection and consumer management.

Customer Interface Unit (CIu), is offered to enter recharge tokens and information by short codes.

The ClU is installed inside customer's house, when the meter is kept away from customer's reach in lockedboxes or houses.

TECHNICAL INDEX AND SPECIFICATIONS

1.Nominal Values

2.Metrological parameters-Directive 2004/22/EC(MID)&EN 14154:2007

3. Dimensions and diagram

BASIC FUNCTIONALITY

Function	Details
Prepayment	STS Standard,recharge by input 20digits TOKEN.
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN.
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode.
Non-return valve	Non-return valve inside for preventing back-flow.
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event.
Step Tariff	Step Tariff can be set by inputting correspnding TOKEN.
Overdraft Collection	Non-Revenue water (Overdraft) can be collected day by day or month by month.
Communication	The meter is available with AMI system through GPRS or Bluetooth 4.0 on request.
Information Inquiry	Consumer could check the data like Credit Remain,Total Purchased and Total  Credit by input the short code.

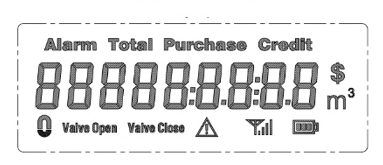

Liquid Crystal Display

CIU

Tokens can only be keyed in when the ClU is powered on, when the ClU powered on and it read water meter first, if read success the ClU display the water meter information.ric type water meter,which comply with OIMLR49,ISO4064.And conforms to STS standard protocol.

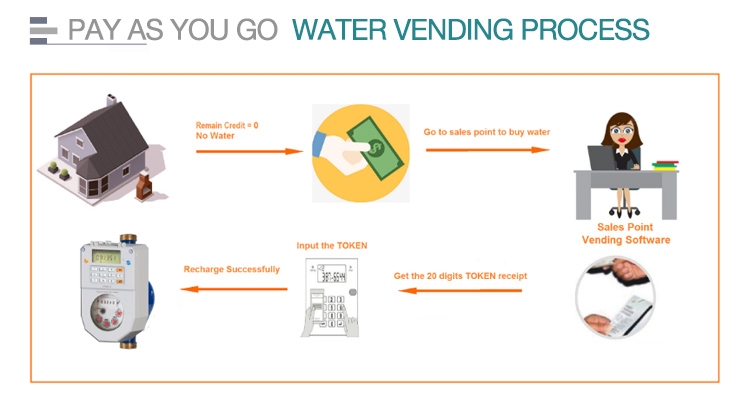

Water Purchase

(1) Please go to the local selling water business hall.

(2) To provide operator meter ID number ( lD numberprinted on the water meter ).

(3) Tell the operator how much you want to buy andprepay.

(4) On the receipt, you can get a printed TOKEN "20(Digits)"

You need a good solution for water metering---Catering all your needs.

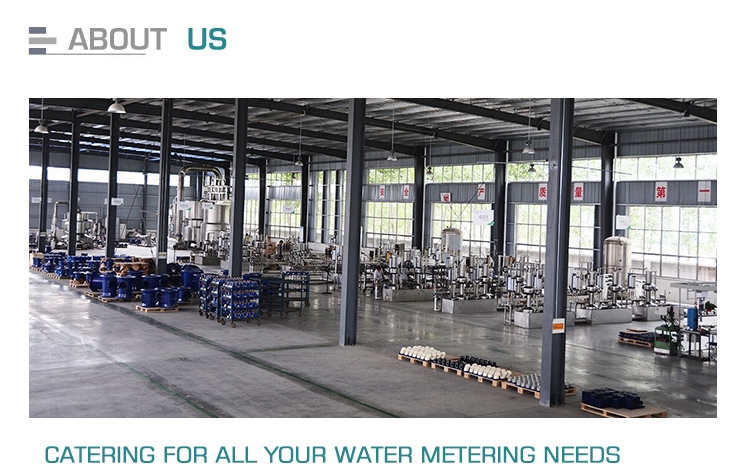

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SH-MECH Meters have already become one the main important exporter for water flow meters in China.
