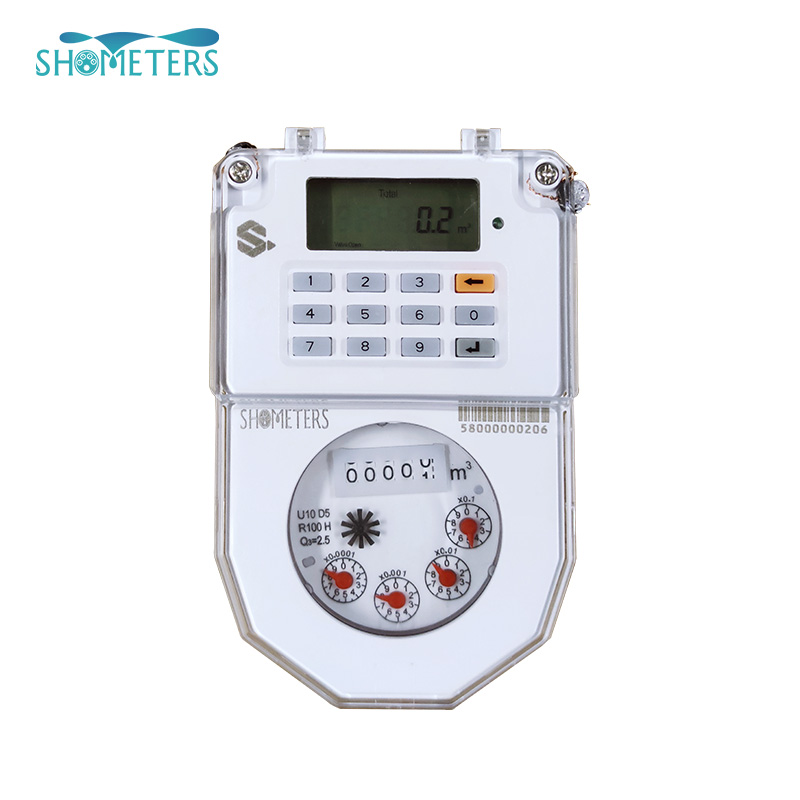

STS Integrated Prepaid Water Meter

llngress protection IP67 waterproof

lUP to 8 years battery life

lAutomatic valve controling

lSTS Standard

lReal-time clock

lUtilities can set step price into meter on request

lAnti-Tamper Magnetic field protection

lLORA-RF communication ( CIU)

lPay by mobile payment

lM-PESA,Alipay,MTN,Airtel,etc.

PRODUCT INTRODUCTION

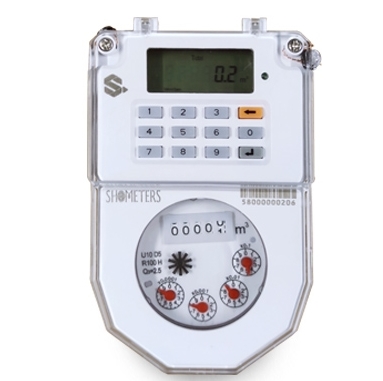

The keypad Prepaid Water Meters is an STS(Standard Transfer Specification) compliant,electronic valve controlled water meter. You are assured of continuously good metrology and revenue protection at the same time.

RF STS Prepayment Water Meter System consists of smart water meter and integrated keypad with RF module inside for AMR/AMI fuction.Automatic Meter Reading with/without valve control(AMR/AMI) function is also available,which could realize remote meter data collection&monitor;

It is compatible with both velocity and volumetric type water meter,which comply with OIMLR49.ISO4064.And conforms to STS standard protocol.

TECHNICAL INDEX AND SPECIFICATIONS

1.Nominal Values

2.Metrological parameters-Directive 2004/22/EC(MID)&EN 14154:2007

3. Dimensions and diagram

BASIC FUNCTIONALITY

Function	Details
Prepayment	STS Standard,recharge by input 20digits TOKEN.
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN.
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode.
Non-return valve	Non-return valve inside for preventing back-flow.
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event.
Step Tariff	Step Tariff can be set by inputting correspnding TOKEN.
Overdraft Collection	Non-Revenue water (Overdraft) can be collected day by day or month by month.
Communication	The meter is available with AMI system through GPRS or Bluetooth 4.0 on request.
Information Inquiry	Consumer could check the data like Credit Remain,Total Purchased and Total  Credit by input the short code.

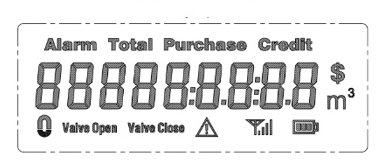

Liquid Crystal Display

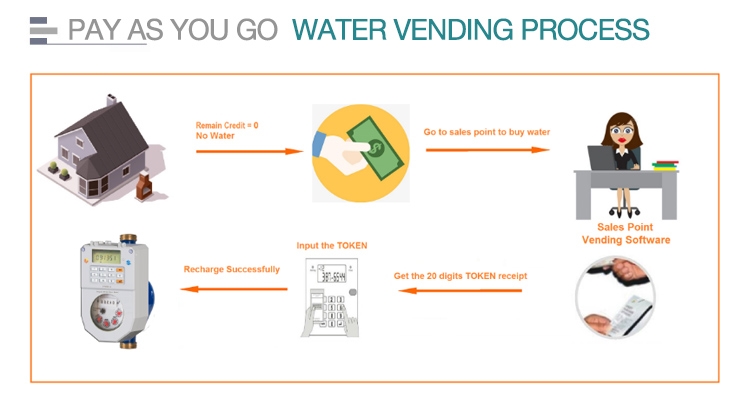

Water Purchase

(1) Please go to the local selling water business hall.

(2) To provide operator meter ID number ( lD numberprinted on the water meter ).

(3) Tell the operator how much you want to buy andprepay.

(4) On the receipt, you can get a printed TOKEN "20(Digits)"

You need a good solution for water metering---Catering all your needs.

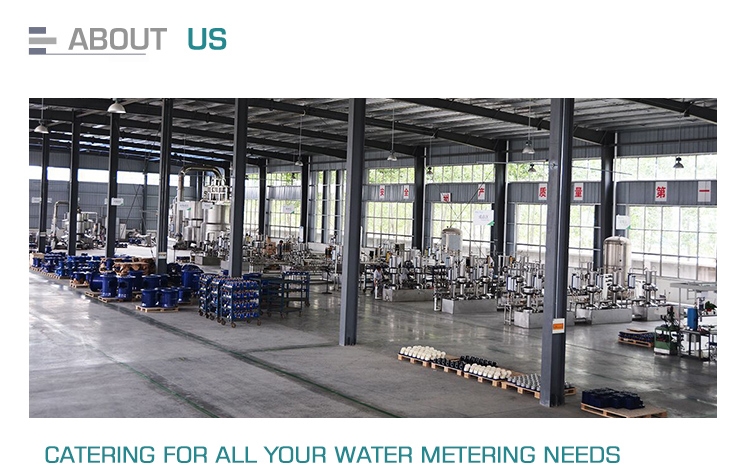

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SH-MECH Meters have already become one the main important exporter for water flow meters in China.
We will provide your product to your hand in timely manner and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection, strictly cost control and five star quality services, we believe that you will own a more solution on water metering.
