Its extruder, cylinder and screw rods are made of superior alloy steel, that have been nitrogen treated and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

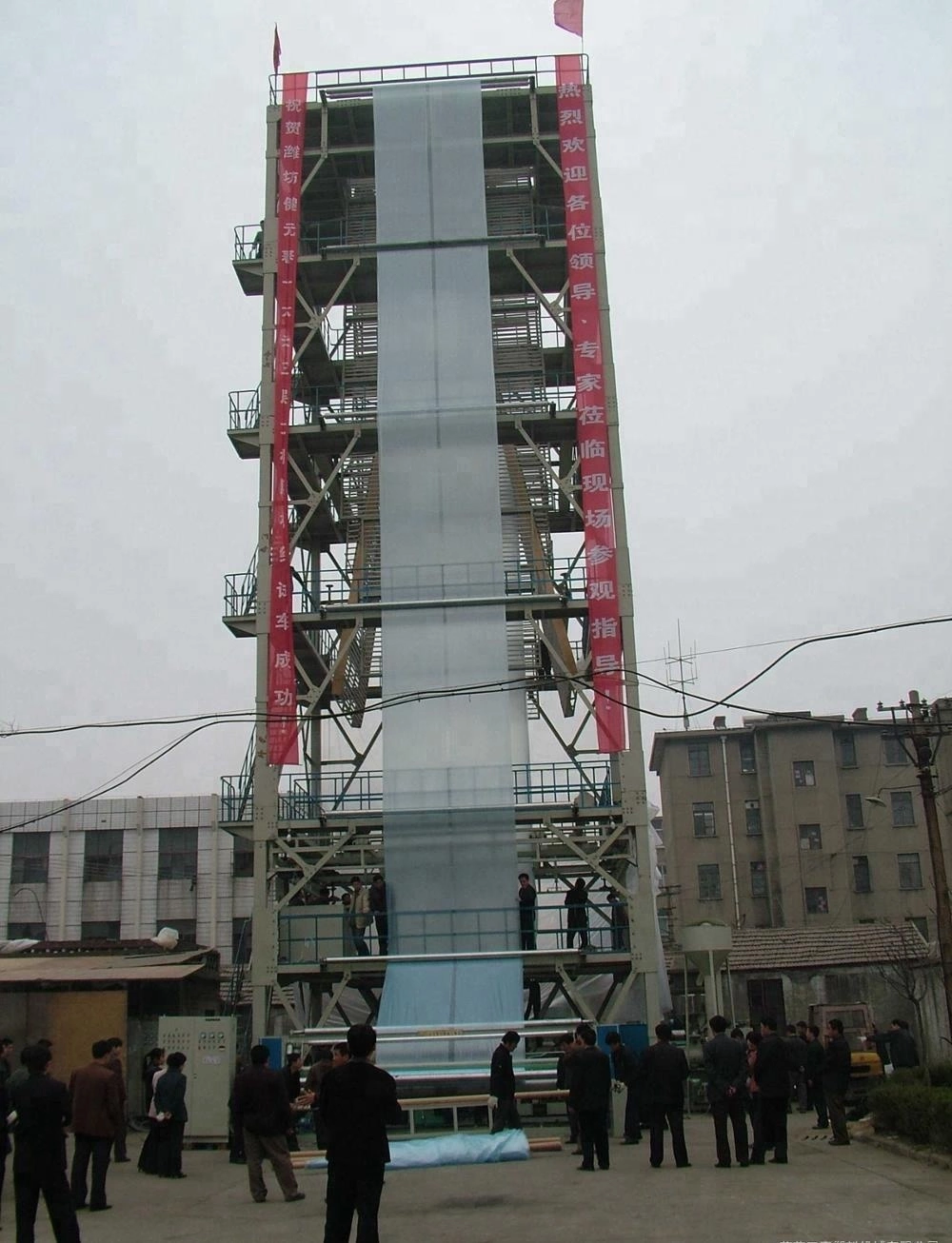

Agriculture film blowing machine | ||||
Model | MN-100/2500 | MN-120/3200 | MN-180/3500 | MN-200/4000 |
Film width | 3000-8000mm | 3000-12000mm | 3000-16000mm | 3500-24000mm |
Film thickness | 0.006-0.1mm | 0.006-0.1mm | 0.006-0.1mm | 0.006-0.1mm |
Max output | 200kg/h | 300kg/h | 600kg/h | 900kg/h |
According to different width,thickness of film, die size and raw material characteristics to change | ||||
Raw material | HDPE/LDPE/LLDPE | |||
Diameter of screw | Φ90，30/1 | Φ120,30/1 | Φ180.30/1 | Φ200,30/1 |
SACM 645 ,bimetallic ，five years guarantee | ||||
Main motor | 45kw | 110kw | 160kw | 180kw |
100% Original three-phase variable frequency motor Equipped with inverter control | ||||
Take up roller(mm) | 2500mm | 3200mm | 3500mm | 4000mm |
Weight | 2500kg | 2800kg | 3500kg | 4200kg |
Machine size | 9*5*9 | 12*5*11 | 15*5*22 | 16.8*8*22.4 |
1. Ceramic heater: Fast heating and save power cost
2 Simens motor and Inverter control
3 SCREW: SACM645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY
4 Special ambdoidal board 1set
5 Auto Ioader with dryer good for using recyle material 1set
Optional Device:
1.Automatic Hopper Loader with dryer
2.360°rotary die head
3.automatic back to back winder
4.Film Surface Treater
5.Oscillating Take Up Unit
5.IBC(Internal Bubble Cooling Computer Control System)
6.EPC(Edge Position Control)
7.Chiller
8.Heat Slitting Device
9.Gravimetric Dosing Unit
10.Thickness Measurement
11. Mechanics screen changer
12.Edge material recycling machine

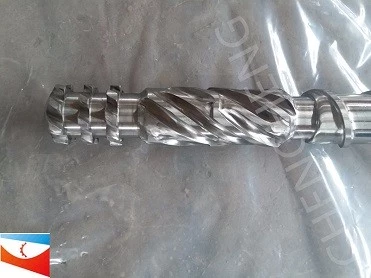

Screw: SACM645
SACM645 steel with hard with nitrogen with bimetallic treatment,5years warranty

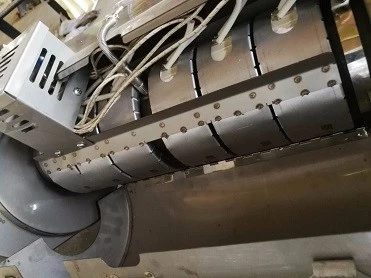

Heater: Ceramic heater
Advantage: Fast heating and save power cost

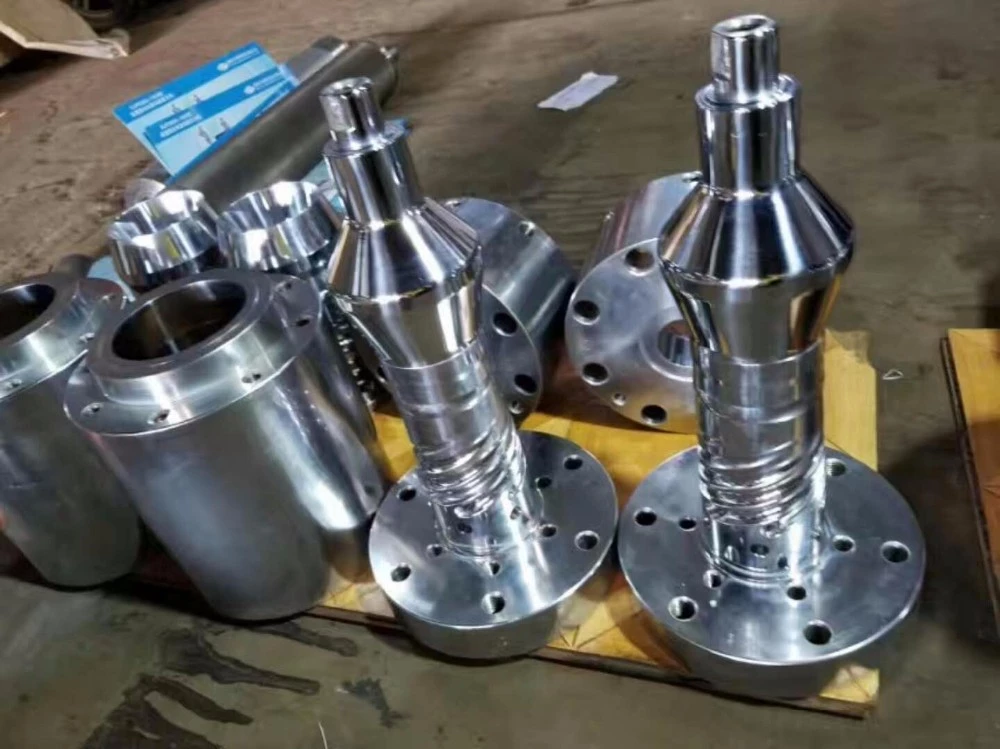

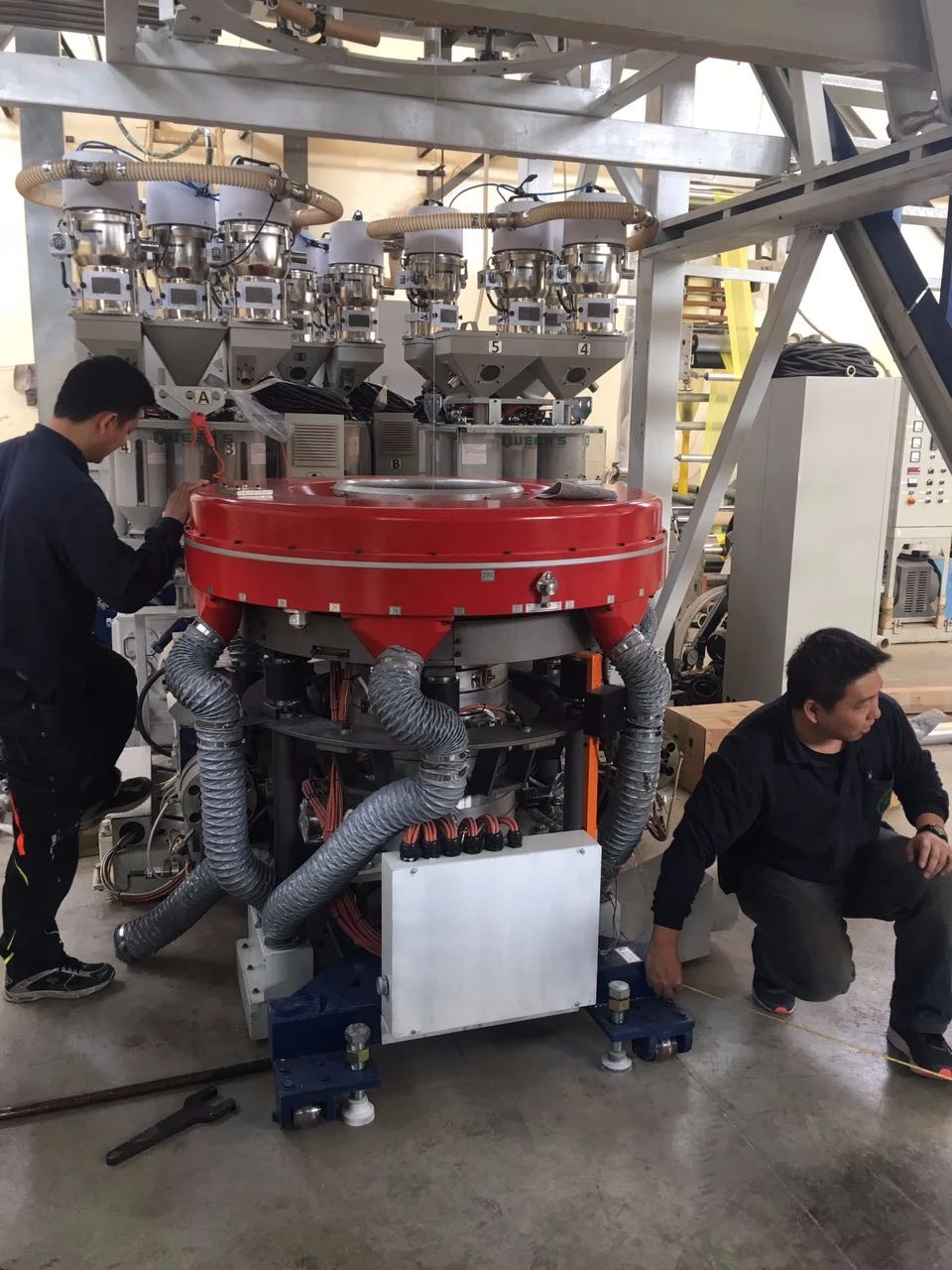

Name: Die head
Brand: Taiwan quality
High quality mould can make film thickness uniform

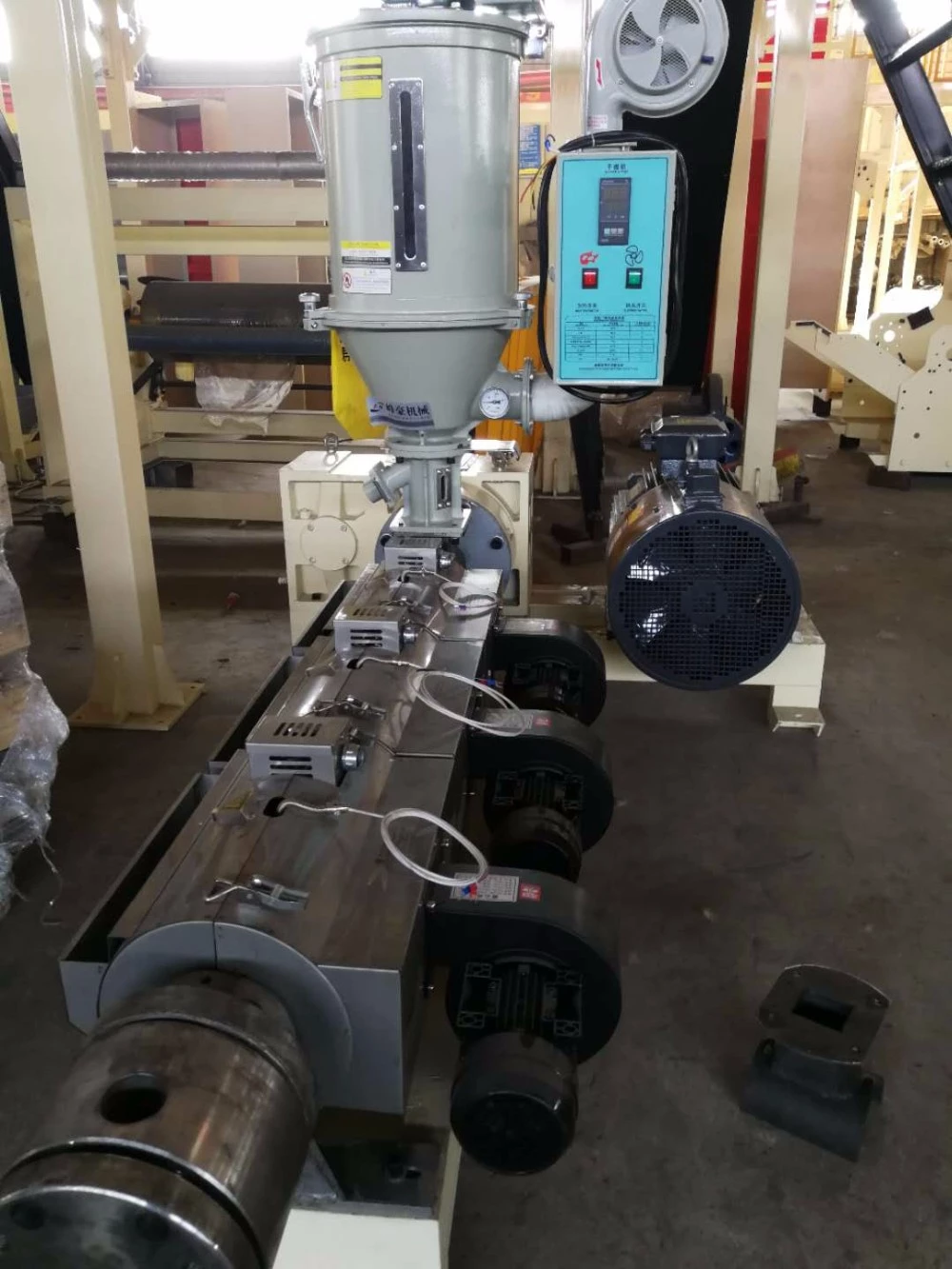

Name: auto loader with dryer
Original: China
* Inquiry and consulting support.
* Sample testing support.

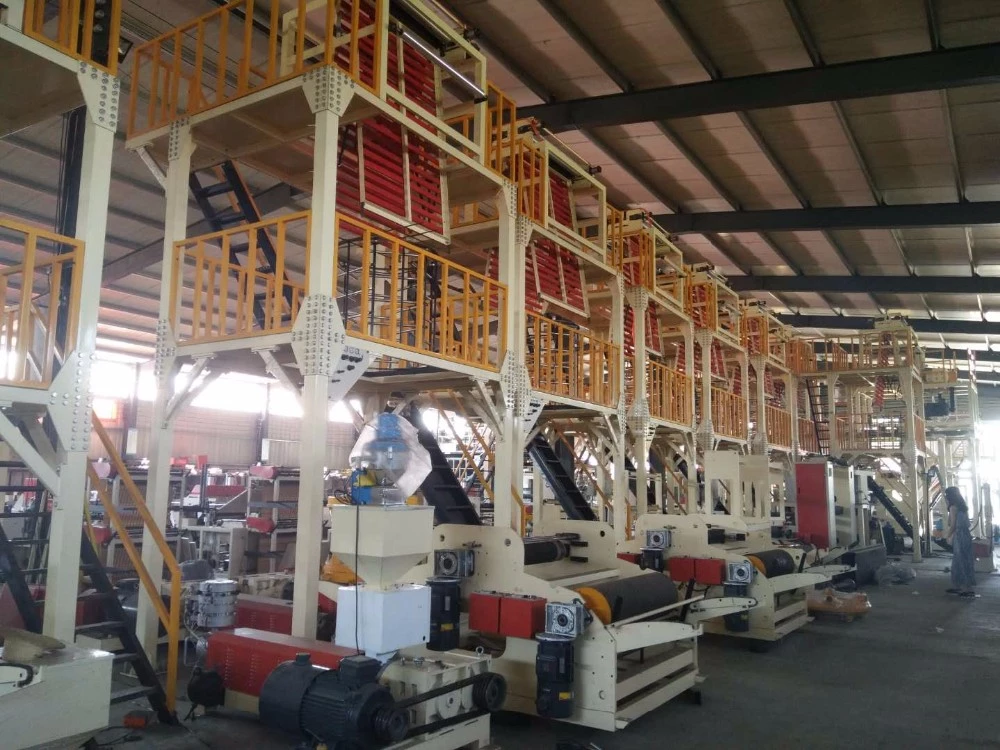

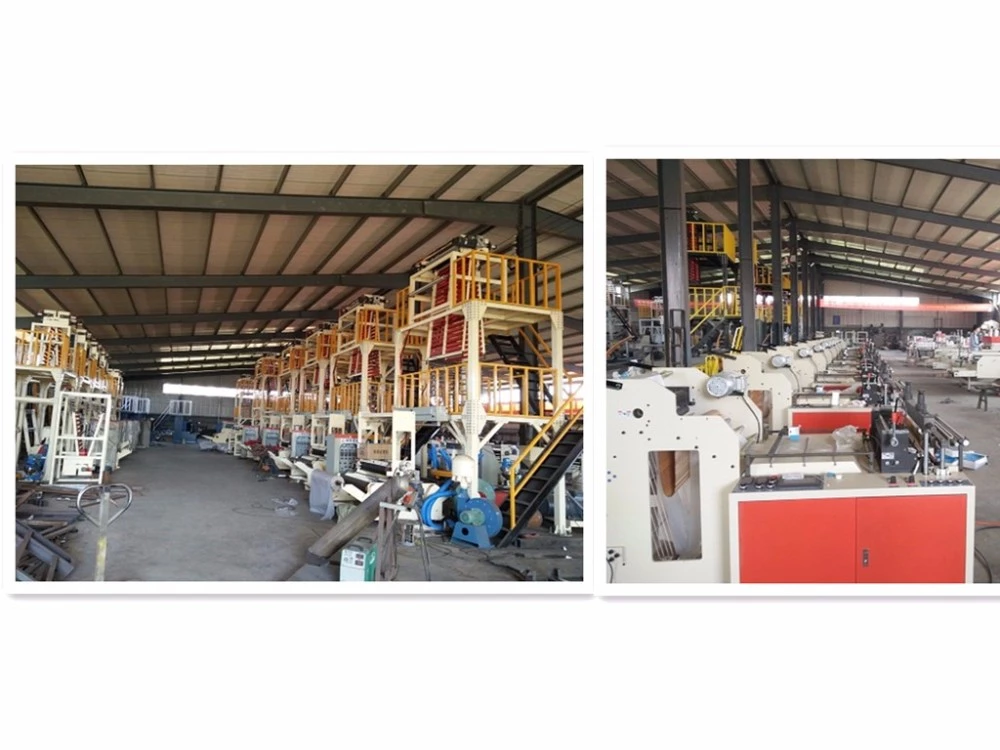

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

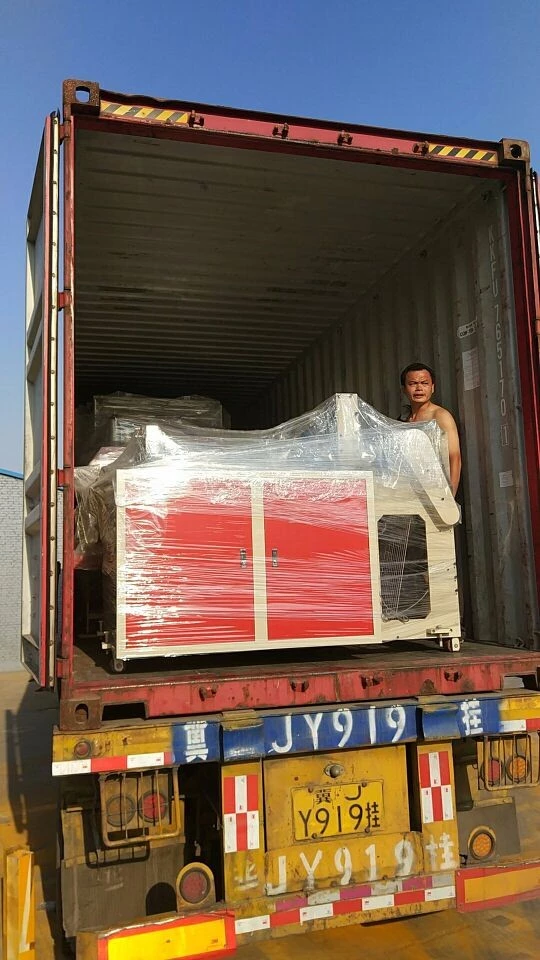

Packaging | |
Size | 40HQ |
Weight | 12 T |
Packaging Details | we will use pe film for packing or pack it according to customers special request. |
