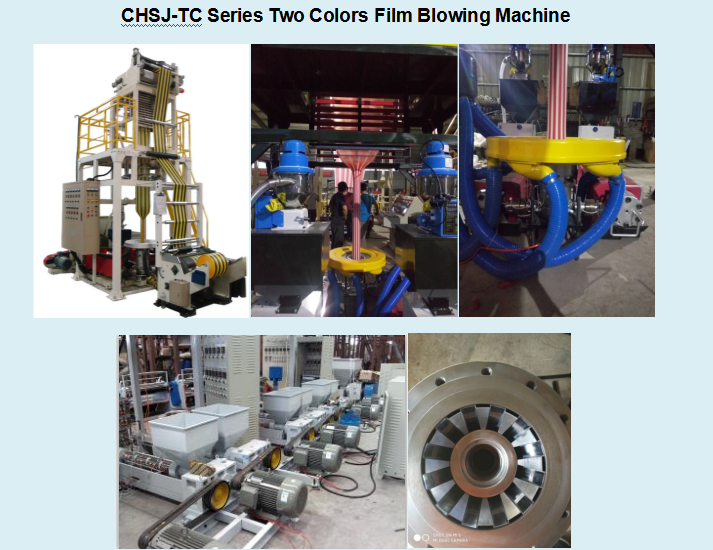

Product Description
Product paramenters
Model | TC-40/700 | TC-45/900 | TC-50/1200 | |||
Film width (mm) | 200-420mm | 250-600mm | 300-1000mm | |||
Film thickness | 0.006-0.04mm | 0.006-0.04mm | 0.006-0.04mm | |||
max output | 50kg/h | 55kg/h | 75kg/h | |||
Max Output depends on width, thickness of film, die size and raw material characteristics | ||||||
Raw material | HDPE/LDPE/LLDPE | |||||
Diameter of screw | Φ40×2,30/1 | Φ45×2,30/1 | Φ50×2,30/1 | |||
SACM 645 ,bimetallic ，five years guarantee | ||||||
Main motor | 11kw | 15kw | 18.5kw | |||
100% Original three-phase variable frequency motor, Equipped with inverter control | ||||||
Take up roller(mm) | 700mm | 900mm | 1200mm | |||
Weight | 2700kg | 3100kg | 3800kg | |||
Machine size | 5*2.1*4.3 | 5*2.2*4.8 | 6.5*3.2*5.8 | |||
Note: The above specifications, dimensions & design characteristics are subject to change without notice
Packing & Delivery
Certifications
