PP plastic film blowing machinery making for food bag

Name: PP plastic film blowing machinery making for food bag
Brand: Hebei Chengheng Plastic Machinery Technology Co., Ltd.
SKU: 20120446807

ID:20120446807

Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds

FOB Price:US$ 19600.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

PP film blowing machinepp blown extrusionblown film machinePP film extruder

Payment Method:

L/CD/PWestern UnionPaypalMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds

Trademark

Product Package

Specification

Place of Origin

Port

tianjin

Product Description

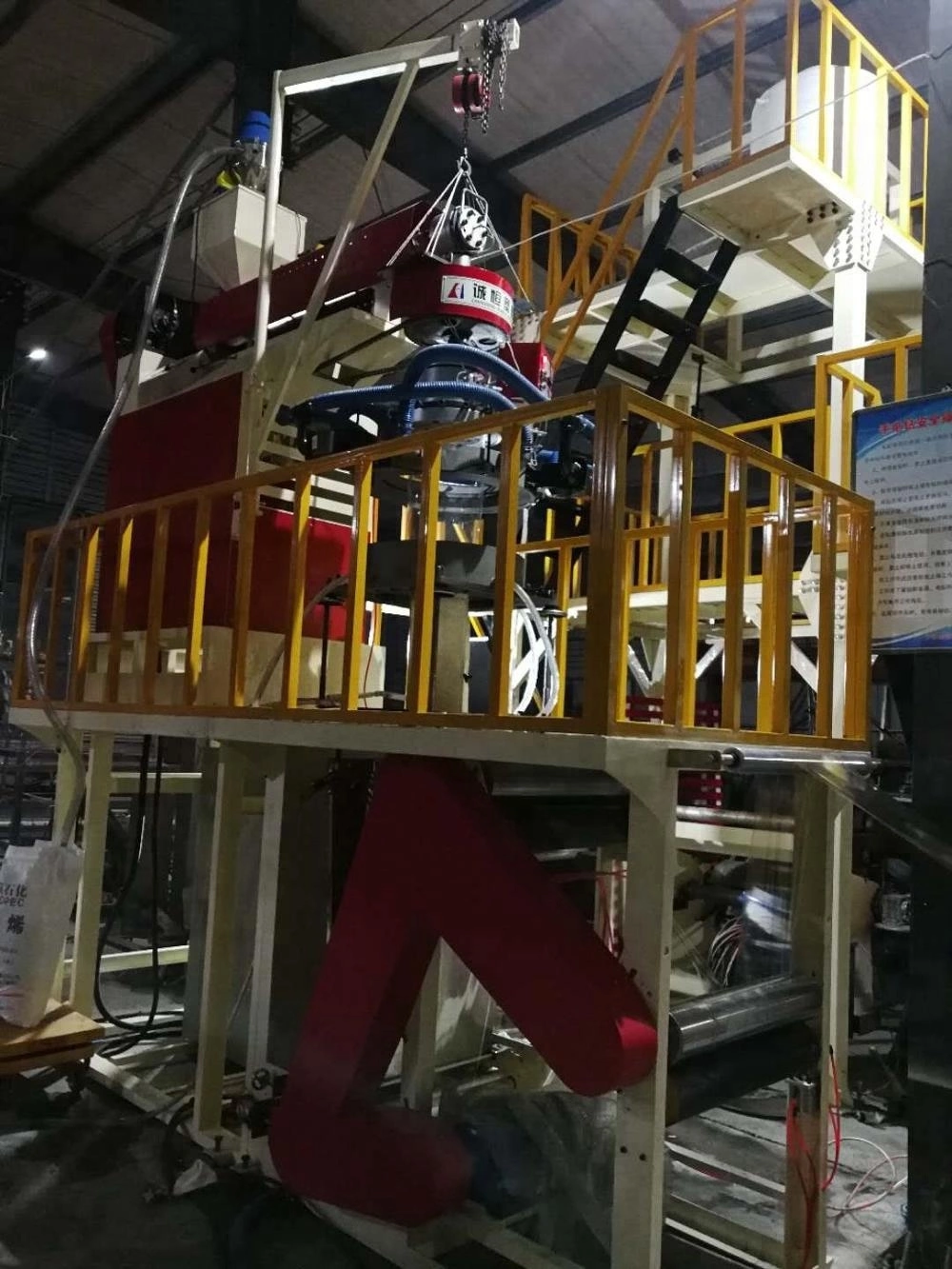

Product Application

The cylinder and screw rods of extruder of this type are all made from high-quality alloy steel through nitriding and precision machining, so as to ensure optimal hardness and corrosion resistance. The extruder is lifted to 3 meters according to the technological requirements, and the machine unit adopts a lower blowing method. The winding device adopts the torque motor, and can keep suitable tension, orderly winding and convenient roll replacement. The polypropylene film blowing machine unit with rotary machine head is used to blow polypropylene (PP) films as well as low-density and high-density polyethylene (LDPE, HDPE) films. The films can be widely applied in packages of food, apparel, textiles, commodities, industrial products and the like.

SPECIFICATIONS FOR PP FILM BLOWING MACHINE
model	PA-55/800	PA-65/1000	PA-75/1200	PA-75/1400
Film width	200-650mm	300-850mm	400-1050mm	400-1250mm
Film thickness	0.002-0.05mm	0.002-0.06mm	0.004-0.08mm	0.004-0.08mm
Max output	50kg/h	75kg/h	95kg/h	110kg/h
Max output	According to different width,thickness of film, die size and raw material characteristics to change
Raw material	PP/LDPE/LLDPE
Diameter of screw	Φ55,30/1	Φ65,30/1	Φ75,30/1	Φ75,30/1
Diameter of screw	SACM 645 ,bimetallic ，five years guarantee
Main motor	22kw	30kw	37kw	45KW
Main motor	100% Original three-phase variable frequency motor Equipped with inverter control
Take up roller(mm)	800mm	1000mm	1200mm	100--1400mm
Weight	2500kg	3200kg	3800kg	4200kg
Machine size	3.52.13.5	4.22.54	4.52.54.3	4.834.7

Main Features

1. Ceramic heater: Fast heating and save power cost

2 Simens motor and Inverter control

3 SCREW: SACM645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY

4 Special ambdoidal board 1set

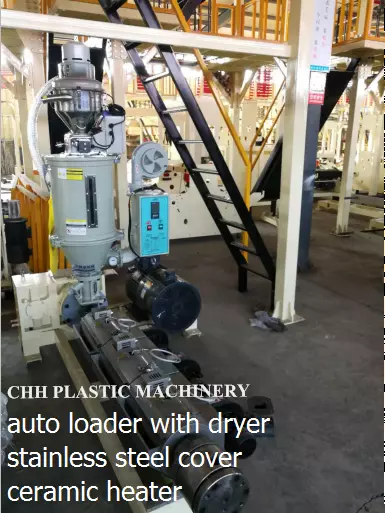

5 Auto Ioader with dryer good for using recyle material 1set

6 Corona treatment 1 set

Optional Device:

1.Automatic Hopper Loader with dryer

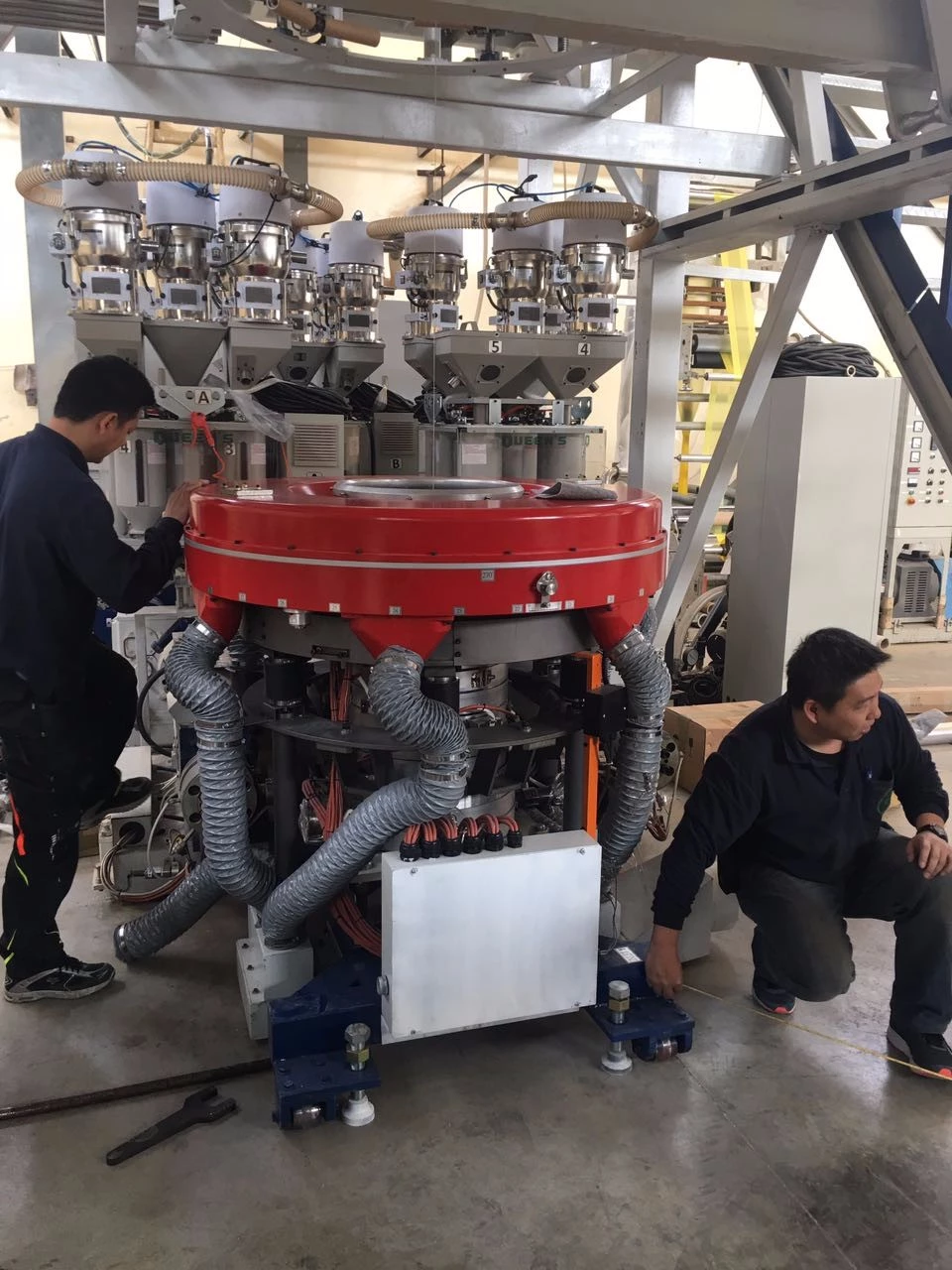

2.360°rotary die head

3.automatic back to back winder

4.Film Surface Treater

5.Oscillating Take Up Unit

5.IBC(Internal Bubble Cooling Computer Control System)

6.EPC(Edge Position Control)

7.Chiller

8.Heat Slitting Device

9.Gravimetric Dosing Unit

10.Thickness Measurement

11. Mechanics screen changer

12.Edge material recycling machine

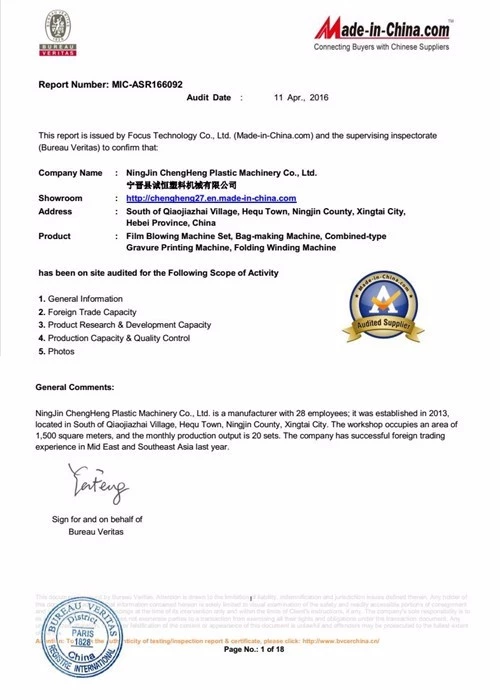

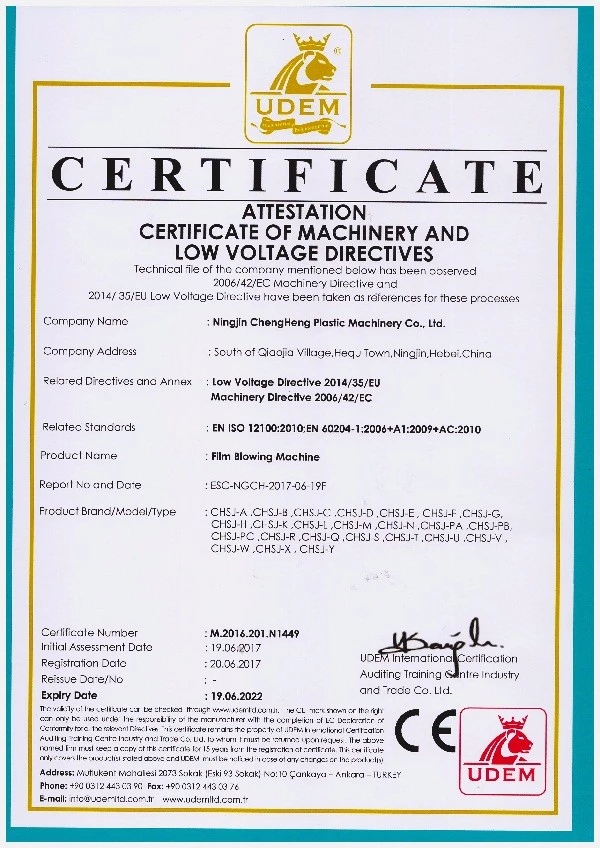

Certifications

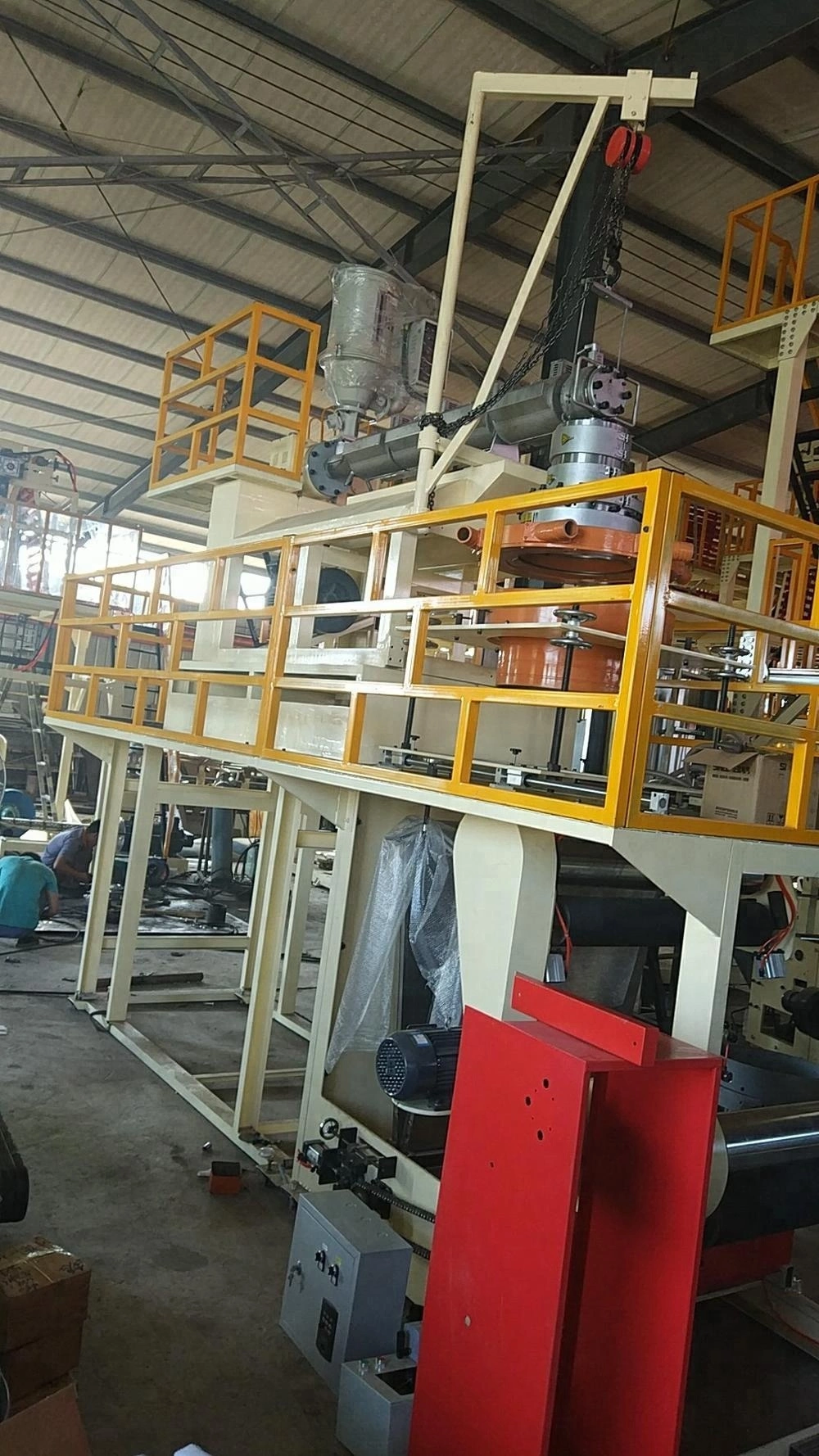

Detailed Images

Machine Parts

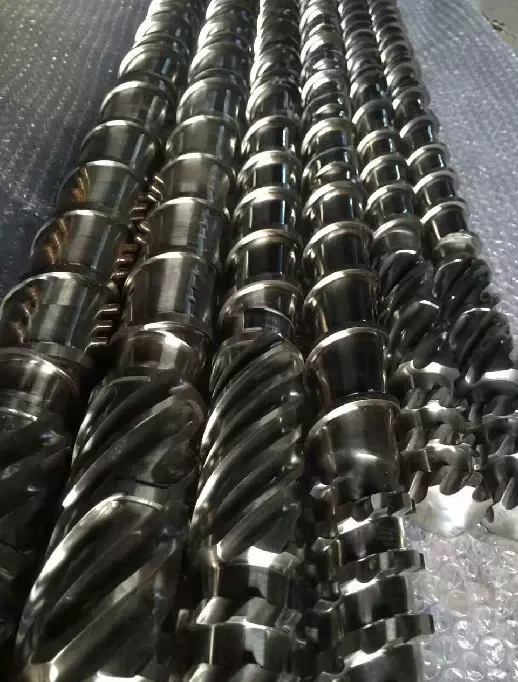

Name: screw

Material: SACM 645 stell

with hard and with nitrogen( bimetallic) 5year quality warranty

will not reduce your output after using recycle material

Main Features

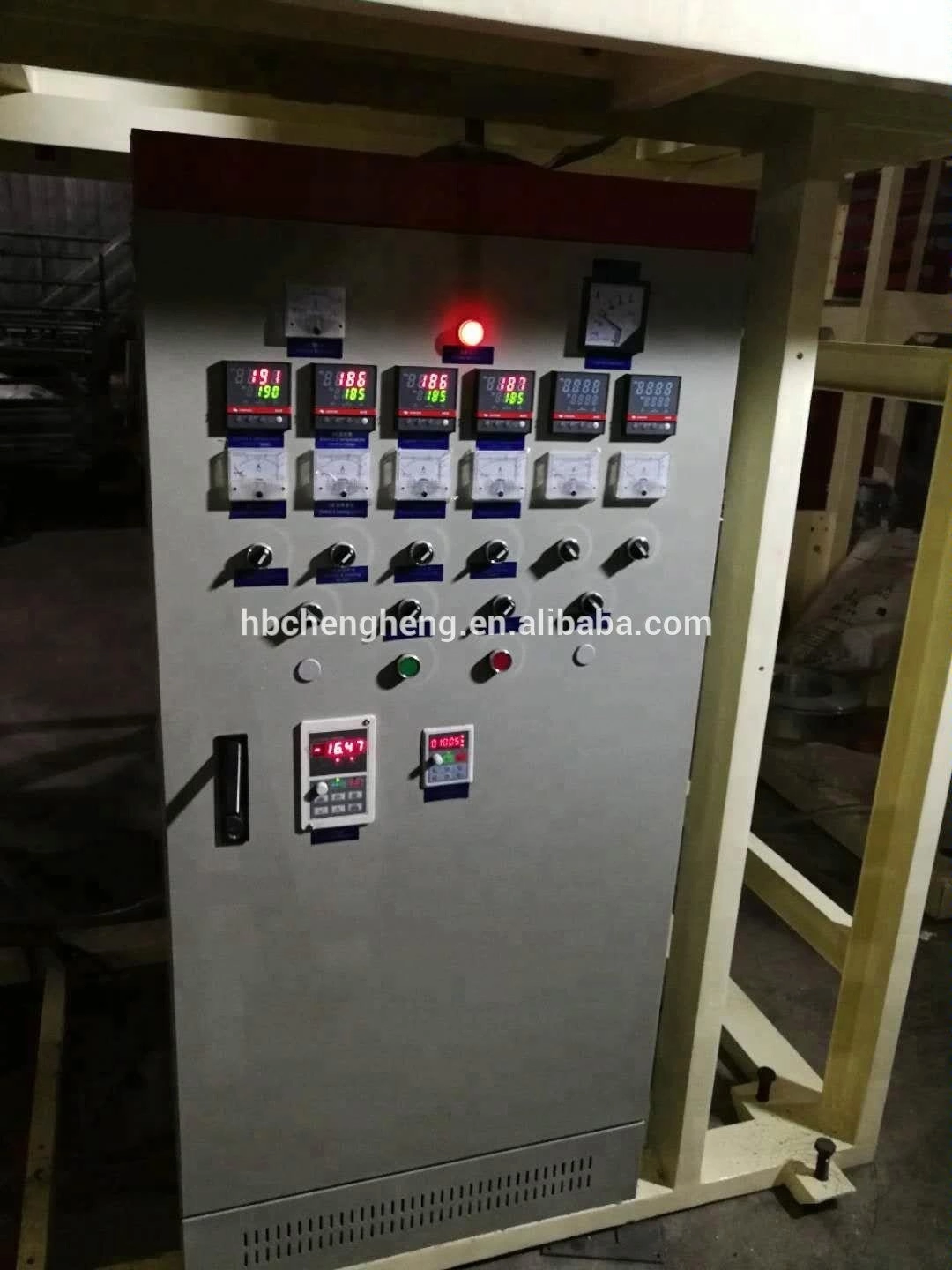

Name: electric cabinet
Brand:chengheng
Original: CHINA
Electric parts use brand such as Fotek and Chint and Schaider

Machine Parts

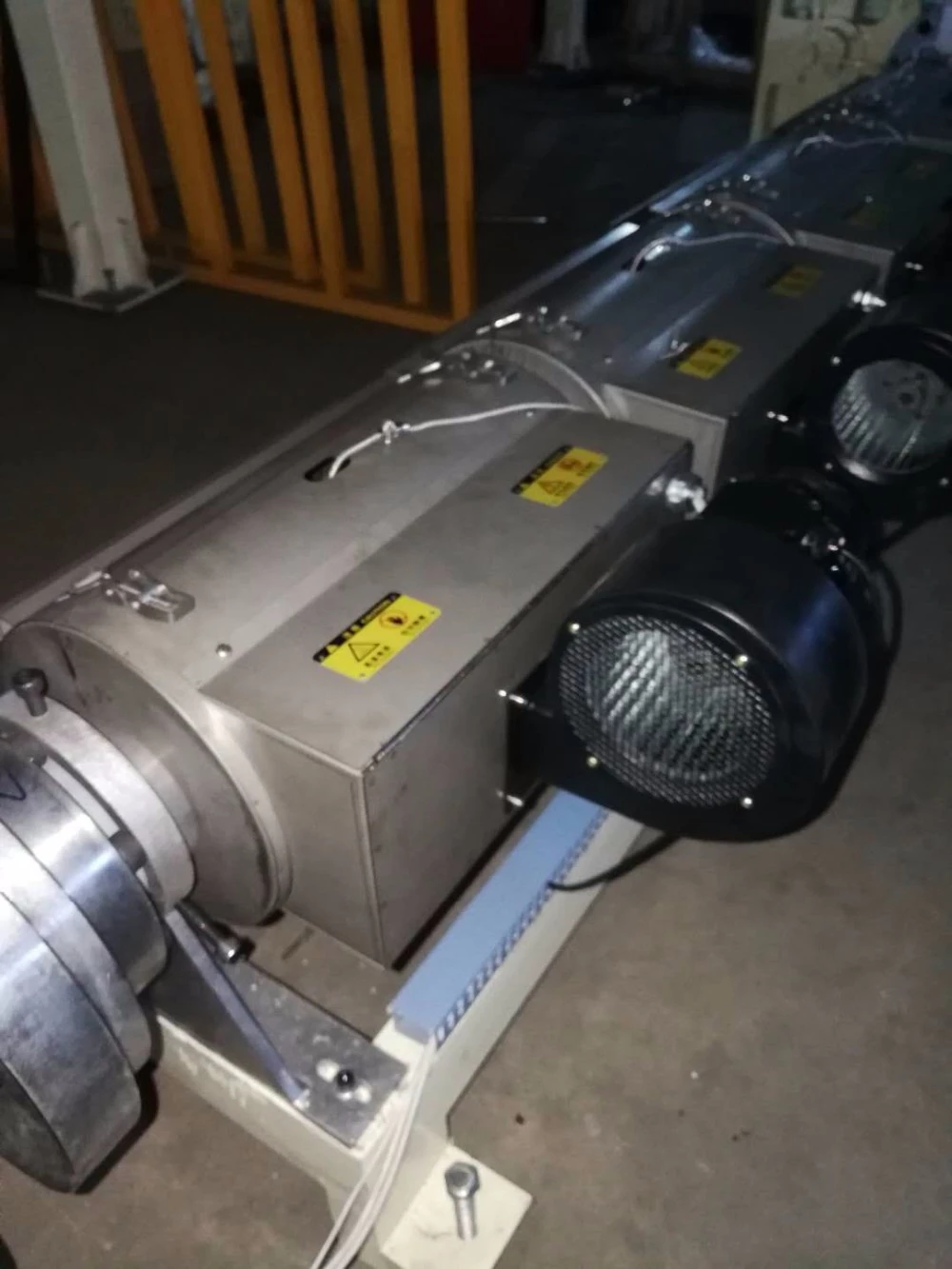

Name: Ceramic heating
Brand:
Original: china
1, the heat transfer is fast, the heat is uniform and the work is stable.
2, the temperature does not leak, can save electricity, the hood is not hot with hands, work safety.
3. The power of the product is high. The power of the ceramic bar through wire is 0.5~1.5 times higher than that of the ordinary one.
