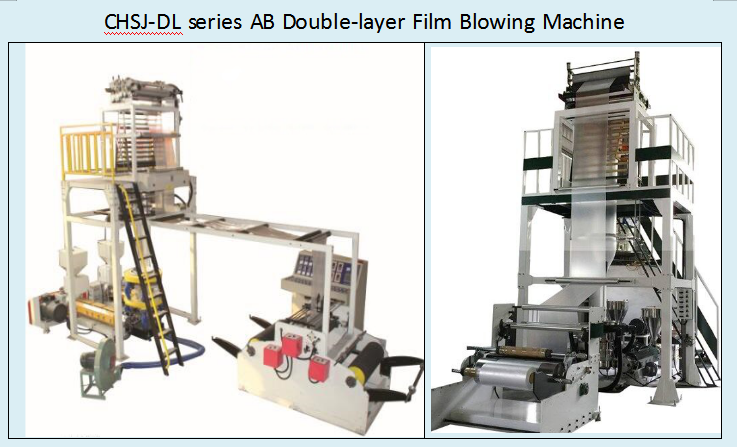

AB Double-layer Film Blowing Machine

Model型号

□DL/50-45/900

 □DL/55-50/1200

 □DL/65-55/1400

Film width (mm)

□250-800mm

□500-1100mm

 □500-1300mm

Film thickness

0.01-0.15mm

0.01-0.15mm

0.01-0.15mm

 max output

□125kg/h

□150kg/h

 □175kg/h

Max output depends on the width/thickness of film, the die size and raw material.

Raw material

HDPE/LDPE/LLDPE

HDPE/LDPE/LLDPE

HDPE/LDPE/LLDPE

Diameter of screw

  □Φ50/45,30/1

□Φ55/50,30/1

□Φ65/55,30/1

SACM 645 ,bimetallic，five years guarantee

Main motor

□15kw

 □22kw

□30kw

100% Original three-phase variable frequency motor, Equipped with inverter control

Take up roller(mm)width

□900mm

 □1200mm

 □1400mm

Weight

□3200kg

 □4200kg

  □4800kg

Machine size

 □6.5*3*5.5

□6.5*3.8*6

□6.8*4*6.2
