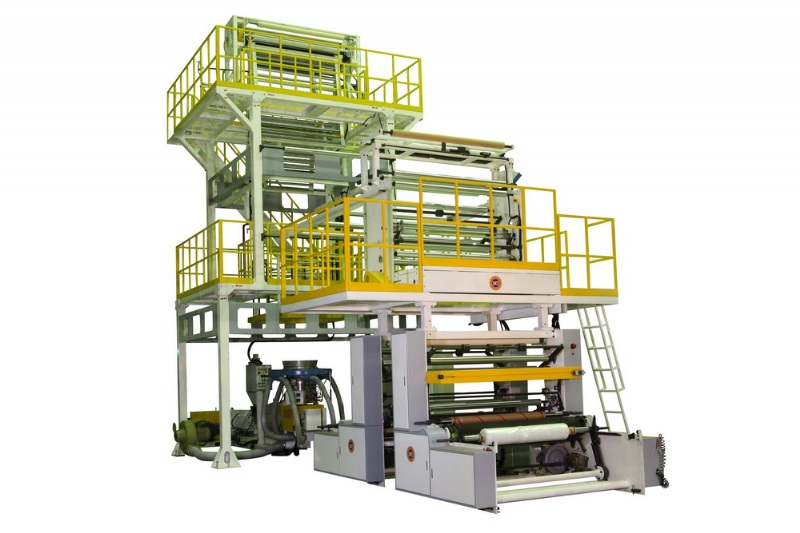

Model

□D-55/1200   □D-65/1400    □D-75/1600

Film width (mm)

□300-1000mm  □350-1200mm  □500-1400mm

Film thickness

0.006-0.04mm

 max output

  □65kg/h   □85kg/h  □110kg/h
According to different width,thickness of film, die size and raw material characteristics to change

suitable material

HDPE/LDPE/LLDPE/EVA/MDPE

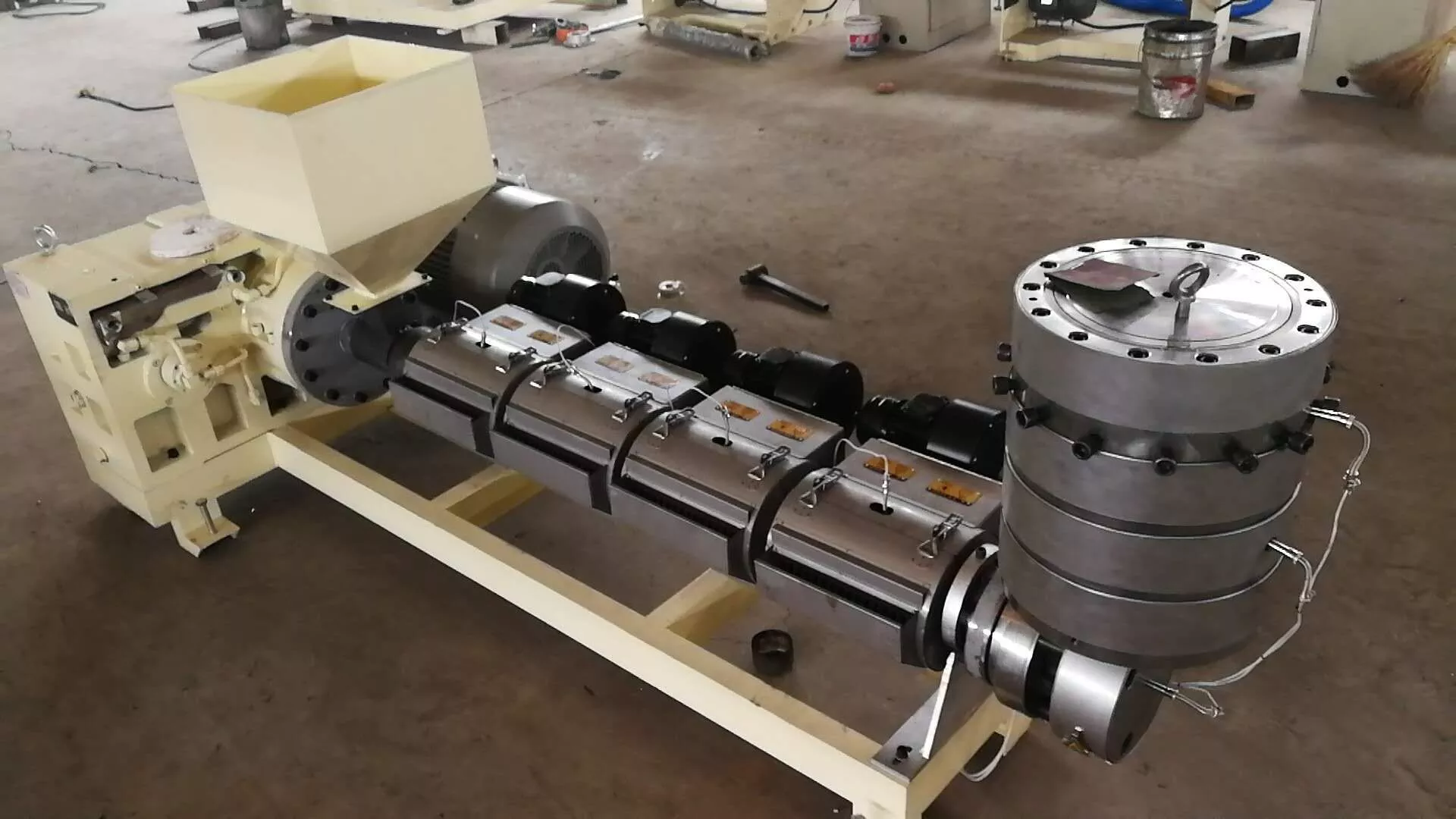

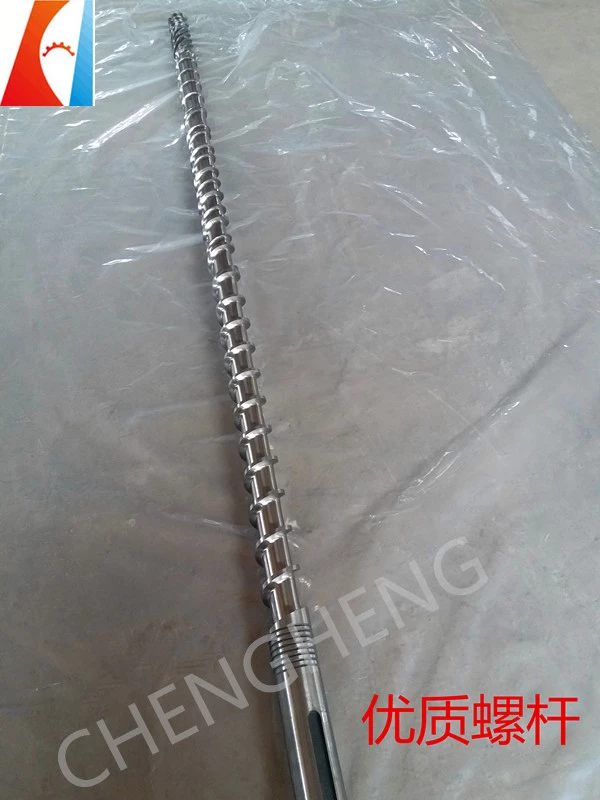

Diameter of screw

□Φ55，30/1 □Φ65,30/1  □Φ75,30/1

SACM 645 ,bimetallic ，five years guarantee

Main motor

   □22kw □30kw  □37kw

100% Original three-phase variable frequency motor

Equipped with inverter control

Take up roller(mm)

□1200mm   □1400mm   □1600mm

Weight(kg)

  □3800kg  □4500kg  □6200kg

Overall dimension（L*W*H）m

 □6.2*3.3*5 □6.5*3.5*5.8 □6.8*3.57*6.5
