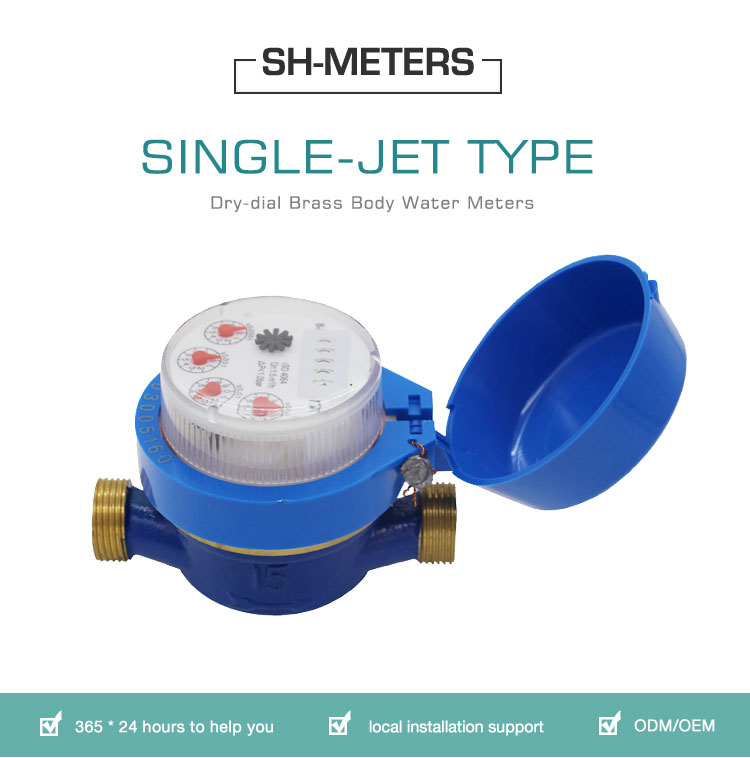

SH meter company main produce: 1/2 inch Brass water meter single Jet water meter

Type:

Brass body     15mm - 40mm (1/2"-1-1/2")

Plastic body   15mm - 20mm (1/2"-3/4")

APPLICATION:

 --Measuring the total volume of cold portable water passing through the pipeline.

Feature:

--Single-jet, dry-dial, free rotating register, small in size and light in weight;

--Magnetic drive, Resistance to exterior magnet interference,

--keep the reading clear in a long term service;

Working condition

--Water temperature:   0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)

--Water pressure   : ≤1.0Mpa

Maximum permissible error

 (1) in the lower zone from qmininclusive up to but excluding qt is ±5%.

 (2) in the upper zone from qtinclusive up to and including qs is ±2%:

     Hot water meter  ±3%

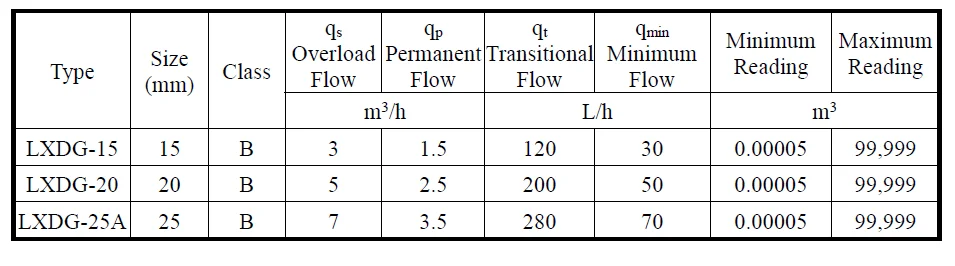

 Main Technical Specifications

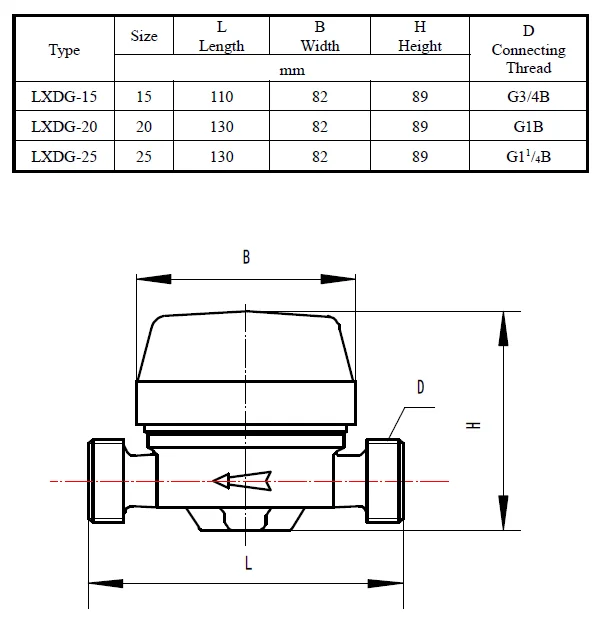

Dimensions

Packaging Detail: Pallets without fumigation or wooden box

Delivery Detail: 30-45 days after received deposit payment

You need a good solution for water metering---Catering all your needs.

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SHMETERS have already become one the main important exporter for water flow meters in China.
We will provide your product to your hand in timely manner and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection, strictly cost control and five star quality services, we believe that you will own a more solution on water metering.
