Scaffold Frame for Construction Supporting and Decoration Works

Scaffold frame for construction supporting and decoration works

Scaffolding Frame is one of the most popular scaffolding systems world-wide used in construction and decoration work. Castors are available as per request.

Very few components: frame, cross brace, joint pins, plank; some time also includes: jack base, cater wheels.

All the components are standard. It is very easy to assemble and dismantle, which save much time and labor cost.

When used as movable working platform, caster wheels are always required at the bottom, especially for indoor painting or decoration work; When used as supporting system, jack base and U head are always required to adjust the working height, especially for slab concrete or bridges constructions.

Various finishing: painting, powder coating, galvanization, etc.

Proper surface treatment is to protect frames against rust or corrosion, making the frame scaffolding durable long life span.

Advantages:
1. Very few components: H frame, cross brace, joint pins, plank; some time also includes: jack base, cater wheels.
2. As all the components are standard, it is very easy to assemble and dismantle, which save much time on site.
3. When used as movable working platform, caster wheels are always required at the bottom, especially for indoor painting or decoration work; When used as supporting system, jack base and U head are always required to adjust the working height, especially for slab concrete or bridges constructions.
4. Various finishing are available: painting, powder coating, galvanization, etc. Proper surface treatment is to protect frames against rust or corrosion, making the frame scaffolding durable long life span.
5. Besides H frame and ladder frame, we can also produce as per your specifications. OEM is available.

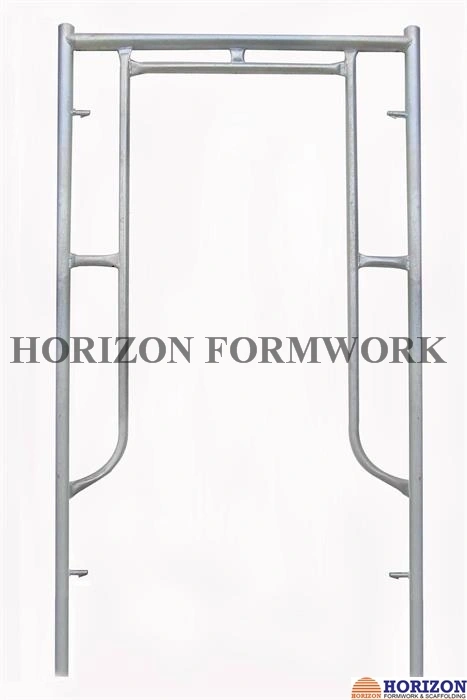

Main frames

Frame Scaffolding	W x H (mm)	Main Frame size(mm)
	1219 x 1930 1219 x 1700 1219 x 1524 914 x 1930 914 x 1700 914 x 1524	42(43) x 2.5mm, 2.2mm, 2.0mm, 1.8mm

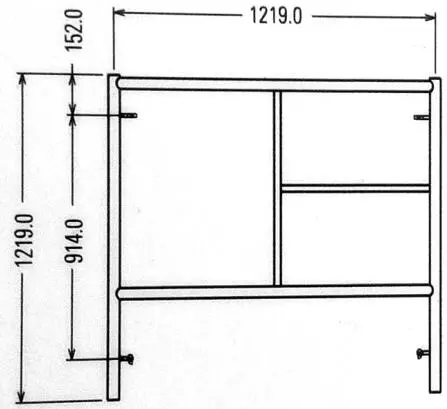

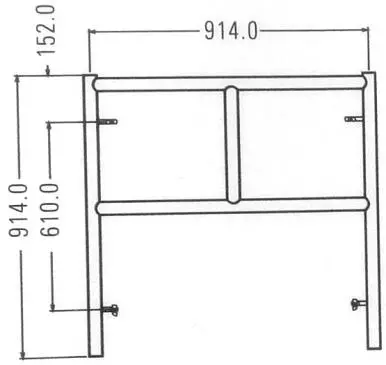

	1219 x 1219 1219 x 914 914 x 914	42(43) x 2.5mm, 2.2mm, 2.0mm, 1.8mm

Cross Diagonal Brace

Frame Height(mm)	B (mm)	A (mm)	C (mm)	Weight (Kg)
1930, 1700, 1524	1219	1829	2198	3.17
1930, 1700, 1524	1219	1524	1952	2.81
1930, 1700, 1524	1219	1219	1724	2.49
1930, 1700, 1524	1219	1800	2174	3.13
1219	914	1829	2045	2.95
1219	914	1524	1777	2.56
1219	914	1219	1524	2.2
914	610	1829	1928	2.78
914	610	1524	1642	2.37
914	610	1219	1363	1.97
914	610	1800	1900	2.74

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
