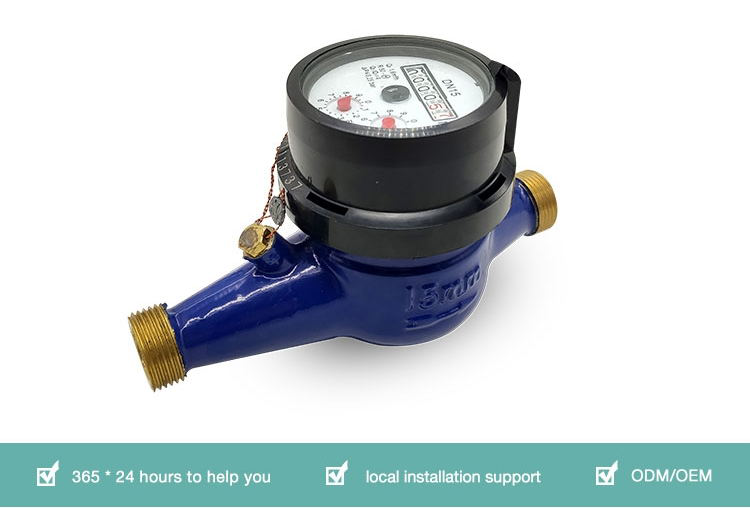

Measuring the volume of cold (hot) water passing through the pipeline.

water meter is used for home or apartment.

Features

All the plastic raw material is 100% new material, not any second-hand material.

High working pressure can afford PN16.

Magnetic Drive, Lower transmission resistance.

Magnetic shield, for external magnetic field protection.

Sealed dry register ensures long time clear reading.

External regulating device.

Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers

With high accuracy

Optional Features

Register: Dry type.

Accuracy: R=80 ; 100;class b.

Size: 15~25mm.

Non return valve.

Reed switch option.

Thread end type: BSP.

Cold / hot water.

Reed switch option.

Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display.

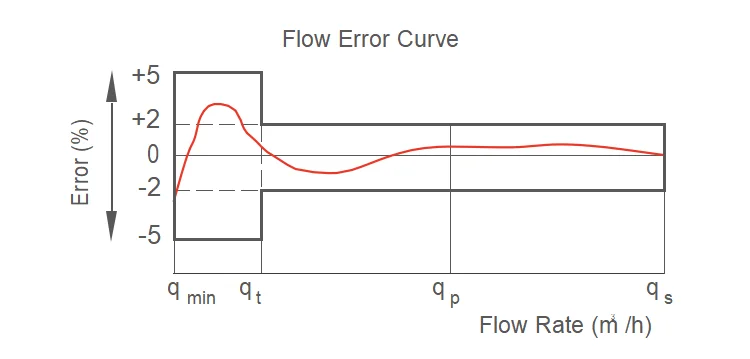

Maximum Permissible Error

In the lower zone from qmin inclusive up to but excluding qt is ±5%.

In the upper zone from qt inclusive up to and including qs is ±2%.

Standards Compliance

Technical data conform to international standard ISO 4064.

Working Conditions

Water temperature: 0.1℃~50℃ for cold water meter.

Water pressure : ≤1.6Mpa (16 bar).

Overall Dimension And Weight

Technical Data

Pulse Output Option

Warranty

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS.

You need a good solution for water metering---Catering all your needs.

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SHMETERS have already become one the main important exporter for water flow meters in China.
We will provide your product to your hand in timely manner and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection, strictly cost control and five star quality services, we believe that you will own a more solution on water metering.
