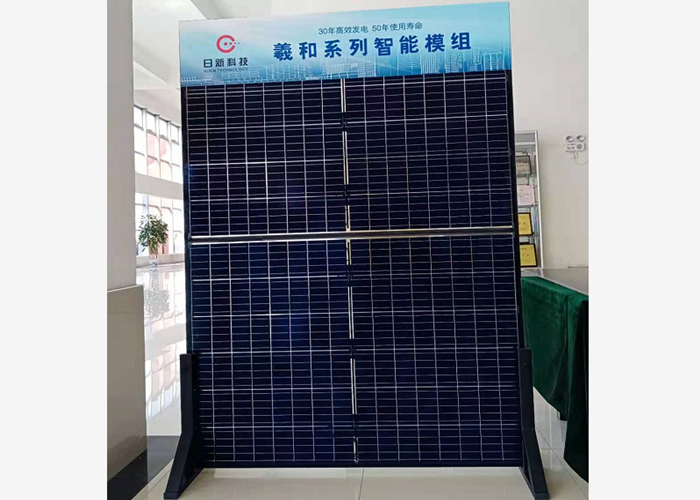

High Efficiency 235W BIPV Double Glass Poly Crystalline Solar Panels For House
Main Features
1. Solar power generation, supply clean energy for buildings.
2. Completely according with national standard for building materials.
3. Higher strength, wind resistance, strike resistance, safer.
4. Sound insulation, heat insulation, effectively resist outside environment intrusion.
5. Intelligentized & humanized, regulating light, comfortable and convenient.
6. Provide a new aesthetics decoration effect for modern construction.
7. Integrating multiple functions, energy conservation and cost reduction.
8.Half-cut cell technology, increase power ouput, reduce cracking risks, impove module reliability.
Performance parameters
| High Efficiency BIPV Double Glass Poly Crystalline Solar Panels For House | ||
| Model | MDN235 | |
Electrical parameters | maximum power Pm (Wp) * | 235 |
| power tolerance (%) | ± 5 | |
| maximum power voltage Vmp (V) * | 25.5 | |
| maximum power current Imp (A) * | 9.2 | |
| open circuit voltage Voc (V) * | 30.25 | |
| short circuit current Isc (A) * | 10.18 | |
| maximum system voltage (V) | 1500 | |
| Efficiency(%) | 17.4 | |
| working temperature (℃) | -40~85℃ | |
| temperature coefficient of Pm Tk (Pm) | -0.31%/K | |
| temperature coefficient of Voc Tk (Voc) | -0.41%/K | |
| temperature coefficient of Isc Tk (Isc) | +0.05%/K | |
Mechanical parameters | fault structure (mm) | 2mm tempered glass + 0.76PVB + poly cells + 0.76PVB + 2mm tempered glass |
| cable | 4mm2/1200mm | |
| product dimension | 1360mm*992mm*5mm | |
| product weight | 15kg | |
| wind loads resistance | 2.4KN/m2 | |
| Cells No. | 6*8*2 | |
Quality and Advantages :
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition
2. High efficient, high reliable solar cells ensure our product output stability
3. Full products certified with certificate ISO 9001:2008 and ISO 14001:2004
, CE , TUV, IEC/EN61215 IEC/EN61730
4. we offer 10 years product warranty ,25 years power linear warranty

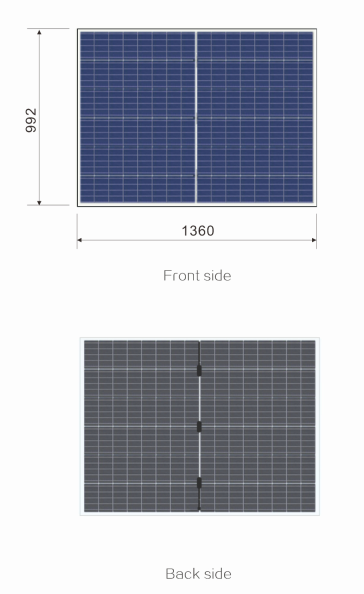

Drawing(mm)
Quality Warranty
30-year power output guarantee
50-year operation lifetime
