Business Type: Manufacturer
Main Products:Stick Noodle Production Line Fried Instant Noodle Production Line Non-Fried Instant Noodle Production Line Manual Noodle Production Line Fresh Noodle Production Line Vermicelli production line Spaghetti production line Macaroni pasta production line
ID:21042149601
Category: Manufacturing & Processing Machinery Food & Beverage Machinery
MOQ:1.00 Set(s)
PastaSpagetti Macaroni macaroni spaghetti machine elbow macaroni pasta machine short cut macaroni makingfull set macaroni productionitalian noodle making linemacaroni suppliers electric macaroni makerindustrial macaroni machine
L/CT/TWestern Union
SPECIFICATIONS FOR 14 TON PER 24 HOURS OF CAPACITY | |||
Early part | Raw Material Mixer | mixing power: 3KW mixing rev: 365turns/min mixing capacity: 40KG/time 5min/turn) | Size: 1000*500*800mm the surface touched with the water is Stainless Steel |

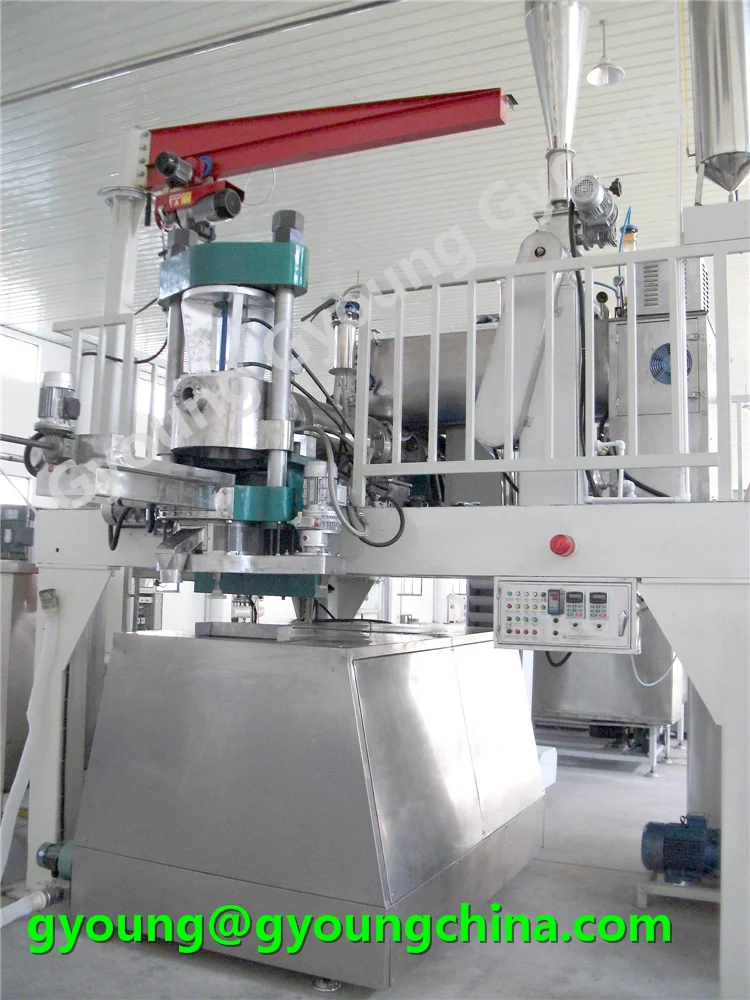

Extruder and Moulding Machine | Power: 54KW | Size: 3500*1050*1960mm The surface touched with flour is Stainless Steel | |
Cooling & Cutting Machine | Power: 1.1KW | Size: 2700X630X1020mm | |
Main part | Cooling Bed | Power: 0.24KW Production Capacity:40KG/time | Size:1360mm*1000mm*400mm |
Continuous Short cut pasta vibrating pre-drying conveyor | Main function: to avoid macaroni sticking together. In the meanwhile, the conveyor transfers the pieces to the pre-drying tunnel. | Material: stainless steel 304, carbon steel, etc. | |
Drying Bed | Heating Power: 15KW Production Capacity: 400-500KG/time | Size: 2950*1550*1000mm | |
End part | Continuous short cut pasta drying tunnel | Material: stainless steel 304, carbon steel, etc. | The inner temperature: 50℃-90℃(adjustable) The steam pressure: 0.03～0.05Mpa Drying time: 2 hours |
Production conveyor | Material: stainless steel 304, carbon steel, food grade rubber belt, etc. | Main function: to convey the dried macaroni to the auto-scale and packing system. | |
Electrical system | 1. Motors, decelerators and most spare parts are adopted the national well-known qualified products; 2. PLC control | 3. Frequency converter using Delta products; | |

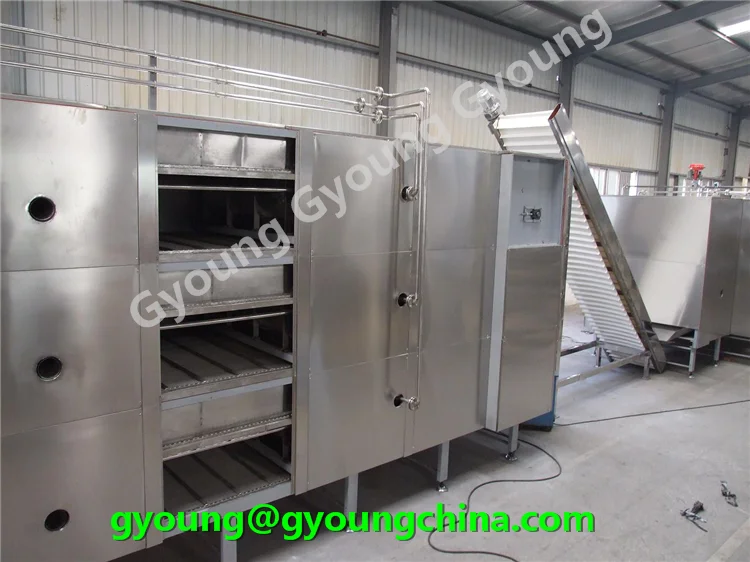

Name: Continuous short cut pasta pre-drying tunnel
Brand: G-young
Original: China
Adopts advanced technologies and is of high automation, safety and easy maintenance.
stainless steel 304, carbon steel, etc.
Adopts advanced technologies.
Material: stainless steel 304, carbon steel, etc.
The inner temperature:
50℃-90℃(adjustable)
The steam pressure:
0.03～0.05Mpa
Drying time: 2 hours
Name: Bucket Elevator
Brand: G-young
Original: China
Material: stainless steel 304, carbon steel, food grade plastic buckets, etc.
Main function:
Connect the pasta pre-drying tunnel and pasta drying tunnel.
