CPVC pipe fitting CPVC pipeCPVC Male AdaptorCPVC pipe fitting AdaptorDin CPVC pipe fittingASTM CPVC pipe fittingCPVC pipe for industrypvc pipeCPVC pipe fitting for industrySCH80 CPVC pipe
T/T

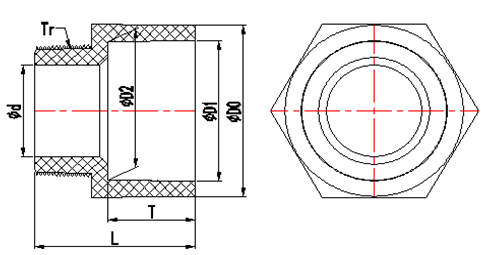

| Male Adaptor,PVC-C (DIN PN10) drawing | |||||||
| DN(De) | Diameter(mm) | ||||||
| D0 | D1 | D2 | d | T | L | Tr | |
| 15(20) | 26.80 | 20.30 | 19.95 | 11.30 | 16.50 | 35.00 | 1/2" |
| 20(25) | 32.50 | 25.30 | 24.95 | 16.10 | 19.00 | 38.50 | 3/4" |
| 25(32) | 40.30 | 32.30 | 31.90 | 21.40 | 22.50 | 44.50 | 1" |
| 32(40) | 49.50 | 40.35 | 39.90 | 28.80 | 26.50 | 51.00 | 1-1/4" |
| 40(50) | 61.60 | 50.35 | 49.90 | 32.50 | 31.50 | 56.50 | 1-1/2" |
| 50(63) | 77.00 | 63.40 | 62.90 | 41.30 | 38.00 | 69.40 | 2" |
| 65(75) | 90.40 | 75.40 | 74.90 | 55.80 | 44.00 | 79.90 | 2-1/2" |
| 80(90) | 106.50 | 90.50 | 89.90 | 67.30 | 51.50 | 91.50 | 3" |
| 100(110) | 126.90 | 110.60 | 109.90 | 91.60 | 61.50 | 108.00 | 4" |
| SCH 80 PVC Male Adaptor ,PVC,ASTM D 1785 SCH80 fittings | |||||||
| dn(*") | Size (mm) | ||||||
| D0 | D1 | D2 | d | T | L | Tr | |
| 1/2" | 29.55 | 21.54 | 21.23 | 11.30 | 23.22 | 41.50 | 1/2″ |
| 3/4" | 35.30 | 26.87 | 26.57 | 16.00 | 26.40 | 45.90 | 3/4″ |
| 1" | 43.66 | 33.66 | 33.27 | 21.35 | 29.57 | 51.50 | 1″ |
| 1-1/4" | 50.00 | 42.42 | 42.04 | 28.80 | 32.75 | 56.80 | 1-1/4″ |
| 1-1/2" | 59.85 | 48.56 | 48.11 | 32.50 | 35.93 | 61.50 | 1-1/2″ |
| 2" | 72.25 | 60.63 | 60.17 | 41.30 | 39.10 | 71.00 | 2″ |
| 2-1/2" | 88.00 | 73.38 | 72.85 | 55.80 | 45.45 | 82.00 | 2-1/2″ |
| 3" | 105.45 | 89.31 | 88.70 | 67.30 | 48.63 | 88.65 | 3″ |
| 4" | 132.00 | 114.76 | 114.07 | 91.60 | 58.15 | 104.65 | 4″ |
