Our PPH material is PPH-100,Beta- [β] -PP-H100 is a homopolymer polypropylene with a very uniform, dense structure and superior impact strength. The material's high crystallinity ensures excellent chemical resistance. The use of titanium dioxide pigment further enhances this characteristic. Beta-[β] -PP-H100 on the suitability of the transport medium, In other words, Beta- [β] -PP-H100's Chemical resistance.
We have two type of PPH pipe for your reference: PN10 and PN6.
Class:S5/SDR11(PN10)
Size:DIN8077
Length:5m

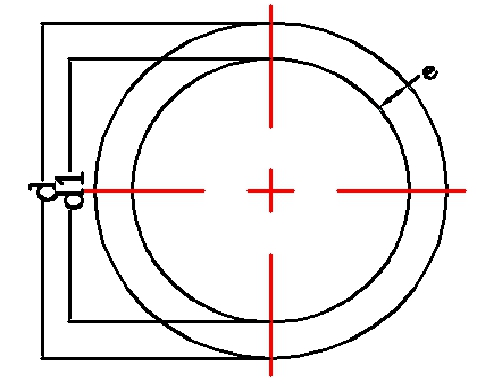

| d[mm] | weight[kg] | di[mm] | e[mm] | closest inch |
| 20 | 0.127 | 15.4 | 2.3 | 1/2 |
| 25 | 0.164 | 20.4 | 2.3 | 3/4 |
| 32 | 0.261 | 26.2 | 2.9 | 1 |
| 40 | 0.412 | 32.6 | 3.7 | 1 1/4 |
| 50 | 6.38 | 40.8 | 4.6 | 1 1/2 |
| 63 | 1.01 | 51.4 | 5.8 | 2 |
| 75 | 1.41 | 61.4 | 6.8 | 2 1/2 |
| 90 | 2.03 | 73.6 | 8.2 | 3 |
| 110 | 3.01 | 90 | 10 | 4 |
| 125 | 3.91 | 102.2 | 11.4 | 4 1/2 |
| 140 | 4.87 | 114.6 | 12.7 | 5 |
| 160 | 6.38 | 130.8 | 14.6 | 6 |
| 180 | 8.07 | 147.2 | 16.4 | 7 |
| 200 | 9.95 | 163.6 | 18.2 | 8 |
| 225 | 12.6 | 184 | 20.5 | 9 |
| 250 | 15.5 | 204.6 | 22.7 | 10 |
| 280 | 19.4 | 229.2 | 25.4 | 11 |
| 315 | 24.6 | 257.8 | 28.6 | 12 |
| 355 | 31.2 | 290.6 | 32.2 | 14 |
| 400 | 39.7 | 327.4 | 36.3 | 16 |
Class:S8/SDR17(PN6)
Size:DIN8077
Length:5m
| d[mm] | weight[kg] | di[mm] | e [mm] | closest inch |
| 40 | 0.273 | 35.4 | 2.3 | 1 1/4 |
| 50 | 0.422 | 44.2 | 2.9 | 1 1/2 |
| 63 | 0.659 | 55.8 | 3.6 | 2 |
| 75 | 0.935 | 66.4 | 4.3 | 2 1/2 |
| 90 | 1.33 | 79.8 | 5.1 | 3 |
| 110 | 1.99 | 97.4 | 6.3 | 4 |
| 125 | 2.55 | 110.8 | 7.1 | 4 1/2 |
| 140 | 3.2 | 124 | 8 | 5 |
| 160 | 4.17 | 141.8 | 9.1 | 6 |
| 180 | 5.25 | 159.6 | 10.2 | 7 |
| 200 | 6.5 | 177.2 | 11.4 | 8 |
| 225 | 8.19 | 199.4 | 12.8 | 9 |
| 250 | 10.1 | 221.6 | 14.2 | 10 |
| 280 | 12.6 | 248.2 | 15.9 | 11 |
| 315 | 16 | 279.2 | 17.9 | 12 |
| 355 | 20.3 | 314.8 | 20.1 | 14 |
| 400 | 25.7 | 354.6 | 22.7 | 16 |
